Phoenix SACC-MINFS-5CON-PG11/2,5-connector 1456271, connector, universal, 5-position, hole type straight head 7/8 "-16UNF, code: A, screw connection, coil material: zinc casting, nickel plating, Cable seal Pg11, cable outer diameter 8mm ... 10mm
| Assembly Instructions |
cold press head can be used or not used when connecting wires |
| Product Type |
Circular connector (cable side) |
| Sensor Type |
General |
| Bits |
5 |
| Outlet No. |
1 |
| Shielding |
None |
| coding |
A |
| cable outlet |
straight head |
| Pg screw connection |
Pg11 |
| insulation characteristics |
| Overvoltage Category |
III |
| pollution level |
3 |

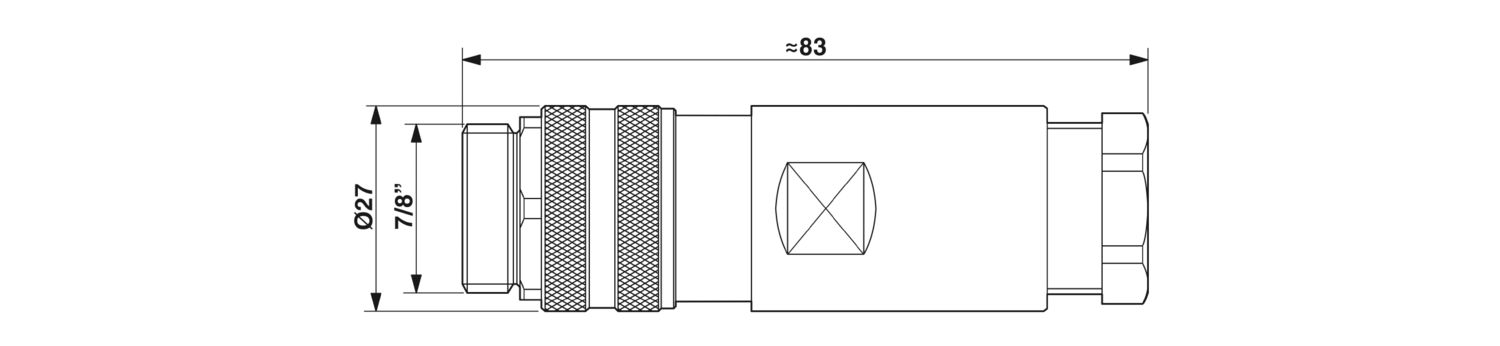

| Dimensional drawing |
 |
| width |
27mm |
| height |
27mm |
| length |
83mm |
| External dimensions |
| outside diameter |
8mm ... 10mm |
| shell |
| diameter shell |
27mm |
| flame retardant rating, according to UL 94 |
HB |
| Fixture body material |
PBT |
| Contact Material |
CuZn |
| Material Contact Surface |
Au |
| Contact Carrier Material |
PUR/PA 6.6 |
| screw connection material |
zinc cast, nickel plated |
| Wire Connection |
| Connection Mode |
screw connection |
| Wiring cross section |
0.34 mm² ... 2.5 mm² (without cold head) |
| 0.34 mm² ... 2.5 mm² (with cold press head) |
| 0.34 mm² ... 2.5 mm² (rigid) |
| Connectable Wire Cross Section AWG |
22 ... 16 (without cold pressing head) |
| 22 ... 16 (with cold head) |
| the stripping length of a single wire |
7mm |
| Tightening torque |
0.8 Nm (7/8 "plug-in connector) |
| 0.4 Nm (screw terminal block) |
| 1 Nm ... 1.4 Nm (compression nut) |
| Rated overvoltage |
4 kV |
| contact resistance |
≤ 5 mΩ |
| insulation resistance |
≥ 100 MΩ |
| Rated voltage UN |
300V AC |
| 300V DC |
| Rated current IN |
9 A |
| Mechanical parameters |
| Insertion/unplugging cycle |
≥ 100 |
| connection 1 |
| Socket Design |
hole type |
| socket |
straight head |
| socket thread type |
7/8 "-16UNF |
| coding |
A |
| Signal Type/Classification |
General |
| Stripping Length of a Single Wire |
7mm |
