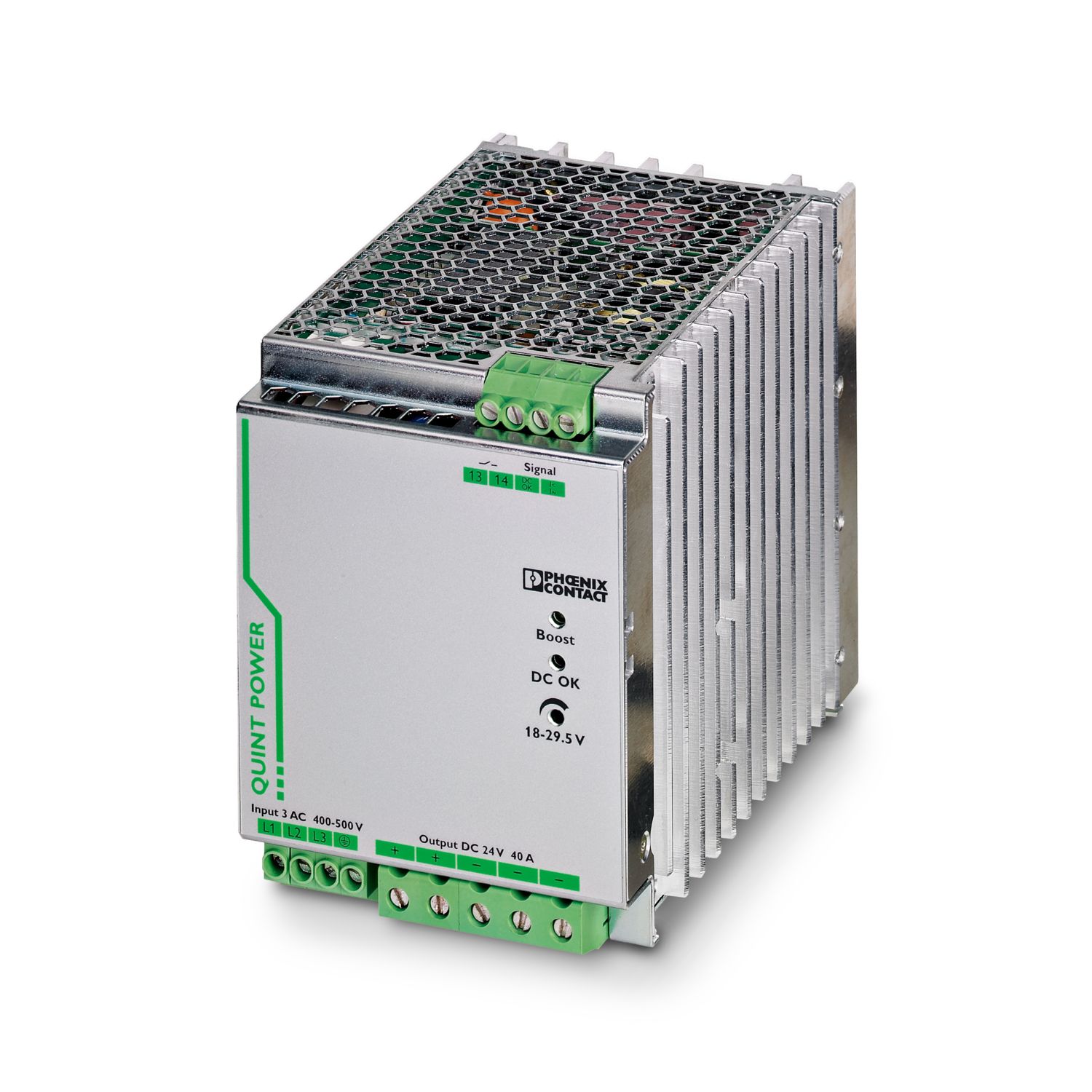

Phoenix QUINT-PS/3AC/24DC/40-power supply 2866802, primary switching power supply QUINT POWER, screw connection, DIN rail installation, SFB Technology (Selective Fuse Breaking), input: 3 phases, output: 24V DC/40 A
| AC operation |
| Rated input voltage range |
3x 400V AC ... 500V AC |
| Input Voltage Range |
3x 400V AC ... 500V AC -20 % ... +15% |
| Supply Voltage |
AC/DC |
| Impulse current |
< 15 A (at 25°C) |
| impulse current integral (I2t) |
< 1 A2s |
| Surge current limit |
15 A |
| AC frequency range |
45Hz ... 65Hz |
| DC frequency range |
0Hz |
| grid buffer time |
> 25 ms (400V AC) |
| > 35 ms (500V AC) |
| power consumption |
3x 2.1 A (400V AC) |
| 3x 1.7 A (500V AC) |
| Rated power consumption |
1342 VA |
| protection circuit |
transient surge protection; varistor, gas discharge tube |
| power factor (cos phi) |
0.76 |
| Typical Response Time |
< 0.5 s |
| Allowable Spare Fuses |
B6 B10 B16 AC: |
| Allowed DC Spare Fuses |
DC: Connect a suitable fuse |
| recommend use |
6 A ... 20 A (characteristics B, C, D, K or similar) |
| PE discharge current |
< 3.5 mA |
| DC operation |
| Rated input voltage range |
500V DC ... 600V DC |
| Input Voltage Range |
500V DC ... 600V DC -10 % ... +33 % (mid-point earthed) |
| power consumption |
2.2 A (500V DC) |
| 1.9 A (600V DC) |
| recommend use |
1x 6 A ≥ 1000V DC (10 x 38 mm, 30 kA L/R = 2 ms) |
| efficiency |
94% typical (400V AC) |
| output characteristics |
U/ I |
| Rated output voltage |
24V DC ±1% |
| output voltage (USet) setting range |
18V DC ... 29.5V DC (> 24V DC, stable capacity limit) |
| Rated output current (IN) |
40 A |
| POWER BOOST (IBoost) |
45 A (-25°C ... 40°C constant, UOUT= 24V DC) |
| Static Boost (IStat.Boost) |
45 A |
| selective fusing (ISFB) |
215 A (12 ms) |
| Type of thermal magnetic circuit breaker |
B2 / B4 / B6 / B10 / B16 / B25 / C2 / C4 / C6 / C13 |
| Attenuation |
60°C ... 70°C (2.5 %/K) |
| feedback voltage resistance |
≤ 35V DC |
| output |
≤ 35V DC |
| control deviation |
<1% (load change, static 10%... 90%) |
| <3% (load change, dynamic 10%... 90%) |
| < 0.1 % (input voltage variation is ± 10 %) |
| residual wave |
< 40 mVSS(rated value) |
| Short-circuit protection |
is |
| output power |
960W |
| 1080W |
| peak switching voltage rated load |
< 5 mVSS(rated, 20MHz) |
| maximum no-load power consumption |
18W |
| Maximum rated load power loss |
63W |
| rise time |
< 0.15 s (UOUT(10%... 90%)) |
| Concurrent |
Yes, for redundancy and increased capacity |
| Concatenation |
is |
| signal: DC OK active |
| Output Description |
UOUT>0.9xUN: High Signal |
| Switching voltage range |
18V DC ... 24V DC |
| output voltage |
+24V DC |
| Maximum starting current |
≤ 20 mA (short-circuit protection) |
| Continuous load current |
≤ 20 mA |
| signal: DC OK floating point |
| Output Description |
relay contacts, UOUT>0.9xUN: contact attraction |
| maximum switching voltage |
30V AC/DC |
| 24V DC |
| Maximum starting current |
0.5 A |
| 1 A |
| Continuous load current |
≤ 1 A |
| signal: POWER BOOST, active |
| Output Description |
IOUTN: High signal |
| Switching voltage range |
18V DC ... 24V DC |
| output voltage |
+24V DC |
| Maximum starting current |
≤ 20 mA (short-circuit protection) |
| Continuous load current |
≤ 20 mA |
