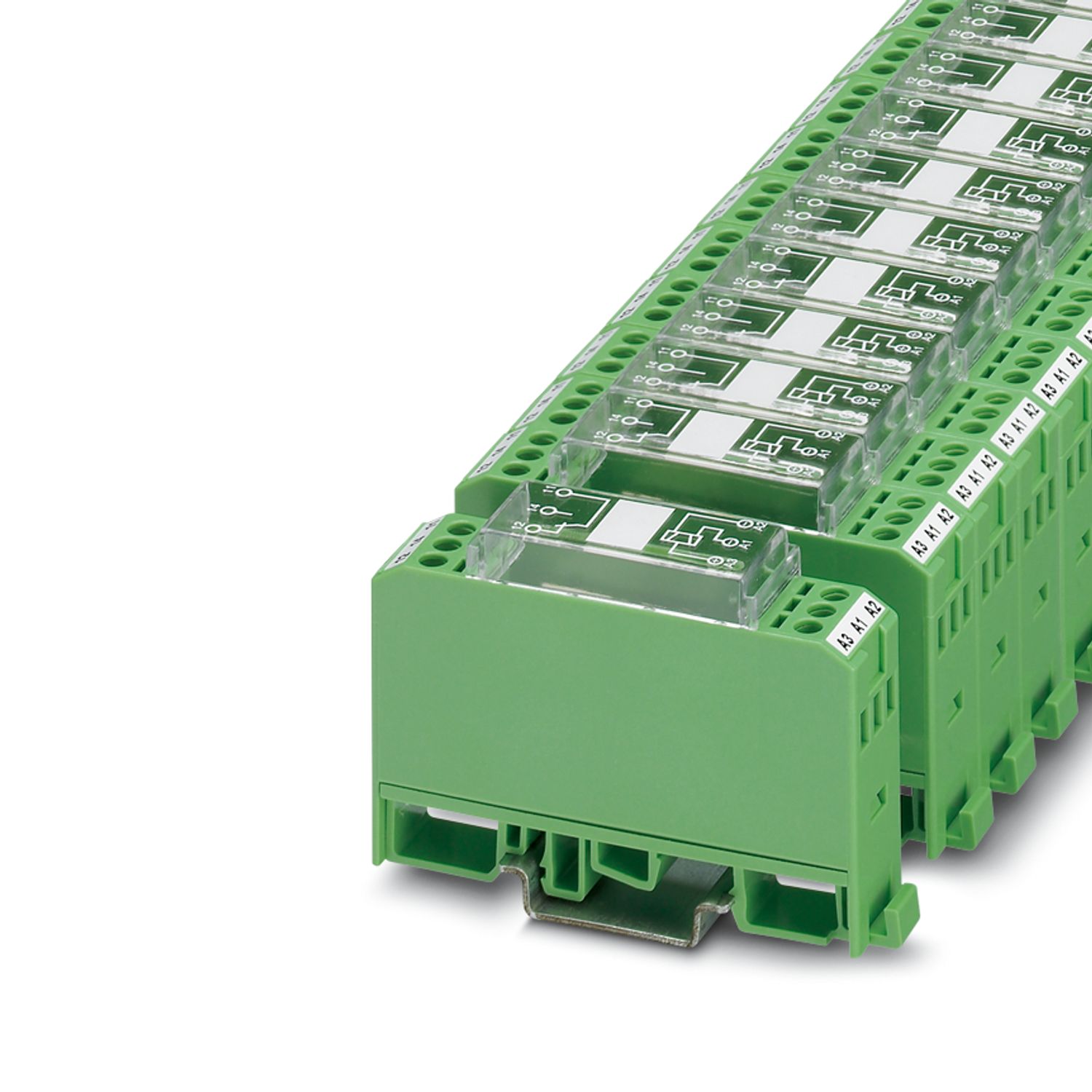

Phoenix EMG 17-REL/SG-B 48/21/P-relay module 2946654, relay module, with welded remanence micro switch relay, with forward switch diode wiring, contact (AgSnO): small to large Load, 1 PDT,48V DC input voltage
Use Restrictions
EMC Description
EMC: Class A products, see the manufacturer's declaration in the download area
Product Type
Relay Module
Product Series
EMG
Application
General
Mode of operation
100% operating factor
mechanical life
about 107Switch Times
insulation characteristics: electrical clearance and creepage distance between power supply circuits
insulation
safety isolation, reinforced insulation
Overvoltage Category
III
pollution level
2
insulation characteristics
Overvoltage Category
III
pollution level
2
Data Management Status
Last data maintenance date
29.10.2024
rated conditions
0.41W
test voltage (coil/contact)
4 kVrms(50Hz,1 min, coil/contact)
Electrical clearance and creepage distance between power supply circuits
Rated insulation voltage
250V AC
Rated overvoltage
4 kV
coil side
Rated input voltage UN
48V DC
Input Voltage Range
38.4V DC ... 52.8V DC (20 °C)
drives and functions
bistability
drive (polarity)
polarization
UN
Typical 8.5 mA
Typical Response Time
5 ms
Typical release time
5 ms
Pulse Time Range
30 ms ... 5 s
coil voltage
24V DC
protection circuit
backup diode; freewheeling diode
polarity protection; polarity protection diode
switching
Contact Type
1 changeover contact
Switch Contact Type
Single contact
Contact Material
AgSnO
maximum switching voltage
250V AC/DC
Minimum Switching Voltage
5V (at 100 mA)
24V (1 mA)
limit continuous current
6 A
Maximum starting current
8 A
minimum switching current
1 mA (24 V)
100 mA (5 V)
Maximum power rating (resistive load)
144W (24V DC)
43W (available for 48V DC)
42W (available for 60V DC)
55W (available for 110V DC)
100W (available for 220V DC)
1500 VA (available for 250V AC)
switching: when the gold plating layer is destroyed
