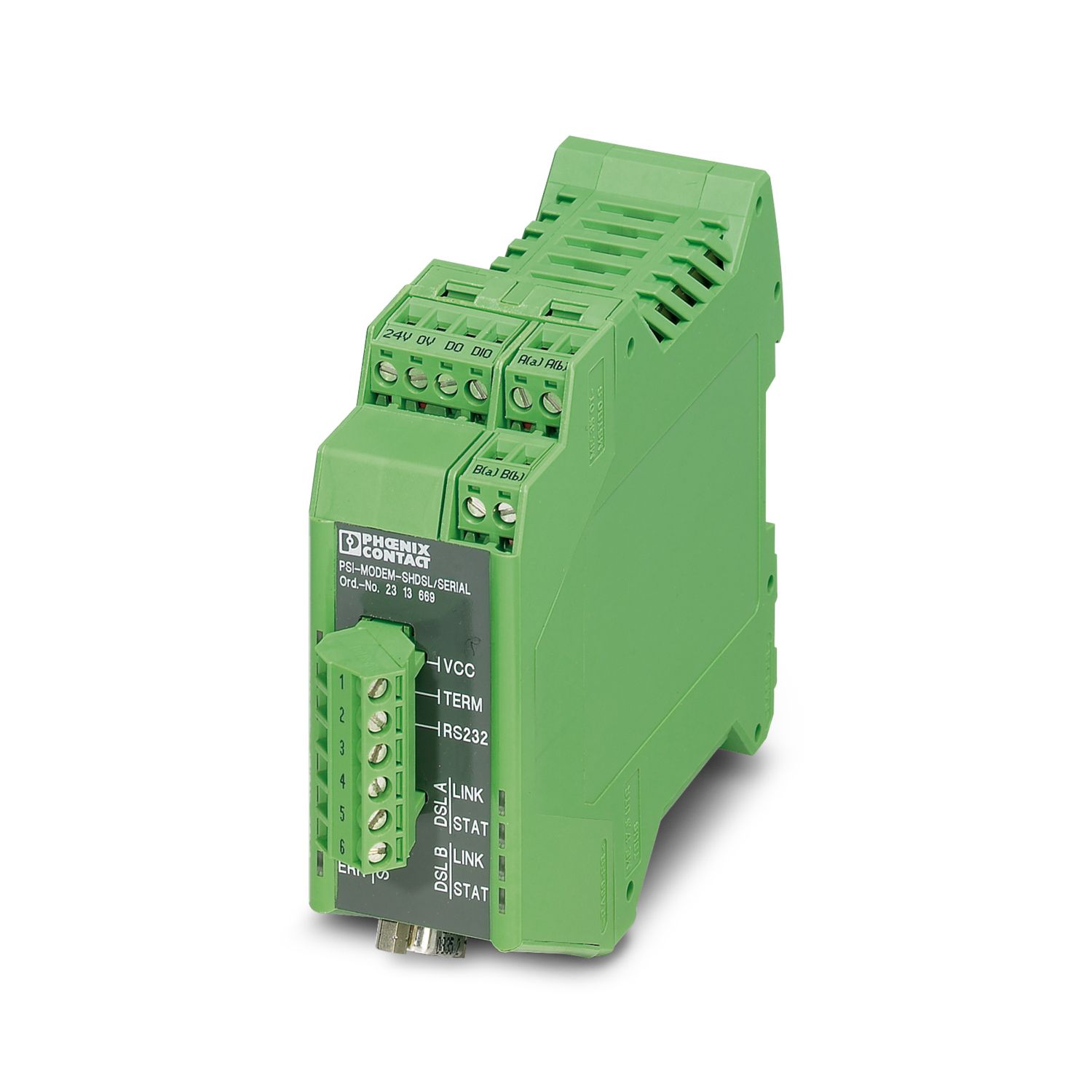

Phoenix PSI-MODEM-SHDSL/SERIAL-modem 2313669, industrial SHDSL extended serial RS-232/422/485 interface, point-to-point and linear structure, internal cable serial data transmission up to 2000 kbps, via USB and LED diagnosis, two Configurable alarm output
Application Description
Application Description
for industrial applications only
Use Restrictions
CCCex Description
is not permitted in China for use in potentially explosive areas.
Product Type
Modem
MTTF
693 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
301 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
121 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
MTBF
1004 years (Telcordia standard, temperature 25°C,21% operation cycle (5 days a week, 8 hours a day))
199 years (Telcordia standard, 40°C,34.25% cycle (5 days a week, 12 hours a day))
LEDs: VCC (supply voltage), RD/TD (serial data flow), ERR (error), TERM (termination resistor active), RS-232(RS-232 active)
2 x LINK / 2 x STAT(DSL data traffic port A and port B),DIAG (diagnostic information)
signal
Output Name
digital output
outputs
2
voltage output signal
18V DC ... 30V DC (depending on operating voltage)
current output signal
≤ 150 mA (short-circuit protection)
Power
Connection Mode
plug-in COMBICON screw terminal block
Tightening torque
0.56 Nm ... 0.79 Nm
signal
RS-232
RS-422
RS-485
Modbus
data: RS-232 interface, according to ITU-T V.28, EIA/TIA-232, DIN 66259-1
