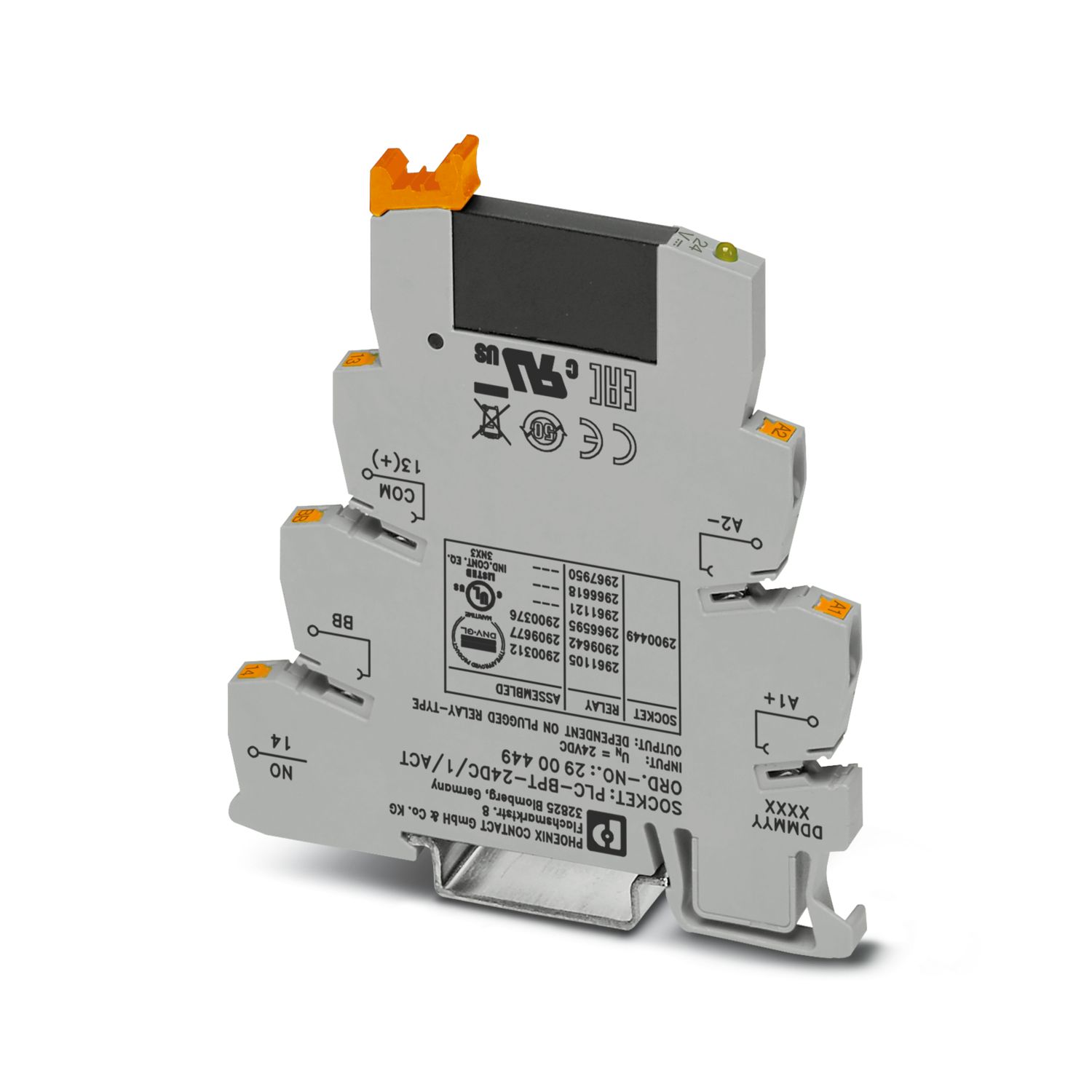

Phoenix PLC-OSC- 24DC/ 24DC/ 2-solid state relay module 2966634,PLC-INTERFACE, including PLC-BSC.../21 base terminal, using screw connection, with plug-in micro solid state relay, for installation on NS 35/7.5, 1 normally open contact, input: 24V DC, output: 3 - 33V DC/3 A
Product Type
Solid State Relay Module
product series
PLC-INTERFACE
Application
General
Mode of operation
100% operating factor
Insulation Characteristics: Standards/Regulations
insulation
Foundation Isolation
Overvoltage Category
III
pollution level
2
Data Management Status
Last data maintenance date
13.11.2024
rated conditions
0.2W
test voltage (input/output)
2.5 kV (50Hz,1 minute, input/output)
Rated input voltage UN
24V DC
rated voltage ("hot" plug solid state relay)
24V DC
relative to UNinput voltage range
0.8 ... 1.2
Input Voltage Range
19.2V DC ... 28.8V DC
switch threshold "0" signal, reference UN
≤ 0.4
switch threshold "1" signal, reference UN
≥ 0.8
UN
8.5 mA
Typical Response Time
20 µs (UN)
Typical closing time
300 µs (UN)
Operating voltage display
yellow LED
protection circuit
polarity protection; polarity protection diode
backup diode; freewheeling diode
sending frequency
300Hz
Contact Type
1 N/O contact
Digital Output Design
electronic
Contact Type
power supply pin position
Output Voltage Range
3V DC ... 33V DC
limit continuous current
3 A (see Temperature Load Curve)
Maximum starting current
15 A (10 ms)
Voltage drop at maximum limited continuous current
≤ 200 mV
output circuit
2-wire connection, floating
protection circuit
polarity protection; polarity protection diode
Surge Protection
Connection Mode
screw connection
stripping length
8mm
thread
M3
Rigid conductor cross section
0.14 mm² ... 2.5 mm²
Flexible Wire Cross Section
0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (single sleeve)
2x 0.5 mm² ... 1.5 mm² (TWIN sleeve)
Connectable Guide Cross Section AWG
26 ... 14
Tightening torque
0.6 Nm ... 0.8 Nm
width
6.2mm
height
80mm
depth
94mm
color
gray (RAL 7042)
flame retardant rating, according to UL 94
V0 (housing)
2900376
넳넲
Phoenix PLC-OSC- 24DC/ 24DC/ 2-Solid State Relay Module 2966634
