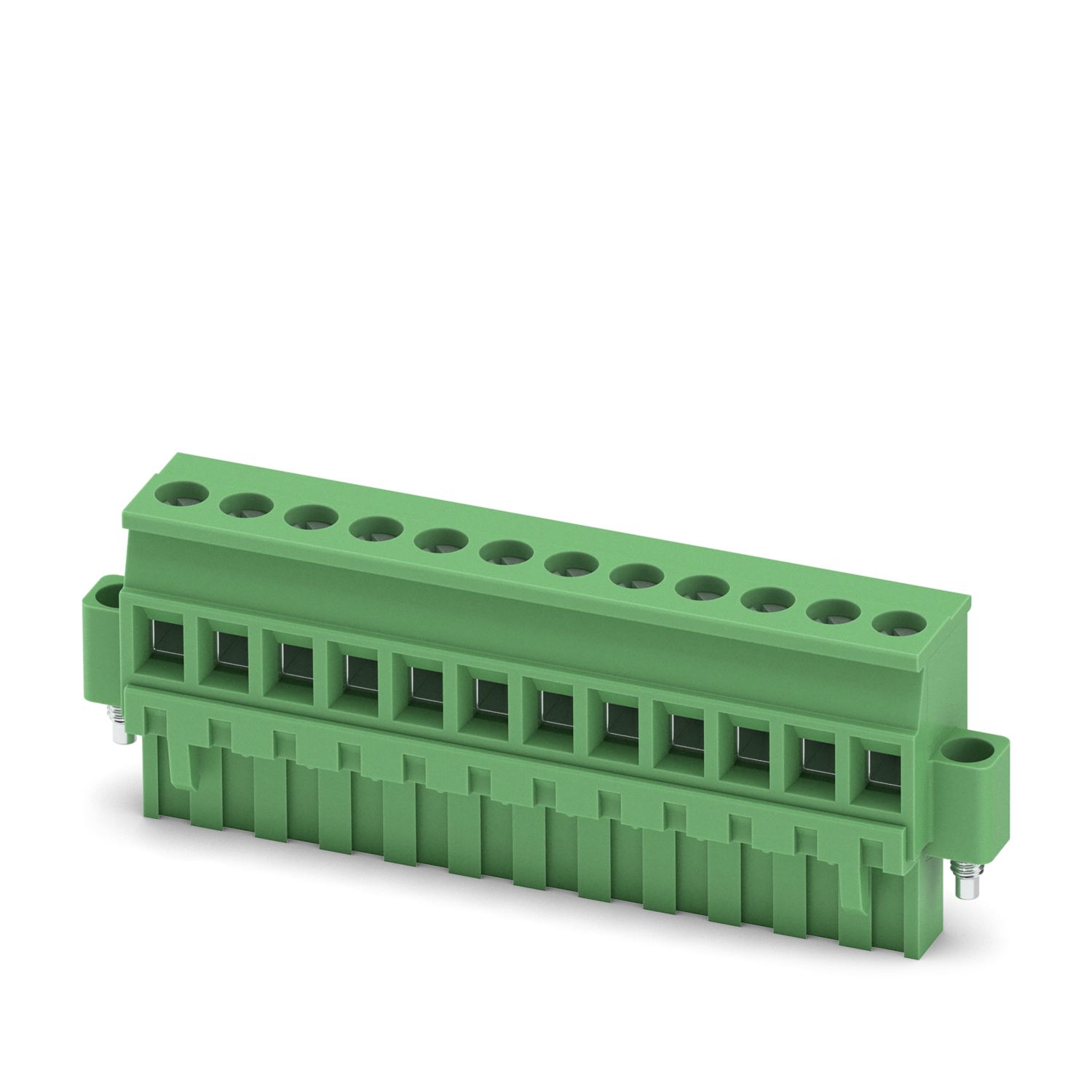

Phoenix MVSTBR 2,5/12-STF-5, 08-PCB plug-in connector 1835193,PCB plug-in connector, rated cross section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 320V, contact surface: Sn, contact type: hole plug, electric number: 12, number of rows: 1, number of digits: 12, connection amount: 12, product series: MVSTBR 2,5/..-STF, needle pitch: 5.08mm, wiring mode: screw connection with pressed sheet, screw head specification: l slotting, wire/PCB connection direction: 90, lock catch:-lock catch, plug-in system: COMBICON MSTB 2,5, interlock: screw locking, installation mode: screw flange, packaging type: carton packaging
| Product Type |
PCB Pluggable Connector |
| product series |
MVSTBR 2,5/..-STF |
| product line |
COMBICON Connectors M |
| type |
standard |
| Bits |
12 |
| needle pitch |
5.08mm |
| connection quantity |
12 |
| Rows |
1 |
| potentials |
12 |
| mounting flange |
screw flange |
| characteristics |
| Rated current IN |
12 A |
| Rated voltage UN |
320V |
| contact resistance |
2.4 mΩ |
| Rated voltage (III/3) |
250V |
| Rated Surge Voltage (III/3) |
4 kV |
| Rated voltage (III/2) |
320V |
| Rated Surge Voltage (III/2) |
4 kV |
| Rated voltage (II/2) |
630V |
| Rated Surge Voltage (II/2) |
4 kV |
| connection technology |
| Connector System |
COMBICON MSTB 2,5 |
| Rated cross section |
2.5 mm² |
| Contact Type |
hole plug |
| interlock |
| Lock Type |
screw locking |
| mounting flange |
screw flange |
| Tightening torque |
0.3 Nm |
| Wire Connection |
| Connection Mode |
screw connection with compression sheet |
| wire/PCB connection direction |
90 ° |
| Rigid conductor cross section |
0.2 mm² ... 2.5 mm² |
| Flexible Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| Attachable Guide Cross Section AWG |
24 ... 12 |
| flexible conductor cross-section with cold press head without insulation sleeve |
0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section, with sleeve, with plastic insulation sleeve |
0.25 mm² ... 2.5 mm² |
| 2 wires of the same cross section, rigid wire |
0.2 mm² ... 1 mm² |
| 2 wires with the same cross section, flexible wire |
0.2 mm² ... 1.5 mm² |
| 2 wires with the same cross section, flexible, with sleeve but not plastic sleeve |
0.25 mm² ... 1 mm² |
| 2 wires with the same cross section, flexible, with TWIN sleeve and plastic sleeve |
0.5 mm² ... 1.5 mm² |
| plug gauge a x B/diameter |
2.8mm x 2.0mm / 2.4mm |
| stripping length |
7mm |
| Screw head drive mode |
slotting (L) |
| Tightening torque |
0.5 Nm ... 0.6 Nm |
| Specification for Sleeve Without Insulating Neck Ring |
| recommend |
1212034 CRIMPFOX 6 |
| Specification for Sleeve with Insulating Neck Ring |
| recommend |
1212034 CRIMPFOX 6 |
| Material Data-Contact Method |
| Considerations |
Compliant with WEEE/RoHS, no whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material |
CU alloy |
| surface characteristics |
hot dip tin plating |
| connection point (top layer) |
Tin (4 - 8 & micro;m Sn) |
| Metallic surface in contact area (top layer) |
Tin (4 - 8 & micro;m Sn) |
