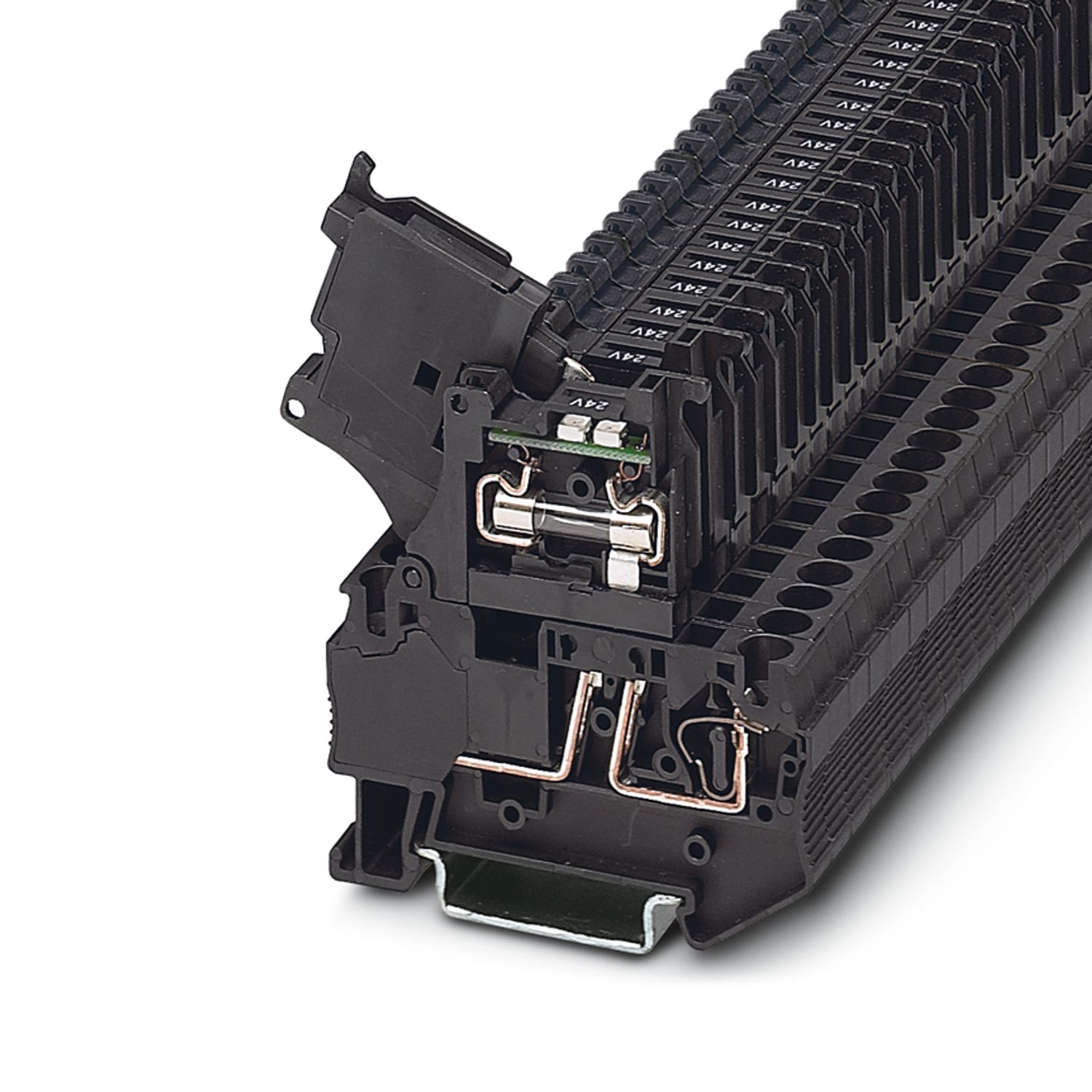

Phoenix ST 4-HESILED 24 (5X20) -fuse terminal 3036547, fuse terminal, fuse type: glass/ceramic/ ..., fuse type: G / 5 x 20, nominal working voltage: 24V, rated current: 6.3 A, wiring method: pull-back spring connection, first layer, rated wiring capacity: 1mm2, wiring capacity: 0.08 mm2 -6mm2, installation method: NS 35/7,5, NS 35/15, color: black
| Product Type |
Fuse Terminal |
| connection quantity |
2 |
| Rows |
1 |
| potential |
1 |
| insulation characteristics |
| Overvoltage Category |
III |
| pollution level |
3 |
| Fuse Type |
glass/ceramic/ ... |
| Rated surge voltage |
4 kV |
| rated conditions |
1.02W |
| Fuse |
G / 5 x 20 |
| LED voltage range |
12V AC/DC ... 30V AC/DC |
| LED current range |
0.31 mA ... 0.95 mA |
| Maximum power loss |
Maximum 1.6W (single-row fuse terminal, providing protection in the event of overload) |
| Maximum 1.6W (multiple fuse terminals are connected to each other to provide protection in the event of overload) |
| Maximum 4W (single-row fuse terminal, providing protection in the event of a short circuit) |
| Maximum 2.5W (multiple fuse terminals are connected to each other to provide protection in the event of a short circuit) |
| LED voltage range |
12V AC/DC ... 30V AC/DC |
| the number of connections per layer |
2 |
| Rated cross section |
4 mm² |
| first layer |
| stripping length |
8mm ... 10mm |
| plug gauge |
A4 |
| connection meets standards |
IEC 60947-7-3 |
| Rigid conductor cross section |
0.08 mm² ... 6 mm² |
| cross-section AWG |
28 ... 10 (as amended by IEC standards) |
| Flexible Wire Cross Section |
0.08 mm² ... 4 mm² |
| WIRE CROSS SECTION, FLEXIBLE [AWG] |
28 ... 12 (as amended by IEC standards) |
| Flexible conductor cross-section (sleeve without plastic insulation) |
0.14 mm² ... 4 mm² |
| flexible conductor cross-section (sleeve with plastic insulating tube) |
0.14 mm² ... 4 mm² |
| 2 wires with the same cross section, flexible, with TWIN sleeve and plastic sleeve |
0.5 mm² ... 1 mm² |
| Nominal current |
6.3 A |
| Maximum load current |
6.3 A (current depends on the fuse used) |
| Rated voltage |
24V |
| Rated cross section |
1 mm² |
| width |
6.2mm |
| height |
61.5mm |
| NS 35/7,5 depth |
62.5mm |
| NS 35/15 Depth |
70mm |
| color |
black (RAL 9005) |
| flame retardant rating, according to UL 94 |
V0 |
| Insulation Material Group |
I |
| insulation material |
PA |
| Application of Static Insulation Materials at Low Temperature |
-60°C |
| insulating materials (DIN EN 60216-1(VDE 0304-21)) |
130°C |
| Insulation Relative Temperature Index (Electrical, UL 746 B) |
130°C |
| railway vehicles (DIN EN 45545-2) R22 |
HL 1 - HL 3 |
| Fire protection of railway vehicles (DIN EN 45545-2) R23 |
HL 1 - HL 3 |
| railway vehicles (DIN EN 45545-2) R24 |
HL 1 - HL 3 |
| Fire protection of railway vehicles (DIN EN 45545-2) R26 |
HL 1 - HL 3 |
| Thermal Release NFPA 130 (ASTM E 1354) |
28 MJ/kg |
| Surface Flammability NFPA 130 (ASTM E 162) |
through |
| Smoke specific optical density NFPA 130 (ASTM E 662) |
through |
| Smoke Toxicity NFPA 130 (SMP 800C) |
through |
