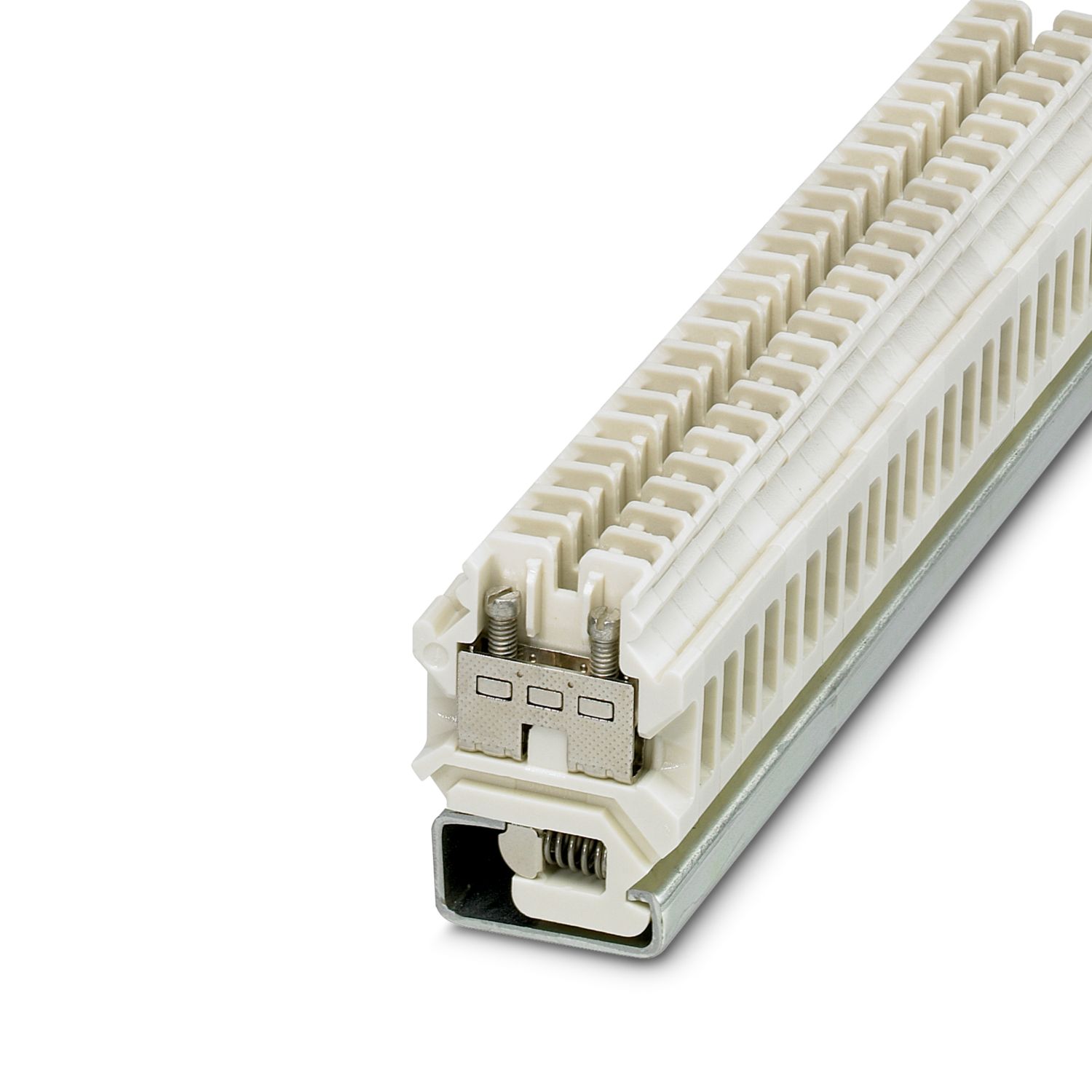

Phoenix SSK 110 KER-EX-straight-through terminal 0502058, straight-through terminal, connection method: screw connection, cross-sectional area: 0.5 mm2 -10mm2, 20 - 8 AWG, thickness: 8.4mm, color: white, installation method: NS 32, insulation material: ceramic
| Product Type |
high temperature terminal |
| connection quantity |
2 |
| Rows |
1 |
| potential |
1 |
| insulation characteristics |
| Overvoltage Category |
III |
| pollution level |
3 |
| Rated surge voltage |
8 kV |
| rated conditions |
1.31W |
| the number of connections per layer |
2 |
| Rated cross section |
6 mm² |
| Layer 1 Upper 1 Lower 1 |
| thread |
M4 |
| Tightening torque |
1.5 ... 1.8 Nm |
| stripping length |
10mm |
| plug gauge |
A4 |
| connection meets standards |
IEC 60947-7-1 |
| Rigid conductor cross section |
0.5 mm² ... 10 mm² |
| cross-section AWG |
20 ... 8 (as amended by IEC standards) |
| Flexible Wire Cross Section |
0.5 mm² ... 6 mm² |
| WIRE CROSS SECTION, FLEXIBLE [AWG] |
20 ... 10 (as amended by IEC standards) |
| Flexible conductor cross-section (sleeve without plastic insulation) |
0.5 mm² ... 6 mm² |
| flexible conductor cross-section (sleeve with plastic insulating tube) |
0.5 mm² ... 4 mm² |
| 2 wires of the same cross section, rigid wire |
0.5 mm² ... 2.5 mm² |
| 2 wires with the same cross section, flexible wire |
0.5 mm² ... 2.5 mm² |
| 2 wires with the same cross section, flexible, with sleeve but not plastic sleeve |
0.5 mm² ... 2.5 mm² |
| 2 wires with the same cross section, flexible, with TWIN sleeve and plastic sleeve |
0.5 mm² ... 2.5 mm² |
| Nominal current |
41 A |
| Maximum load current |
57 A (when connecting a conductor with a cross-sectional area of 10 mm²) |
| Rated voltage |
800V |
| Rated cross section |
6 mm² |
| rated parameters (ATEX/IECEx) |
| identification |
II 2 GD Ex eb IIC Gb |
| Operating temperature range |
-60°C ... 180°C |
| Ex Certified Accessories |
0202060 D-SSK 110 KER |
| 1201044 E/1 |
| Bridge List |
chain bridge/KB -8/0202206 |
| Bridge Data |
49 A (10 mm²) |
| explosion-proof temperature rise |
40 K (40.3 A / 6 mm²) |
| Nominal operating voltage |
440V |
| for bridging with bridges |
440V |
| Rated insulation voltage |
400V |
| Output |
(permanent) |
| Ex Level regular |
| Rated current |
36.5 A |
| Maximum load current |
49 A |
| contact resistance |
0.74 mΩ |
| Ex Connection Data Overview |
| Torque range |
1.5 Nm ... 1.8 Nm |
| Rated cross section |
6 mm² |
| Rated wiring capacity AWG |
10 |
| Rigid Wiring Capacity |
0.5 mm² ... 10 mm² |
| Wiring capacity AWG |
20 ... 8 |
| flexible wiring capacity |
0.5 mm² ... 6 mm² |
| Wiring capacity AWG |
20 ... 10 |
| width |
8mm |
| End plate width |
4mm |
| height |
38.4mm |
| depth |
47.3mm |
| NS 32 Depth |
50.2mm |
| color |
Ivory (RAL 1014) |
| Identification Materials |
ceramic |
| Insulation Material Group |
I |
| Insulation Relative Temperature Index (Electrical, UL 746 B) |
1000°C |
