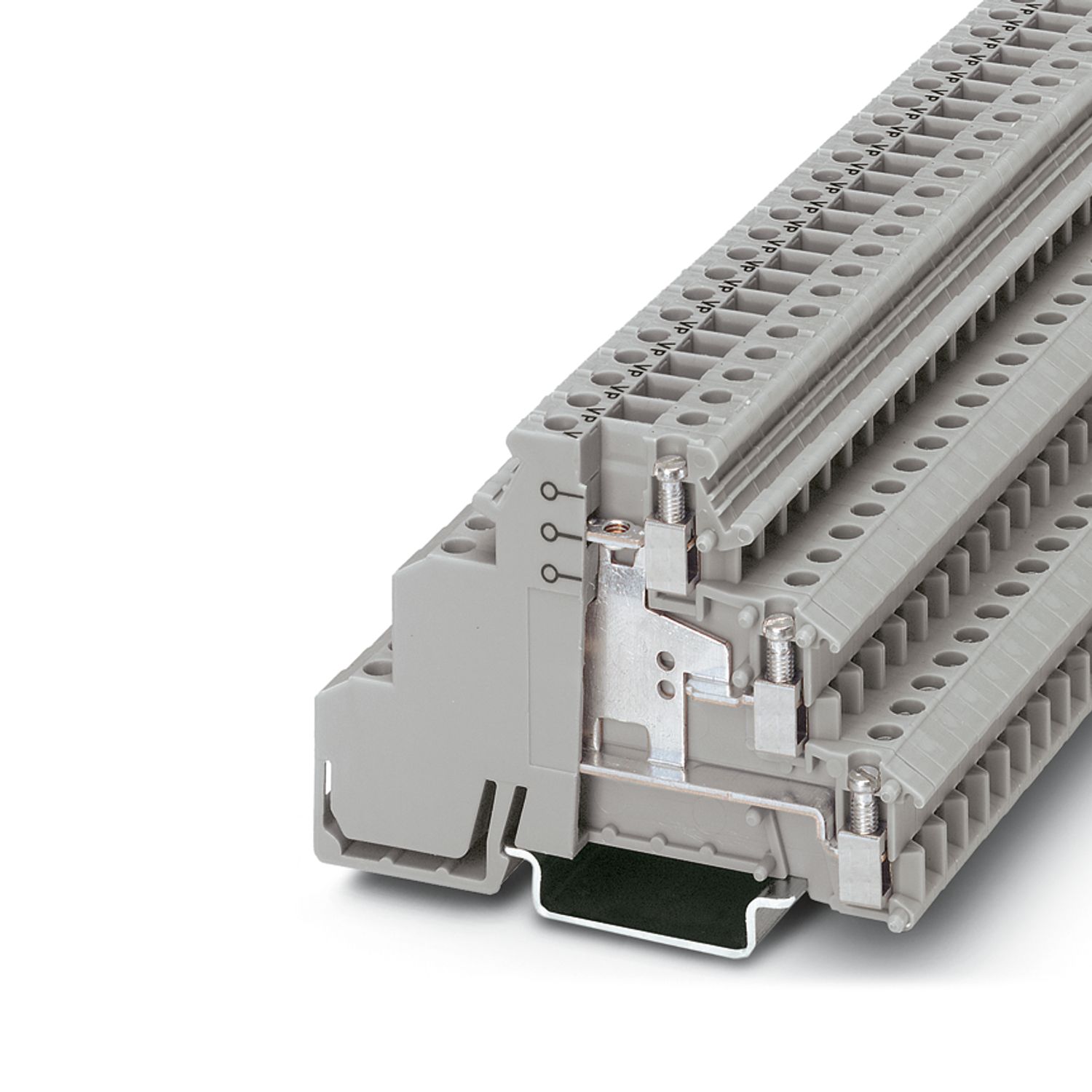

Phoenix DIKD 1,5-PV-starter/actuator terminal 2715092, starter/actuator terminal, with equipotential connection, nominal working voltage: 250V, rated current: 24 A, wiring method: Screw connection, 1st, 2nd and 3rd layers, rated wiring capacity: 2.5 mm2, cross section: 0.2 mm2 -4mm2, installation method: NS 35/7,5, NS 35/15, color: gray
| Product Type |
Sensor/Actuator Terminal |
| connection quantity |
6 |
| Rows |
3 |
| potential |
1 |
| insulation characteristics |
| Overvoltage Category |
III |
| pollution level |
3 |
| Rated surge voltage |
4 kV |
| rated conditions |
0.77W |
| the number of connections per layer |
2 |
| Rated cross section |
2.5 mm² |
| 1st, 2nd and 3rd floors |
| thread |
M3 |
| Tightening torque |
0.5 ... 0.6 Nm |
| stripping length |
8mm |
| plug gauge |
A3 |
| connection meets standards |
IEC 60947-7-1 |
| Rigid conductor cross section |
0.2 mm² ... 4 mm² |
| cross-section AWG |
24 ... 12 (as amended by IEC standards) |
| Flexible Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| WIRE CROSS SECTION, FLEXIBLE [AWG] |
24 ... 14 (as amended by IEC standards) |
| Flexible conductor cross-section (sleeve without plastic insulation) |
0.25 mm² ... 2.5 mm² |
| flexible conductor cross-section (sleeve with plastic insulating tube) |
0.25 mm² ... 2.5 mm² |
| wiring capacity including plug-in bridges, rigid |
4 mm² |
| wiring capacity including plug-in bridges, flexible |
2.5 mm² |
| 2 wires of the same cross section, rigid wire |
0.2 mm² ... 1 mm² |
| 2 wires with the same cross section, flexible wire |
0.2 mm² ... 1 mm² |
| 2 wires with the same cross section, flexible, with sleeve but not plastic sleeve |
0.25 mm² ... 1 mm² |
| 2 wires with the same cross section, flexible, with TWIN sleeve and plastic sleeve |
0.5 mm² ... 1 mm² |
| Nominal current |
24 A |
| Maximum load current |
32 A (When the cross-sectional area of the connected wires is 4 mm², the total current of all connected wires cannot exceed the maximum load current.) |
| Rated voltage |
250V |
| Rated cross section |
2.5 mm² |
| width |
6.2mm |
| height |
72.5mm |
| NS 35/7,5 depth |
54.5mm |
| NS 35/15 Depth |
62mm |
| color |
gray (RAL 7042) |
| flame retardant rating, according to UL 94 |
V2 |
| Insulation Material Group |
I |
| insulation material |
PA |
| Application of Static Insulation Materials at Low Temperature |
-40°C |
| Insulation Relative Temperature Index (Electrical, UL 746 B) |
125°C |
