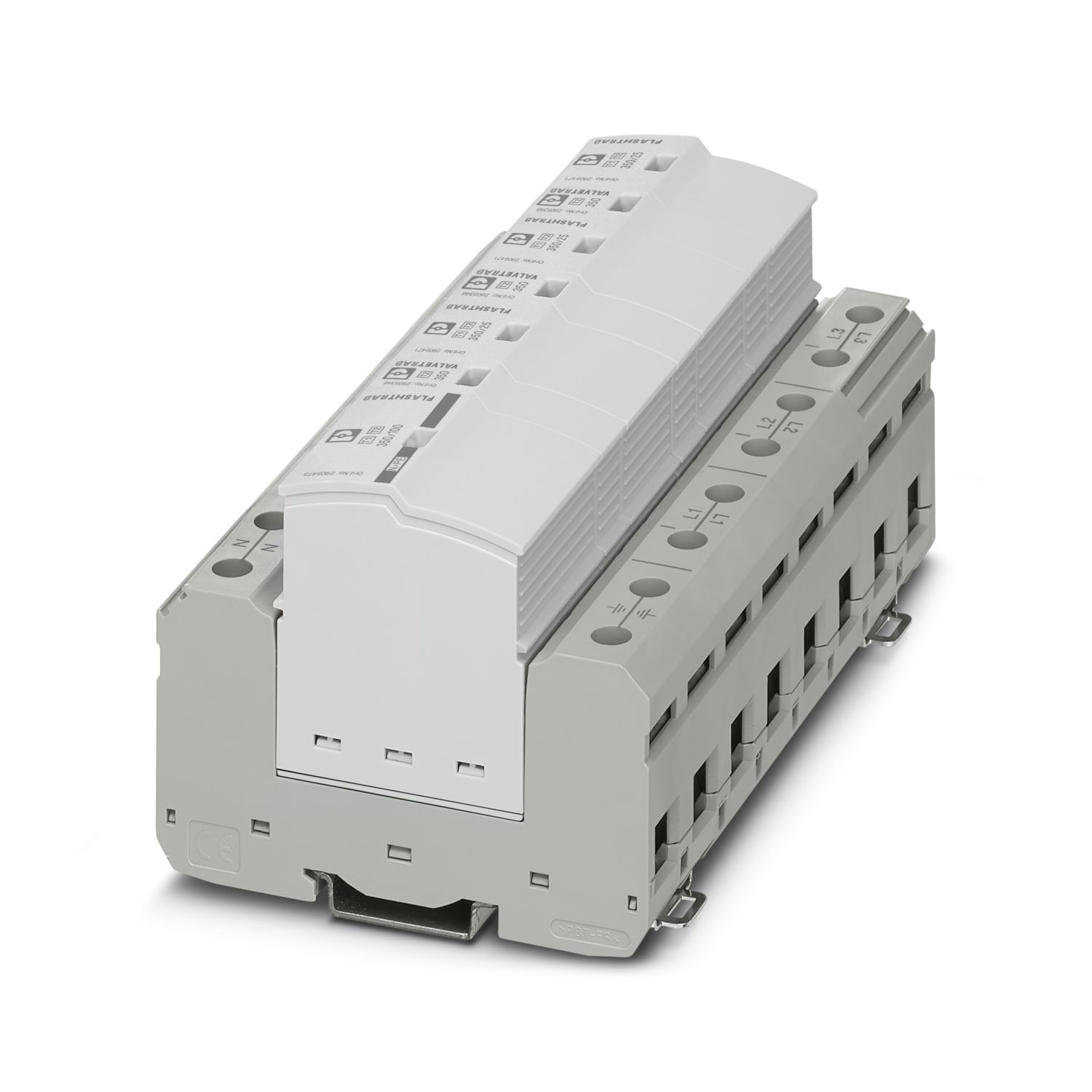

Phoenix FLT-SEC-P-T1-3S-350/25-FM-1 Class 2 combined surge protector 2905421, plug-in lightning protection surge protector without leakage current, meet the requirements of Class 1/Class I, used for 3-phase power supply network, The neutral wire is separated from the protective ground (L1, L2, L3, PE, N).
Overview
Considerations
Max. single impulse: 100 kA (8/20 µs)
SPD according to AS/NZS 1768 Cat. C3
Product Type
combination type
product series
SEC Family
IEC Category
I / II
T1 / T2
EN Type
T1 / T2
IEC power supply system
TN-S
TT
type
DIN rail module, split, detachable
Bits
4
Surge protection fault alarm
visual status indication window and remote alarm contact
insulation characteristics
Overvoltage Category
III
pollution level
2
Rated frequency fN
50Hz (60 Hz)
indicator/remote signaling
Connection Name
Remote alarm contact
switching function
changeover contact
Nominal operating voltage
12V AC ... 250V AC
125V DC (200 mA DC)
operating current
10 mA AC ... 1 A AC
1 A DC (30V DC)
Connection Mode
screw connection
thread
M5
Tightening torque
4.5 Nm
stripping length
18mm
Flexible Wire Cross Section
2.5 mm² ... 35 mm²
Rigid conductor cross section
2.5 mm² ... 35 mm²
Attachable Guide Cross Section AWG
13 ... 2
Connection Mode
fork cable end
Flexible Wire Cross Section
1.5 mm² ... 16 mm²
Remote alarm contact
Connection Mode
COMBICON in-line/screw connection
thread
M2
Tightening torque
0.25 Nm
stripping length
7mm
Flexible Wire Cross Section
0.14 mm² ... 1.5 mm²
Rigid conductor cross section
0.14 mm² ... 1.5 mm²
Attachable Guide Cross Section AWG
28 ... 16
Dimensional drawing
width
142.4mm
height
95.2mm
depth
74.5mm (7.5mm with DIN rail)
Horizontal stitch pitch
8 Division
color (pin connector)
light gray (RAL 7035)
color (basic element)
gray (RAL 7042)
flame retardant rating, according to UL 94
V-0
material
600
insulation material
PA6.6-FR 20% GF
PBT-FR
Material Group
I
Shell Material
PA 6.6-FR 20 % GF
PBT-FR
2905470
