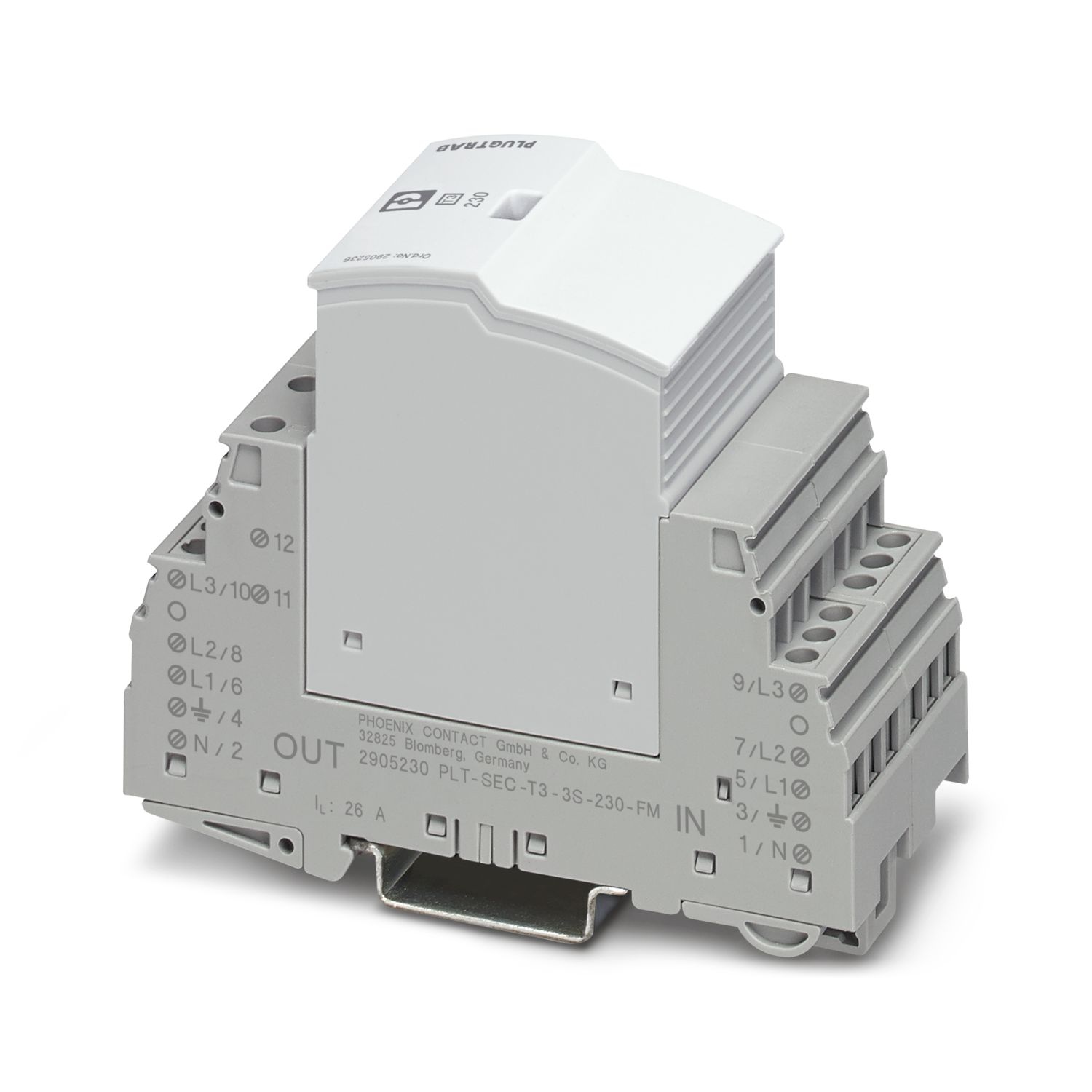

Phoenix Class PLT-SEC-T3-3S-230-FM-3 surge protection equipment 2905230, plug-in equipment protection, conforms to Class 3/Class III, used for protection of three-phase power network, power network adopts separate N and PE(5-wire system: L1, L2, L3, N, PE), built-in surge protection fuse, with remote indication contact.
Product Type
Equipment Protection
Product Series
SEC Family
IEC power supply system
TN-S
TT
type
DIN rail module, split, detachable
Bits
4
Surge protection fault alarm
visual status indication window and remote alarm contact
insulation characteristics
Overvoltage Category
III
pollution level
2
IEC Category
III
T3
EN Type
T3
Ports
One
indicator/remote signaling
Connection Name
Remote alarm contact
switching function
normally closed contact
Nominal operating voltage
250V AC
125V DC (200 mA DC)
working current
3 A AC
1 A DC (30V DC)
Connection Mode
screw connection
thread
M3
Tightening torque
0.8 Nm
Flexible Wire Cross Section
0.2 mm² ... 2.5 mm²
Rigid conductor cross section
0.2 mm² ... 4 mm²
Attachable Guide Cross Section AWG
24 ... 12
Dimensional drawing
width
35.4mm
height
90mm
depth
74.5mm (7.5mm with DIN rail)
Horizontal stitch pitch
Division 2
color (pin connector)
light gray (RAL 7035)
color (basic element)
gray (RAL 7042)
flame retardant rating, according to UL 94
V-0
material
600
insulation material
PA 6.6-FR 20% GF
PA 6.6-FR
Material Group
I
Shell Material
PA 6.6-FR 20 % GF
PA 6.6-FR
protection channel
L-N
L-PE
N-PE
movement direction
3L-N & N-PE
Rated voltage UN
230/400V AC (TN-S)
230/400V AC (TT-only with RCD)
Rated frequency fN
50Hz (60 Hz)
Maximum continuous voltage Uc
264V AC
Rated load current IL
26 A (30 °C)
Residual Flow IPE
≤ 5 µA
Standby power consumption PC
≤ 2 VA (UREF)
≤ 2.2 VA (UC)
Reference test voltage UREF
255V AC
Nominal discharge current In(8/20)µs
3 kA
Combined surge UOC
6 kV
voltage protection level Up(L-N)
≤ 1.4 kV
voltage protection level Up(L-PE)
≤ 1.5 kV
