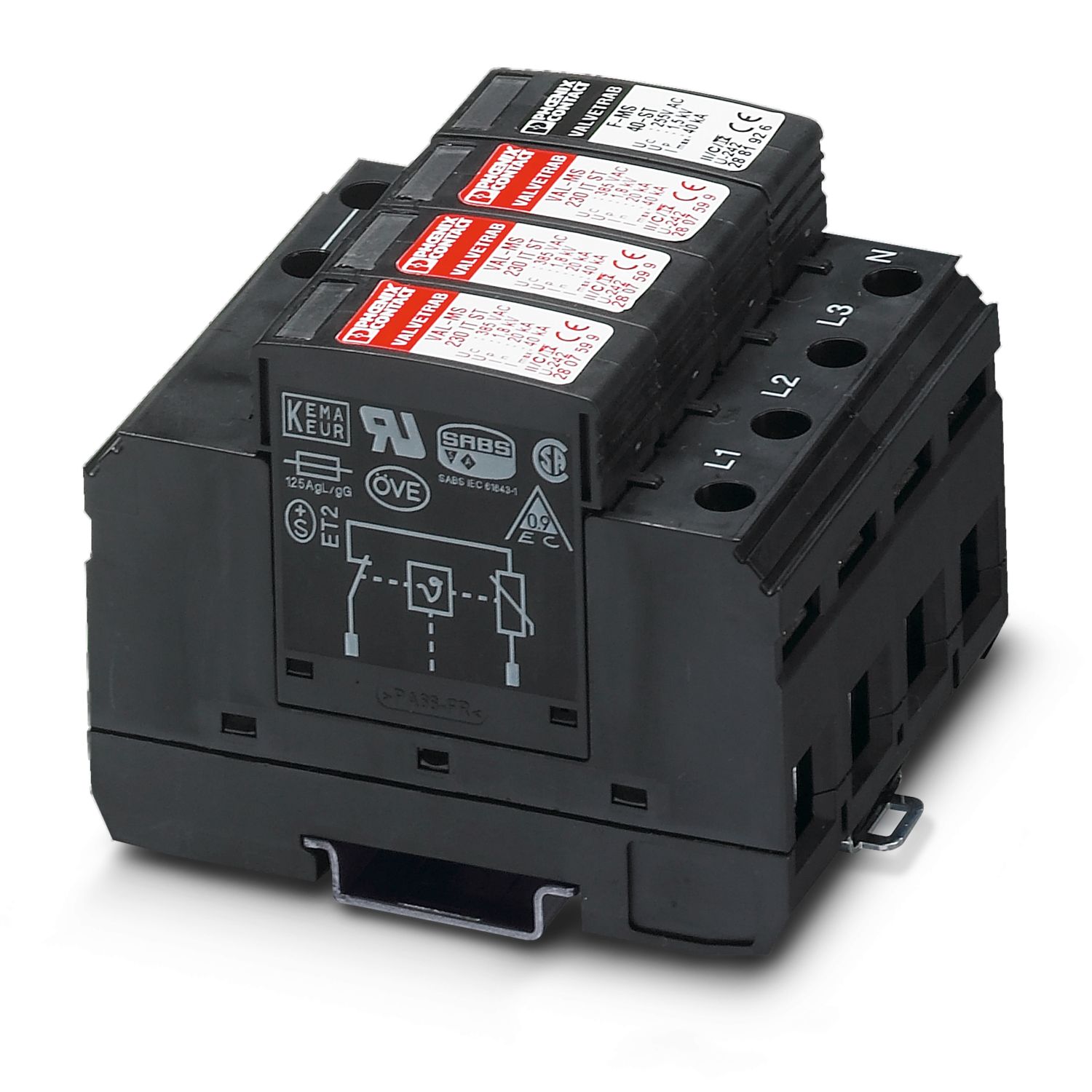

Phoenix VAL-MS 230/3 1 FM-2 surge protector 2838199, surge protector, with base, with remote indicator contact and grounding connector, installed on NS 35/7.5 rail, rated voltage: 230V AC,3 1 circuit
| Product Type | surge protector |
| Product Series | VALVETRAB MS |
| IEC Category | II |
| T2 | |
| EN Type | T2 |
| IEC power supply system | TN-S |
| TT | |
| type | DIN rail module, split, detachable |
| Bits | 4 |
| Surge protection fault alarm | visual status indication window and remote alarm contact |
| insulation characteristics | |
| Overvoltage Category | III |
| pollution level | 2 |
| Rated frequency fN | 50Hz (60 Hz) |
| indicator/remote signaling | |
| Connection Name | Remote alarm contact |
| switching function | changeover contact |
| Nominal operating voltage | 5V AC ... 250V AC |
| 30V DC | |
| Operating current | 5 mA AC ... 750 mA AC |
| 1 A DC | |
| Connection Mode | screw connection |
| thread | M5 |
| Tightening torque | 3 Nm (1.5 mm² ... 16 mm²) |
| 4.5 Nm (25 mm² ... 35 mm²) | |
| stripping length | 16mm |
| Flexible Wire Cross Section | 1.5 mm² ... 25 mm² |
| Rigid conductor cross section | 1.5 mm² ... 35 mm² |
| Connectable Guide Cross Section AWG | 15 ... 2 |
| Connection Mode | fork cable end |
| Flexible Wire Cross Section | 1.5 mm² ... 16 mm² |
| Remote alarm contact | |
| Connection Mode | COMBICON in-line/screw connection |
| thread | M2 |
| Tightening torque | 0.25 Nm |
| stripping length | 7mm |
| Flexible Wire Cross Section | 0.14 mm² ... 1.5 mm² |
| Rigid conductor cross section | 0.14 mm² ... 1.5 mm² |
| Connectable Guide Cross Section AWG | 28 ... 16 |
| Dimensional drawing | |
| width | 71mm |
| height | 98.7mm |
| depth | 65.7mm (7.5mm with DIN rail) |
| Horizontal stitch pitch | 4 Zoning |
