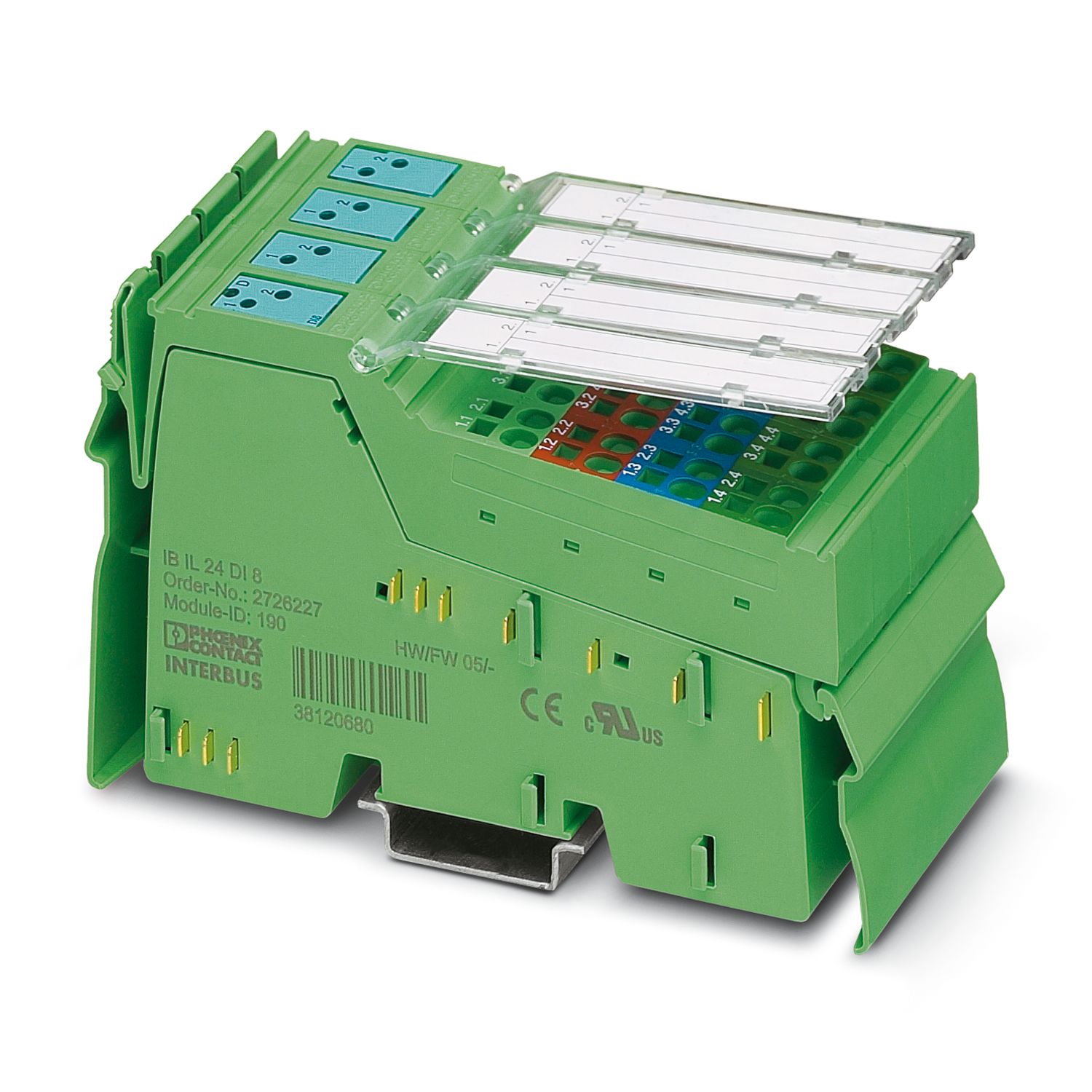

Phoenix IB IL 24 DO 8-PAC-digital quantity module 2861289,Inline, digital quantity output module, digital output: 8,24V DC, connection technology: 4 wires, local bus transmission rate: 500 kBit/s, protection level: IP20, including Inline connector and marker strip
width
48.8mm
height
119.8mm
depth
71.5mm
Notes on dimensional data
Shell Size
Application Description
Application Description
for industrial applications only
Use Restrictions
CCCex Description
is not permitted in China for use in potentially explosive areas.
Inline Local Bus
interfaces
2
Connection Mode
Inline data span block
transmission speed
500 kBit/s
Module
ID Code (dec.)
189
Hex ID Encoding
BD
Length Encoding (Hexadecimal)
81
length encoding (decimal)
129
Process Data Channel
8.
Input Address Area
0 Byte
Output Address Area
1 Byte
Register Length
8.
the required parameter data
3 Byte
4 Byte
digital quantity:
Output Name
Digital Output
Connection Mode
pull-back spring connection
connection system
4 lines
outputs
8
protection circuit
output
output voltage
24V (US- 1 V)
the maximum output current per channel
500 mA
the maximum output current of each module
4 A
Rated output voltage
24V DC (Inom≤ 1V)
load rating, inductive
12W
rated load, indicator light
12W
Rated load, resistive
12 VA
overload behavior
automatic restart
Inductor overload action
output may be corrupted
voltage is off
output and power supply
Product Type
I/O components
product series
Inline
type
Module
Scope of supply
includes Inline connector and marker strip
Channels
8
Mode of operation
process data is 1 byte
diagnostic information
Digital output short circuit or overload fault information in the form of diagnostic code (bus), displayed via LED(D) on the module (2Hz)
insulation characteristics
Overvoltage Category
II (IEC 60664-1,EN 60664-1)
pollution level
2 (IEC 60664-1,EN 60664-1)
