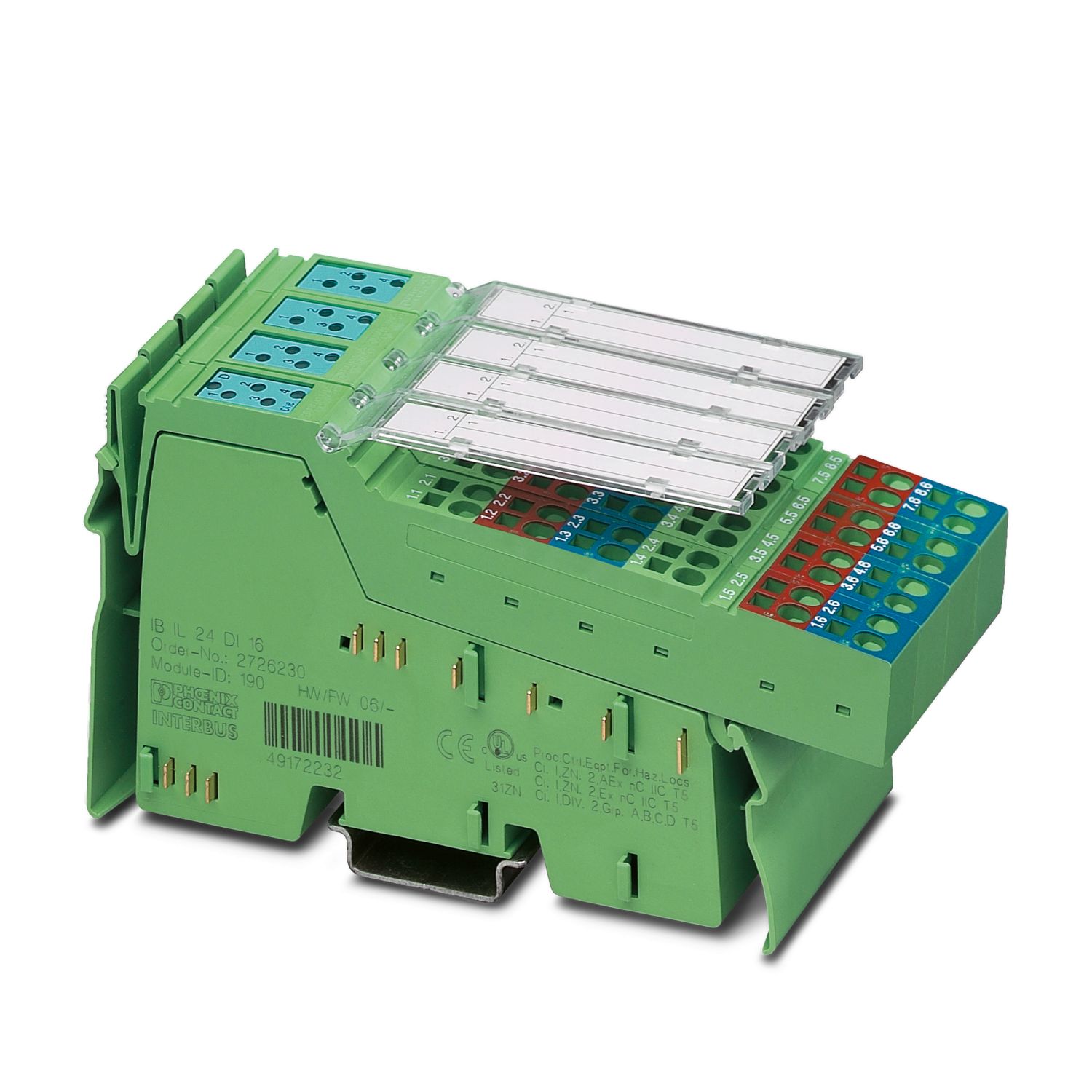

Phoenix IB IL 24 DI 16-PAC-digital quantity module 2861250,Inline, digital quantity input module, digital input: 16,24V DC, connection technology: 3 wires, local bus transmission rate: 500 kBit/s, protection level: IP20, including Inline connector and marker strip
width
48.8mm
height
140.5mm
depth
71.5mm
Notes on dimensional data
Shell Size
Application Description
Application Description
for industrial applications only
Use Restrictions
CCCex Description
is not permitted in China for use in potentially explosive areas.
Inline Local Bus
interfaces
2
Connection Mode
Inline data span block
transmission speed
500 kBit/s
Module
ID Code (dec.)
190
Hex ID Encoding
BE
Length Encoding (Hexadecimal)
01
length encoding (decimal)
01
Process Data Channel
16 bits
Input Address Area
2 Byte
Output Address Area
0 Byte
Register Length
16 bits
the required parameter data
1 Byte
4 Byte
digital quantity:
Enter Name
Digital Input
Input Description
EN 61131-2 type 1
Input Quantity
16
Connection Mode
pull-back spring connection
connection system
3 lines
input voltage
24V DC
input voltage range, "0" signal
-3V DC ... 5V DC
input voltage range, "1" signal
15V DC ... 30V DC
Rated input voltage UIN
24V DC
Rated input current UIN
minimum 3 mA (rated voltage)
sensor current per channel
Max. 250 mA
Typical Response Time
< 1 ms
0 to 1 signal switching delay time
1 ms
1 to 0 signal switching delay time
1 ms
Product Type
I/O components
product series
Inline
type
Module
Scope of supply
includes inline connector and marker strip
Channels
16
Mode of operation
a word of process data pattern
insulation characteristics
Overvoltage Category
II (IEC 60664-1,EN 60664-1)
pollution level
2 (IEC 60664-1,EN 60664-1)
rated conditions
1.6W
potential: communication power supply (UL)
supply voltage
7.5V DC (across the power supply)
current consumption
maximum 60 mA
potential: segmented loop power supply (US)
supply voltage
24V DC (via power crossover)
Supply Voltage Range
19.2V DC ... 30V DC (includes all tolerances, including ripple)
