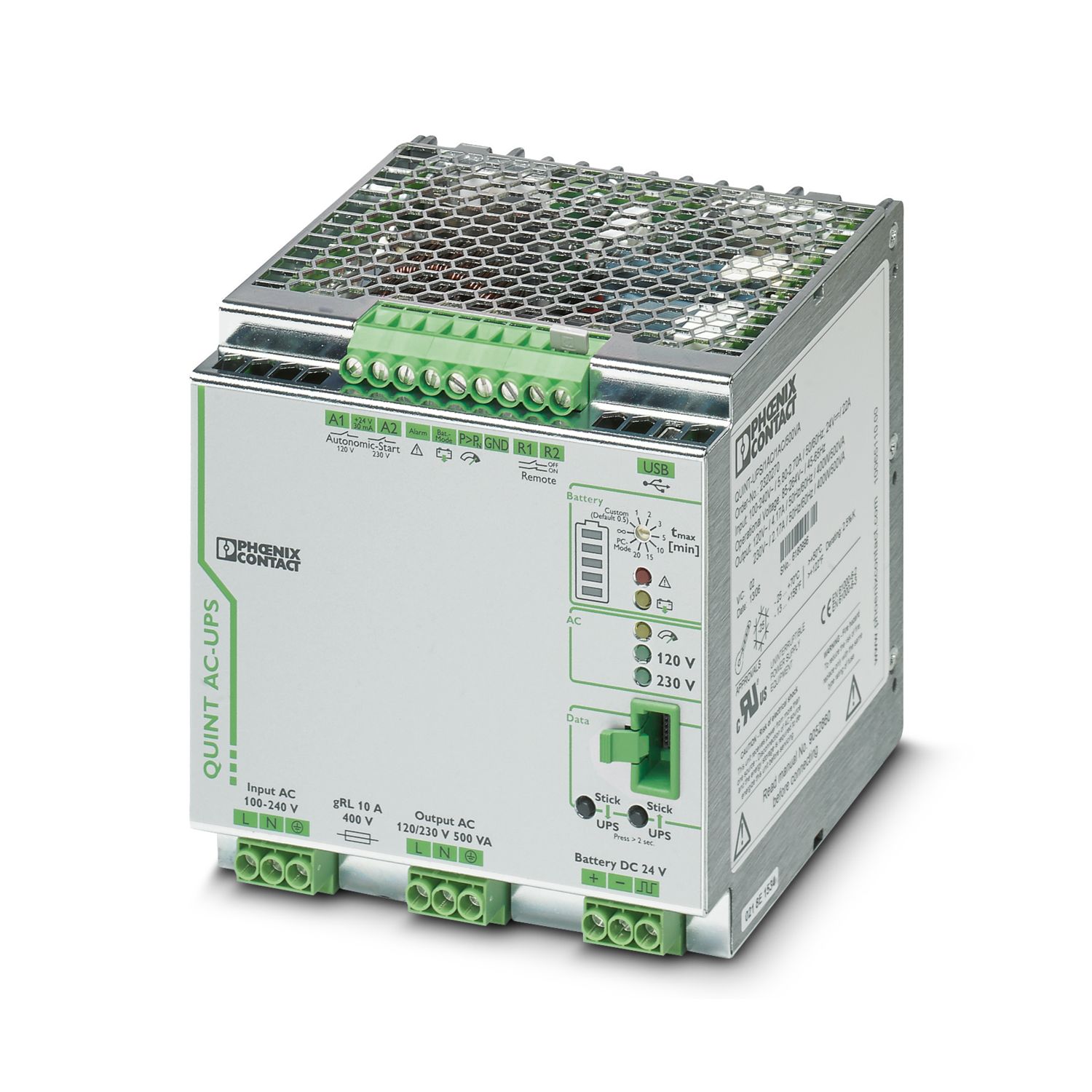

Phoenix QUINT-UPS/ 1AC/1AC/500VA-Uninterruptible Power Supply 2320270, Uninterruptible Power Supply with IQ Technology 1AC/1AC/500 VA. For 120V AC/230V AC applications. From time to time, provide information on the charging status, remaining operating time, and the service life of your battery modules, thereby improving the effectiveness of the system.
AC operation
input voltage
240V AC
100V AC
120V AC -20 % / +15%
230V AC -20 % / +15%
Rated input voltage range
100V AC ... 240V AC
Input Voltage Range
184V AC ... 264V AC
96V AC ... 138V AC
96V AC ... 264V AC
AC input voltage range
196V AC ... 264V AC
102V AC ... 138V AC
96V AC ... 264V AC
Supply Voltage
AC
Rated frequency
50Hz ... 60Hz
50Hz ... 60Hz
AC frequency range
45Hz ... 65Hz
buffer time
1 h (38 Ah)
power consumption
2.2 A (230V AC)
0.18 A (230V AC)
0.8 A (230V AC)
3.7 A (230V AC)
4.3 A (120V AC)
0.35 A (120V AC)
1.3 A (120V AC)
6.8 A (120V AC)
Fixed Backup Threshold
configurable, 10% deviation from default rated input voltage setting
Variable Connection Threshold
can be configured using UPS-CONF software
power factor (cos phi)
0.8
Device power fuse
10 A
Allowable Spare Fuses
B16 230V AC
20 A 120V AC, Listed breaker
digital quantity control Low-Active (configurable)
battery running start 120V AC Default
plug-in bridge (output +24V DC 30 mA to A1 input)
battery running start 230V AC Default
plug-in bridge (output +24V DC 30 mA to A2 input)
classification according to IEC 62040-3
VFD-SS-311
efficiency
> 98% (trunk line operation)
> 98 % (120V AC)
> 86% (battery operated)
Rated output voltage
120V AC
230V AC
Output Voltage Range
96V AC ... 144V AC
184V AC ... 264V AC
Output Voltage Shape
pure sine wave
Rated output current (IN)
4.3 A (120V AC,-25 °C ... 50 °C)
2.2 A (230V AC,-25 °C ... 40 °C)
Output Current Limit
5.2 A (120V AC)
2.7 A (230V AC)
POWER BOOST (IBoost)
5.2 A (120V AC,-25 °C ... 40 °C)
2.7 A (230V AC,-25 °C ... 40 °C)
bridge time
3600 s
Attenuation
> 50°C ... 70°C (2.5 %/K)
USB Parallel Connection
No
UPS series connection
No
output power
516W
apparent power
500 VA
Rated power
400W
amplitude factor
2.8
switching time
< 10 ms
and connect
No
Concatenation
No
mains power supply
Rated output voltage
120V AC
230V AC
Output Voltage Range
102V AC ... 138V AC
196V AC ... 264V AC
Rated output current (IN)
4.3 A (120V AC)
2.2 A (230V AC)
POWER BOOST (IBoost)
5.2 A
2.7 A
Allowable Spare Fuses
AC:1 x LS switch switch-recommend fuse
2320270
