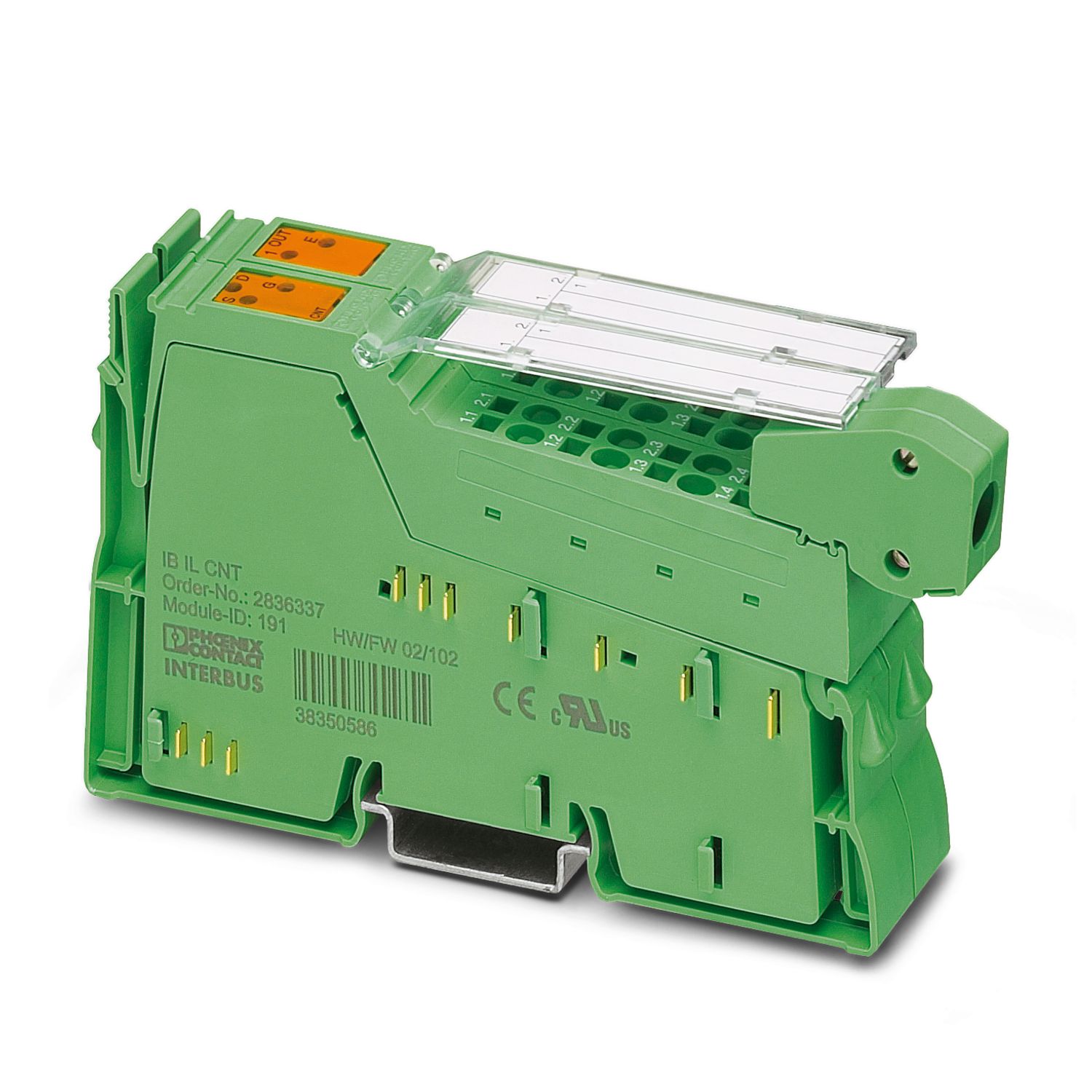

Phoenix IB IL RS 485/422-PRO-PAC-Communication module 2863627,Inline, communication terminal, interface RS-485,RS-422: 1 (can be operated at the same time), communication through process data, local bus transmission rate: 500 kBit/s, protection level: IP20, including Inline connector and tag strip
width
24.4mm
height
135mm
depth
71.5mm
Description
Application Description
Application Description
for industrial applications only
Use Restrictions
CCCex Description
is not permitted in China for use in potentially explosive areas.
Interface
Inline Local Bus
interfaces
2
Connection Mode
Inline data span block
transmission speed
500 kBit/s
RS-485,RS-422
interfaces
1 (can operate simultaneously)
Connection Mode
pull-back spring connection
Connection Method Considerations
use shielded cables.
transmission speed
110 Bit/s ... 38400 Bit/s (parameterizable)
transmission principle
copper cable
Supported Protocols
Transparent, End-to-End, XON/XOFF, Double Buffered, 3964R,Movilink
terminal resistance
Typical 120 Ω (active, integrated)
data bit
7 or 8
stop position
1 or 2
Input Buffer
4 kByte
Output Buffer
1 kByte
System Properties
Module
ID Code (dec.)
191
Hex ID Encoding
BF
Length Encoding (Hexadecimal)
06
length encoding (decimal)
06
Process Data Channel
96.
Input Address Area
12 Byte
Output Address Area
12 Byte
Register Length
96.
the required parameter data
1 Byte
5 Byte
Product Properties
Product Type
I/O components
Product Series
Inline
type
Module
Scope of supply
includes Inline connector and marker strip
Mode of operation
process data is 6 words
special nature
Communication via Process Data
insulation characteristics
Overvoltage Category
II (IEC 60664-1,EN 60664-1)
pollution level
2 (IEC 60664-1,EN 60664-1)
Electrical characteristics
rated conditions
2W
potential: communication power supply (UL )
supply voltage
7.5V DC (across the power supply)
current consumption
maximum 260 mA (all connections of the serial interface are shorted)
Typical 170 mA
electrical isolation/isolation for voltage range
test voltage: RS-485/422 interface/7.5V power supply (bus logic)
500V AC, 50 Hz, 1 min
test voltage: RS-485/422 interface/24V power supply (I/O)
500V AC, 50 Hz, 1 min
test voltage: RS-485/422 interface/function ground
500V AC, 50 Hz, 1 min
test voltage: 7.5V power supply (bus logic)/24V power supply (I/O)
500V AC, 50 Hz, 1 min
test voltage: 7.5V supply (bus logic)/function ground
500V AC, 50 Hz, 1 min
test voltage: 24V supply (I/O)/function ground
500V AC, 50 Hz, 1 min
