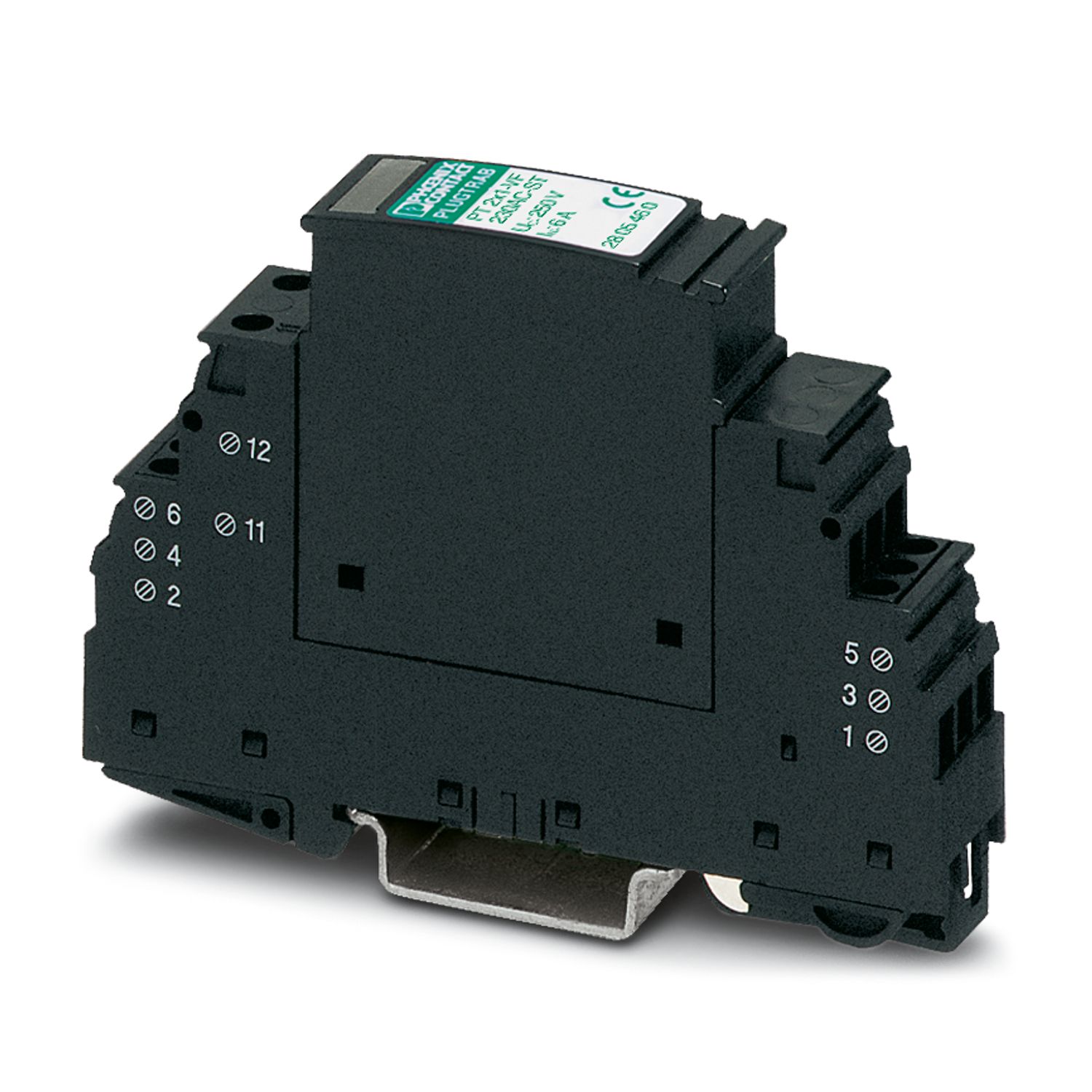

Phoenix PT 2-TELE-surge protector 2882828, surge protector, including plug and base element, for the protection of analog and digital telecommunications interface two-wire (VDSL to 50 Mbps, short path (< 300 m) to 100 Mbps).

Product Type Information Technology
Product Series PLUGTRAB PT
IEC Category B2
C1
C2
C3
D1
type DIN rail module, split, detachable
Bits 2
Surge protection fault alarm None
line pairs per module 1
insulation characteristics
Overvoltage Category III
pollution level 2

Rated voltage UN 185V DC
130V AC

Connection Mode screw connection
thread M3
Tightening torque 0.5 Nm
Flexible Wire Cross Section 0.2 mm² ... 2.5 mm²
Rigid conductor cross section 0.2 mm² ... 4 mm²
Attachable Guide Cross Section AWG 24 ... 12

Dimensional drawing
width 17.7mm
height 90mm
depth 65.5mm
Horizontal stitch pitch 1 Partition

color black (RAL 9005)
black (RAL 9005)
flame retardant rating, according to UL 94 V-0
Shell Material PA 6.6

Mechanical parameters
Open Side Panel No

movement direction Line-Line & Line-Earth Ground
Maximum continuous voltage Uc 185V DC
130V AC
Rated current 450 mA AC (45 °C)
130 mA DC (45 °C)
UC, the effective working current IC ≤ 10 &micro;A
Residual Flow IPE ≤ 10 &micro;A
Nominal discharge current In(8/20) & micro;s (core-core) 10 kA
Rated discharge current In(8/20)& micro;s (core-ground) 10 kA
pulse discharge current Iimp(350) & micro;s (core-core) 1 kA
pulse discharge current Iimp(350) & micro;s (core-ground) 1 kA
Total discharge current Itotal(8/20) &micro;s 18 kA
Maximum discharge current Imax(8/20) & micro;s (core-ground) 18 kA
rated power pulse current lan (700)& micro;s (core-core) 100 A
rated power pulse current lan (700)& micro;s (core-ground) 100 A
Output voltage limit 1 kV/& micro;s (core-to-core) peak ≤ 300V
Output voltage limit 1 kV/& micro;s (core-ground) peak ≤ 300V
Output voltage limit 1 kV/& micro;s (core-core) static ≤ 300V
Output voltage limit 1 kV/& micro;s (core-ground) static ≤ 300V
Residual voltage ln,(wire-wire) ≤ 160V (C2 - 10 kV / 5 kA)
Residual voltage ln,(wire-ground) ≤ 200V (C2 - 10 kV / 5 kA)
voltage protection level Up(core-core) ≤ 250V (B2 - 1 kV / 25 A)
≤ 300V (B2 - 4 kV / 100 A)
≤ 270V (C1 - 1 kV / 500 A)
≤ 300V (C2 - 2 kV/1 kA)
≤ 320V (C2 - 4 kV / 2 kA)
≤ 330V (C2 - 10 kV / 5 kA)
voltage protection level Up(line-ground) ≤ 250V (B2 - 1 kV / 25 A)
≤ 300V (B2 - 4 kV / 100 A)
≤ 270V (C1 - 1 kV / 500 A)
≤ 300V (C2 - 2 kV/1 kA)
≤ 320V (C2 - 4 kV / 2 kA)
≤ 330V (C2 - 10 kV / 5 kA)
response time tA(core-core) ≤ 500 ns
response time tA (core-ground) ≤ 500 ns
input attenuation AE, symmetric. Typical 0.4 dB (≤ 5 MHz / 100 Ω)
cut-off frequency fg(3 dB),100 Ω symmetric system Typical 20 MHz
capacitance (core-core) Typical 30 pF (f = 1 MHz/VR= 0 V)
capacitance (core-ground) Typical 30 pF (f = 1 MHz/VR= 0 V)
the resistance of each path 2.2 Ω ± 10%
Surge protection fault alarm None
Impact tolerance (line-line) B2 - 4 kV / 100 A
C1 - 1 kV / 500 A
C2 - 10 kV / 5 kA
C3 - 25 A
D1 - 1 kA
Impact resistance (line-ground) B2 - 4 kV / 100 A
C1 - 1 kV / 500 A
C2 - 10 kV / 5 kA
C3 - 25 A
D1 - 1 kA
2805460
