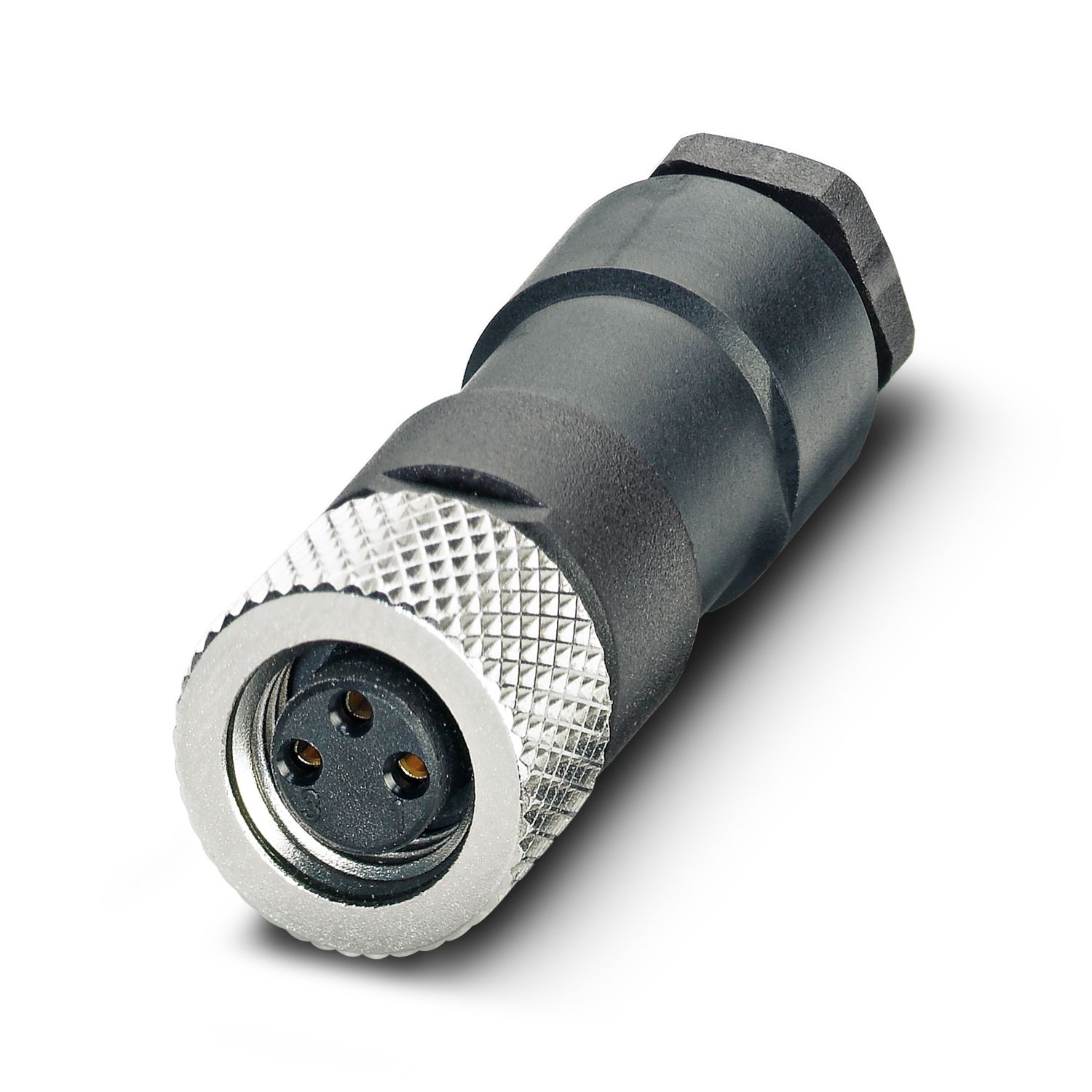

Phoenix SACC-M 8FS-3CON-M-connector 1681172, connector, universal, 3-position, hole type straight head M8, code: A, welding, coil material: nickel-plated copper, cable outer diameter 3.5mm ... 5mm
| Product Type | Circular connector (cable side) |
| Sensor Type | General |
| Bits | 3 |
| Outlet No. | 1 |
| Shielding | None |
| coding | A |
| cable outlet | straight head |
| insulation characteristics | |
| Overvoltage Category | II |
| pollution level | 3 |
| Dimensional drawing | |
| Length | 37mm |
| External dimensions | |
| outside diameter | 3.5mm ... 5mm |
| shell | |
| diameter shell | 12mm |
| flame retardant rating, according to UL 94 | HB |
| sealing material | NBR |
| Fixture body material | PBT |
| Contact Material | CuZn |
| Material Contact Surface | Au |
| Contact Carrier Material | PA |
| screw connection material | nickel-plated copper |
| Wire Connection | |
| Connection Mode | welding |
| Wiring cross section | 0.08 mm² ... 0.25 mm² (flexible) |
| 0.08 mm² ... 0.25 mm² (rigid) | |
| Connectable Wire Cross Section AWG | 28 ... 24 (flexible) |
| 28 ... 24 (rigid) | |
| the stripping length of a single wire | 3mm |
| Tightening torque | 0.2 Nm (M8 coil) |
| Rated overvoltage | 0.8 kV |
| contact resistance | ≤ 3 mΩ |
| insulation resistance | ≥ 100 MΩ |
| Rated voltage UN | 48V AC |
| 60V DC | |
| Rated current IN | 4 A |
| Mechanical parameters | |
| Insertion/unplugging cycle | ≥ 100 |
| connection 1 | |
| Socket Design | hole type |
| socket | straight head |
| socket thread type | M8 |
| coding | A |
| Signal Type/Classification | General |
| Stripping Length of a Single Wire | 3mm |
| environmental conditions | |
| protection level | IP67 |
| ambient temperature (operation) | -40°C ... 85°C |
Phoenix SACC-M 8FS-3CON-M-Connector 1681172
