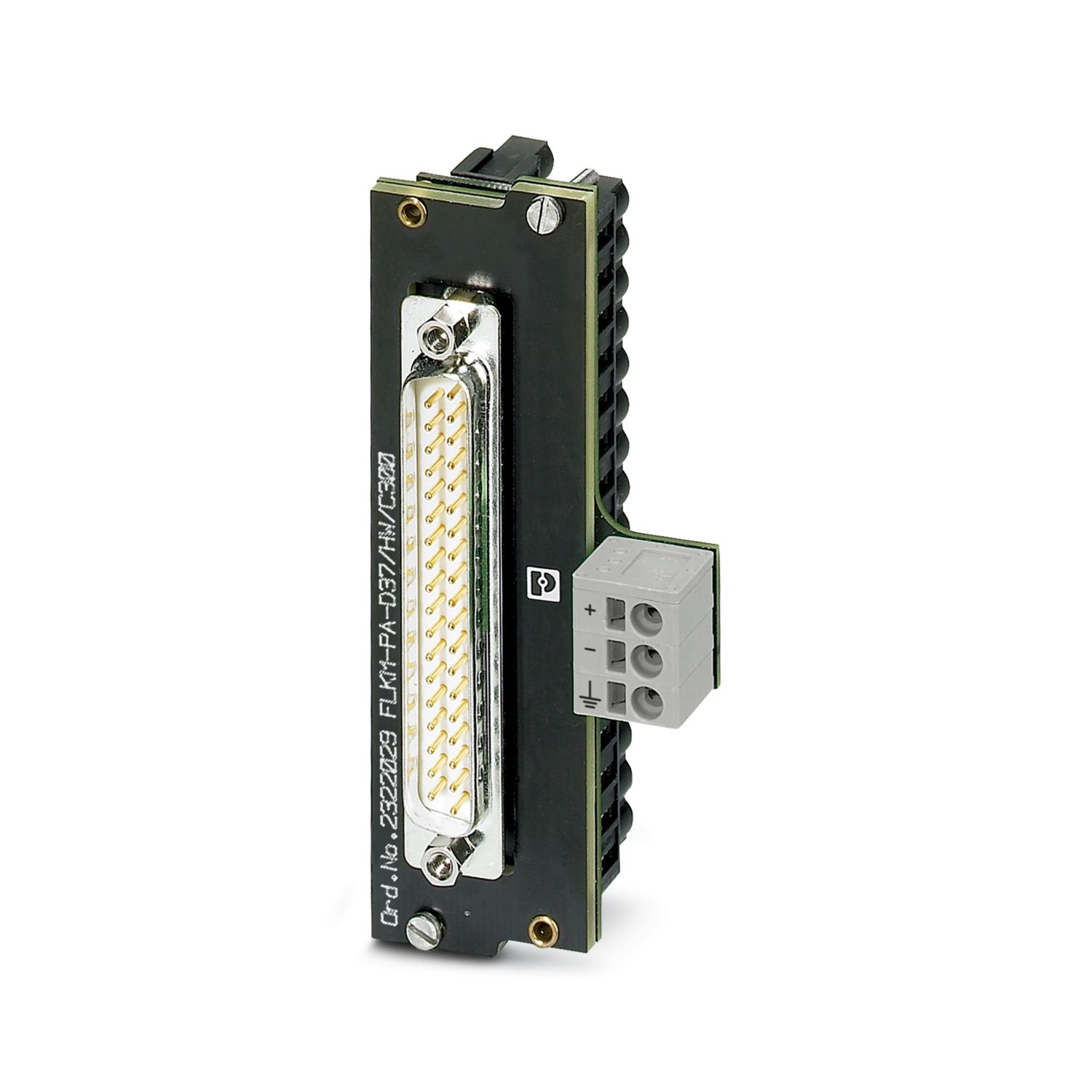

Phoenix FLKM-PA-D37/HW/C300-Card front adapter 2322029,VARIOFACE front adapter, used for Honeywell C300,C I/O series, up to 1 16-channel (37-bit D-SUB connector) can be connected.
| Product Type | Card Front Adapter |
| Product Series | VARIOFACE |
| insulation characteristics: electrical clearance and creepage distance | |
| insulation | Functional insulation |
| Overvoltage Category | II |
| pollution level | 2 |
| Nominal operating voltage (AC) | ≤ 30V AC |
| Nominal operating voltage (DC) | ≤ 60V DC |
| current (per branch) | ≤ 1 A |
| current (per interface, independent power supply) | ≤ 4 A |
| electrical clearance and creepage distance | |
| Rated insulation voltage | 63V |
| Rated overvoltage | 0.6 kV (1.2 / 50 μs) |
| Supported Controller HONEYWELL Experion PKS C300/C-Series | |
| Applicable I/O Card | TDIL01 (non-redundant) |
| TDOB01 (non-redundant) | |
| Interface 1 (Control Layer) | |
| Connection Mode | in-line connection |
| connection quantity | 2 |
| Bits | 16 |
| needle pitch | 5.08mm |
| interface 2 (field side) | |
| connection meets standards | IEC 60807-2 |
| Connection Mode | D-SUB Pin Connectors |
| thread | UNC 4-40 |
| connection quantity | 1 |
| Bits | 37 |
| Insertion/unplugging cycle | > 500 |
| needle pitch | 2.77mm |
| interface 3 (power supply) | |
| Connection Mode | In-line spring connection |
| stripping length | 10mm |
| Bits | 3 |
| Rigid conductor cross section | 0.2 mm² ... 4 mm² |
| Flexible Wire Cross Section | 0.2 mm² ... 2.5 mm² |
| 0.25 mm² ... 2.5 mm² (cold press head without plastic sleeve) | |
| 0.25 mm² ... 1.5 mm² (cold press head with plastic sleeve) | |
| Connectable Guide Cross Section AWG | 24 ... 12 |
| needle pitch | 5mm |
| Product Size | |
| width | 93.8mm |
| height | 43.5mm |
| depth | 48.3mm |
| environmental conditions | |
| protection level (module) | IP00 |
| protection level (installation position) | ≥ IP54 |
| ambient temperature (operation) | -20°C ... 70°C |
| ambient temperature (storage/transport) | -20°C ... 70°C |
| elevation | ≤ 2000 m |
| electrical clearance and creepage distance | |
| Standards/Regulations | EN IEC 60664-1 |
| Installation Type | plug-in installation |
| Installation position | arbitrary |
Phoenix FLKM-PA-D37/HW/C300-Card Front Adapter 2322029
