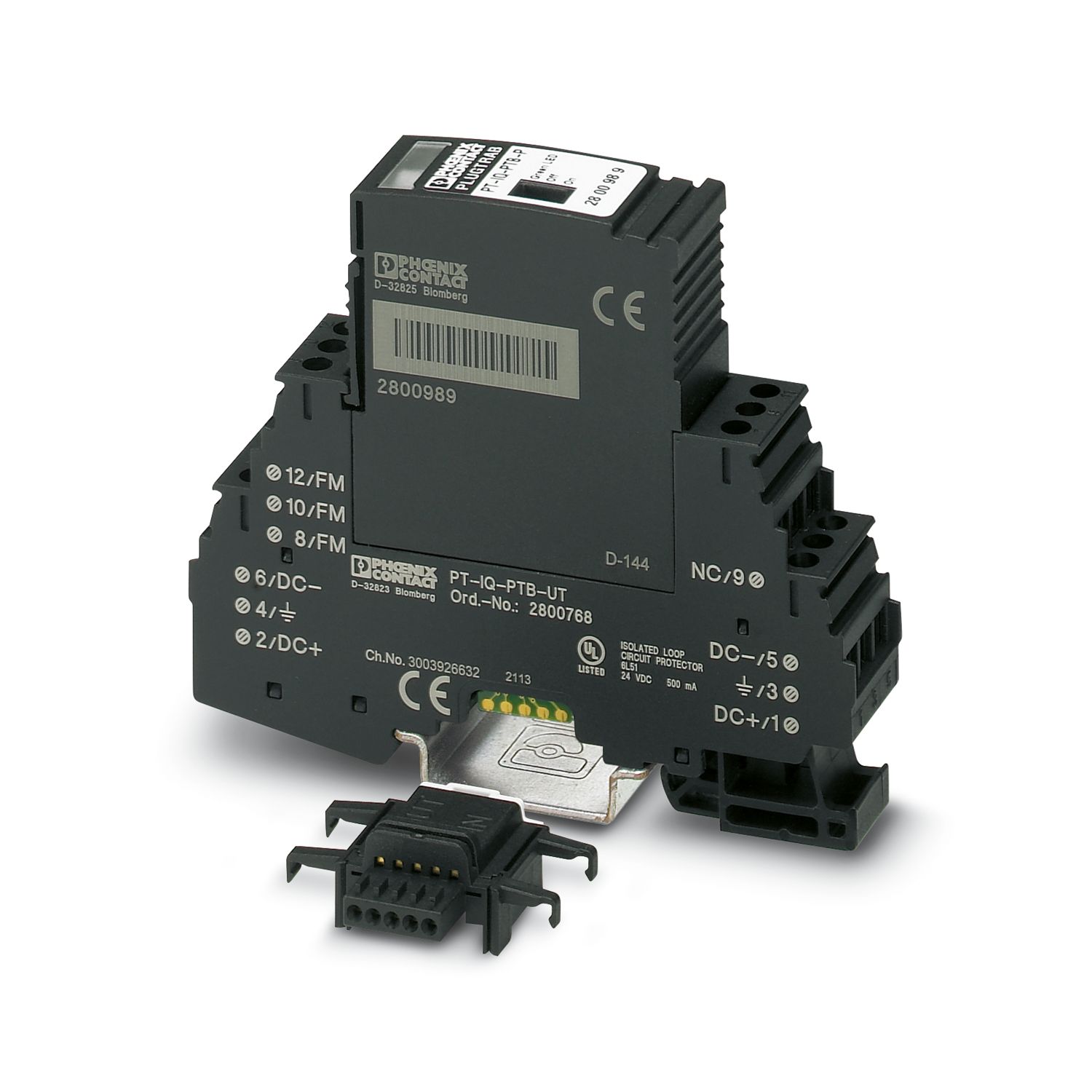

Phoenix PT-IQ-PTB-UT-surge protector 2800768, suitable for multi-stage floating remote signaling of power supplies and connected surge protection modules.
| Product Type | measurement and control technology |
| product series | PLUGTRAB IQ |
| type | DIN rail module, split, detachable |
| insulation characteristics | |
| Overvoltage Category | II |
| pollution level | 2 |
| indicator/remote signaling | |
| switching function | 2 N/C contacts |
| Power: Status Indicator/Remote | |
| Nominal operating voltage | 20V DC ... 30V DC |
| Rated current | Maximum 130 mA (24V DC) |
| Max 160 mA (20V DC) | |
| 500 mA (T) | |
| Number of surge protection modules that can be installed side by side | 28 (32°C) |
| Connection Mode | screw connection |
| thread | M3 |
| Tightening torque | 0.5 Nm |
| Flexible Wire Cross Section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor cross section | 0.2 mm² ... 4 mm² |
| Attachable Guide Cross Section AWG | 24 ... 12 |
| elevation | ≤ 2000 m (amsl) |
| ambient temperature (operation) | -40°C ... 50°C (T6) |
| -40°C ... 70°C (T4) | |
| Number of surge protection modules that can be installed side by side | maximum 10 |
| working voltage | 20V DC ... 30V DC |
| Rated current IN | maximum 130 mA (at 20V DC) |
| Maximum input voltage Um | 35V DC |
| maximum switching voltage Um | 60V DC |
| Dimensional drawing | |
| width | 17.7mm |
| height | 91.1mm |
| depth | 77.5mm (7.5mm with DIN rail) |
| Horizontal stitch pitch | 1 Partition |
Phoenix PT-IQ-PTB-UT-Surge Protector 2800768
