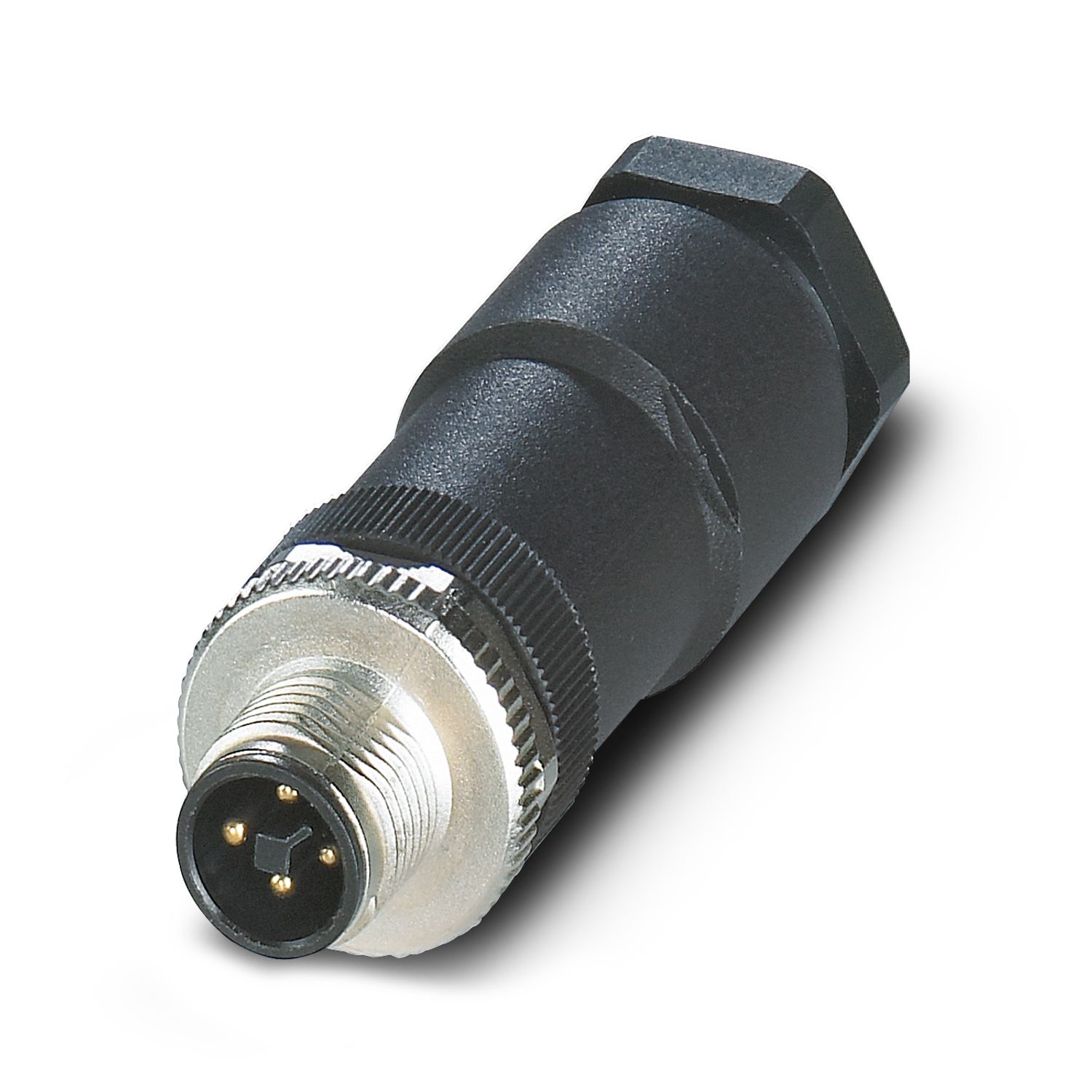

Phoenix SACC-M12MS-8CON-PG9-M-connector 1513334, connector, universal, 8-position, plug straight head M12, code: A, screw connection, coil material: nickel-plated copper, cable seal Pg9, cable outer diameter 6mm ... 8mm
| Product Type |
Circular connector (cable side) |
| Sensor Type |
General |
| Bits |
8 |
| Outlet No. |
1 |
| Shielding |
None |
| coding |
A |
| Pg screw connection |
Pg9 |
| insulation characteristics |
| Overvoltage Category |
II |
| pollution level |
3 |
| Dimensional drawing |
|
| width |
20mm |
| height |
20mm |
| length |
60mm |
| Joint nut wrench specifications |
16mm |
| wrench size, countersunk nut |
17mm |
| External dimensions |
| outside diameter |
6mm ... 8mm |
| shell |
| diameter shell |
20mm |
| flame retardant rating to UL 94 |
HB |
| sealing material |
silicon |
| Fixture body material |
PBT |
| Contact Material |
CuZn |
| Material Contact Surface |
Au |
| Contact Carrier Material |
PA |
| screw connection material |
nickel-plated copper |
| Wire Connection |
| Connection Mode |
screw connection |
| Wiring cross section |
0.25 mm² ... 0.5 mm² (without cold head) |
| 0.14 mm² ... 0.34 mm² (with cold press head) |
| 0.25 mm² ... 0.5 mm² (rigid) |
| Connectable Wire Cross Section AWG |
24 ... 20 (without cold head) |
| 26 ... 22 (with cold pressing head) |
| the stripping length of a single wire |
5mm |
| Tightening torque |
0.4 Nm (M12 coil) |
| 0.2 Nm (screw terminal block) |
| 1 Nm (compression screw and plug housing) |
| Rated overvoltage |
0.8 kV |
| contact resistance |
≤ 8 mΩ |
| insulation resistance |
≥ 100 MΩ |
| Rated voltage UN |
30V AC |
| 30V DC |
| Rated current IN |
2 A |
| Mechanical parameters |
| Insertion/unplugging cycle |
≥ 100 |
| connection 1 |
| Socket Design |
PLUG |
| socket |
straight head |
| socket thread type |
M12 |
| coding |
A |
