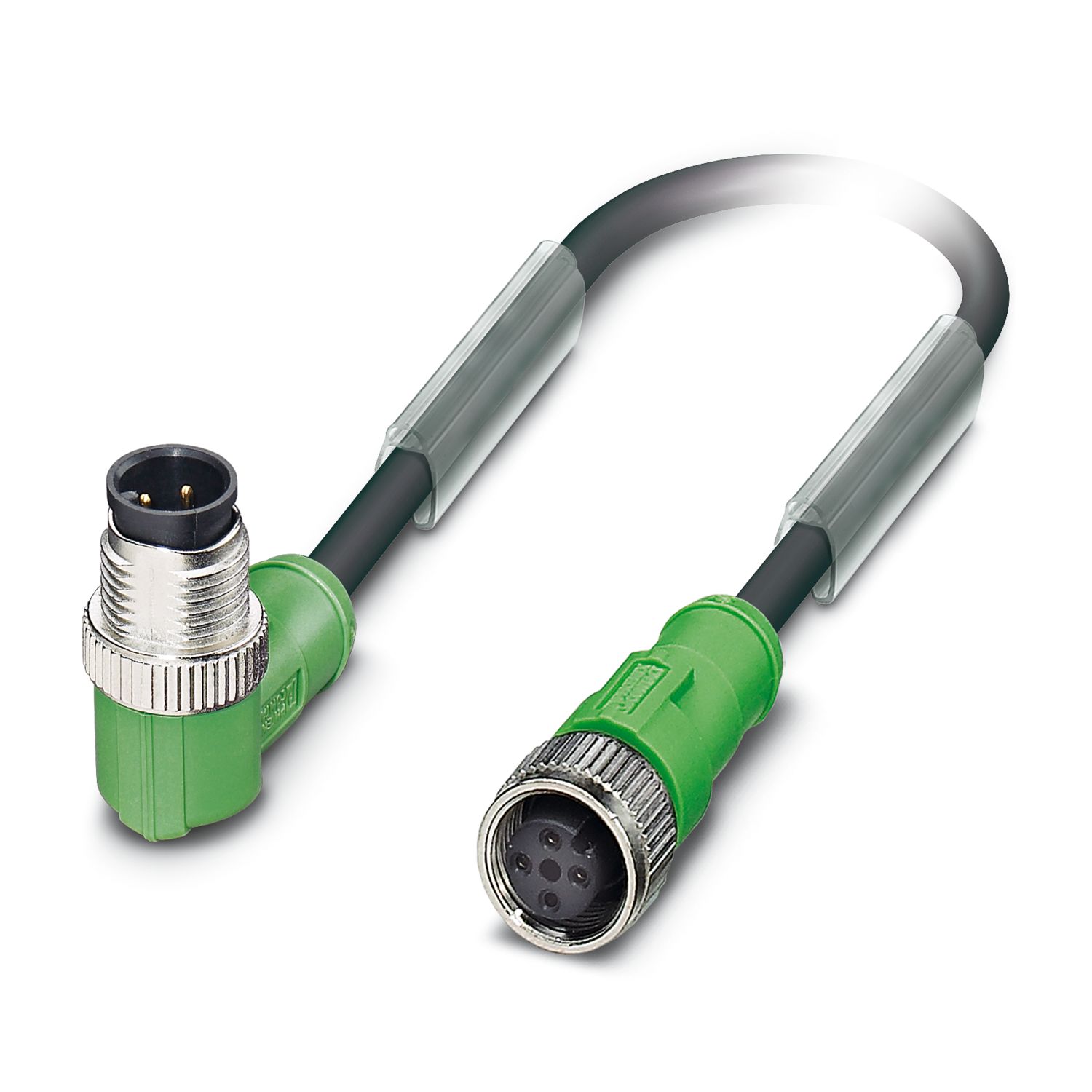

Phoenix SAC-3P-M 8MS/0,6-PUR/M12FR-sensor/actuator cable 1682359, sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, plug straight M8, code: A, with hole elbow M12, code: A, cable length: 0.6 m
| Product Type |
Sensor/Actuator Cable |
| Application |
standard |
| Bits |
3 |
| Outlet No. |
1 |
| Shielding |
None |
| coding |
A |
| insulation characteristics |
| Overvoltage Category |
II |
| pollution level |
3 |
| flame retardant rating, according to UL 94 |
HB |
| sealing material |
NBR |
| Fixture body material |
TPU, high flame retardancy, self-extinguishing properties |
| Contact Material |
CuSn |
| Material Contact Surface |
Ni/Au |
| Contact Carrier Material |
TPU GF |
| screw connection material |
zinc cast, nickel plated |
| insulation resistance |
≥ 100 MΩ |
| Rated voltage UN |
48V AC |
| 60V DC |
| Rated current IN |
4 A |
| Mechanical parameters |
| Insertion/unplugging cycle |
≥ 100 |
| Status Display |
None |
| Status Display |
No |
| Wire Connection |
| Tightening torque |
0.4 Nm (M12 plug connector) |
| 0.2 Nm (M8 connector) |
| connection 1 |
| type |
plug straight M8 |
| Bits |
3 |
| Error-proofing code type |
A |
| Connection 2 |
| type |
Hole Elbow M12 |
| Bits |
3 |
| Error-proofing code type |
A |
| Cable Length |
0.6 m |
| Halogen-free PUR Black [PUR] |
| Dimensional drawing |
|
| Cable Weight |
18 kg/km |
| UL AWM |
20549 / 10493 (80°C/300 V) |
| Bits |
3 |
| Shielding |
None |
| Cable Type |
Halogen-free PUR Black [PUR] |
| wire structure signal line |
32x 0.10mm |
| AWG, signal wire |
24 |
| Wire Cross Section |
3x 0.25 mm² (signal line) |
| wire diameter, including insulation |
1.17mm ± 0.02mm |
| Cable outer diameter |
3.60mm ± 0.15mm |
| outer sheath, material |
PUR |
| outer sheath, color |
Black-Grey RAL 7021 |
| Wire Material |
copper stranded wire |
| wire insulation material |
PP |
| single line, color |
brown, blue, black |
| thickness, insulation |
≥ 0.21mm (core insulation) |
| thickness, outer sheath |
approx. 0.50mm |
| Total Strand |
3 wire, stranded |
| Strand Length, Total Strand |
40mm |
| Maximum conductor resistance |
≤ 78 Ω/km (at 20°C) |
| insulation resistance |
≥ 100 GΩ * km (at 20°C) |
| Rated voltage, cable |
≤ 300V |
| Test Voltage |
≥ 3000V |
