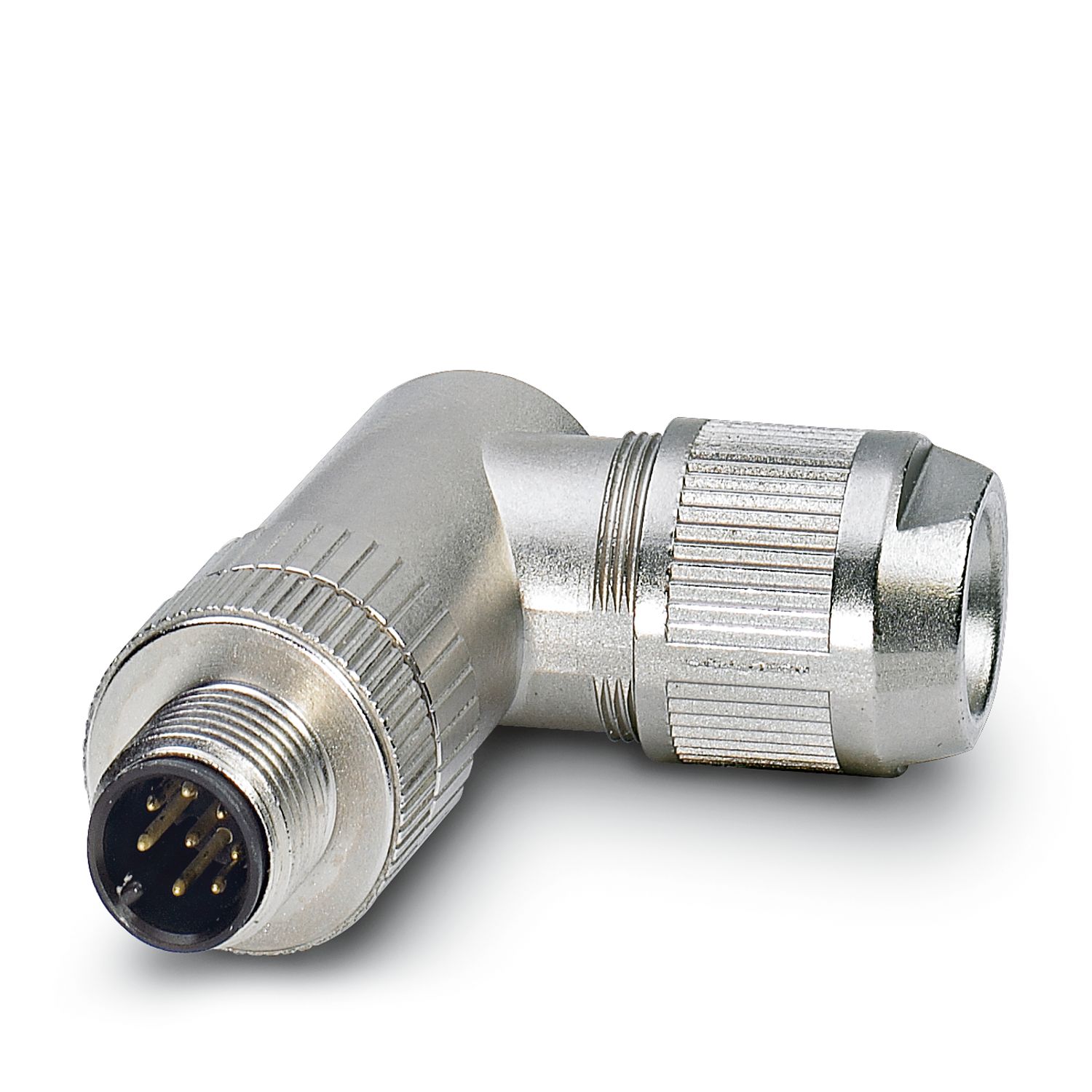

Phoenix SACC-M12MR-8Q SH-data connector 1553653, data connector, Ethernet CAT5 (1 Gbps),8-position, shielding, plug elbow M12, code: A, quick and non-stripping connection, coil material: nickel-plated copper, Cable outer diameter 4mm ... 8mm
| Assembly Instructions |
connector can be rotated 45 ° to the outlet |
| Product Type |
Circular connector (cable side) |
| Application |
data |
| Sensor Type |
Ethernet |
| Bits |
8 |
| Outlet No. |
1 |
| Shielding |
have |
| coding |
A |
| cable outlet |
elbow |
| insulation characteristics |
| Overvoltage Category |
II |
| pollution level |
3 |
| Dimensional drawing |
|
| Length |
50mm |
| External dimensions |
| outside diameter |
4mm ... 8mm |
| shell |
| diameter shell |
19mm |
| flame retardant rating, according to UL 94 |
V0 |
| sealing material |
neoprene rubber |
| Fixture body material |
zinc cast, nickel plated |
| Contact Material |
CuSn |
| Material Contact Surface |
Ni/Au |
| Contact Carrier Material |
PA 6 |
| screw connection material |
nickel-plated copper |
| Wire Connection |
| Connection Mode |
Quick wire-free connection |
| wiring cross section |
0.14 mm² ... 0.34 mm² (rigid) |
| 0.14 mm² ... 0.34 mm² (rigid) |
| Connectable Wire Cross Section AWG |
26 ... 22 |
| Tightening torque |
0.4 Nm (M12 coil) |
| 0.8 Nm (connector with connecting sleeve) |
| 3 Nm (gland nut with connecting sleeve) |
| Rated overvoltage |
0.8 kV |
| contact resistance |
≤ 5 mΩ |
| insulation resistance |
≥ 100 MΩ |
| Rated voltage UN |
30V AC |
| 30V DC |
| Rated current IN |
2 A |
| Mechanical parameters |
| Insertion/unplugging cycle |
≥ 100 |
| connection 1 |
| Socket Design |
PLUG |
| socket |
elbow |
| socket thread type |
M12 |
| coding |
A |
| Signal Type/Classification |
Ethernet CAT5 (based on IEC 11801), 1 Gbps |
| environmental conditions |
| protection level |
IP67 |
| Ambient temperature (operation) |
-40°C ... 85°C (pin/hole) |
| ambient temperature (assembly) |
-5°C ... 50°C |
