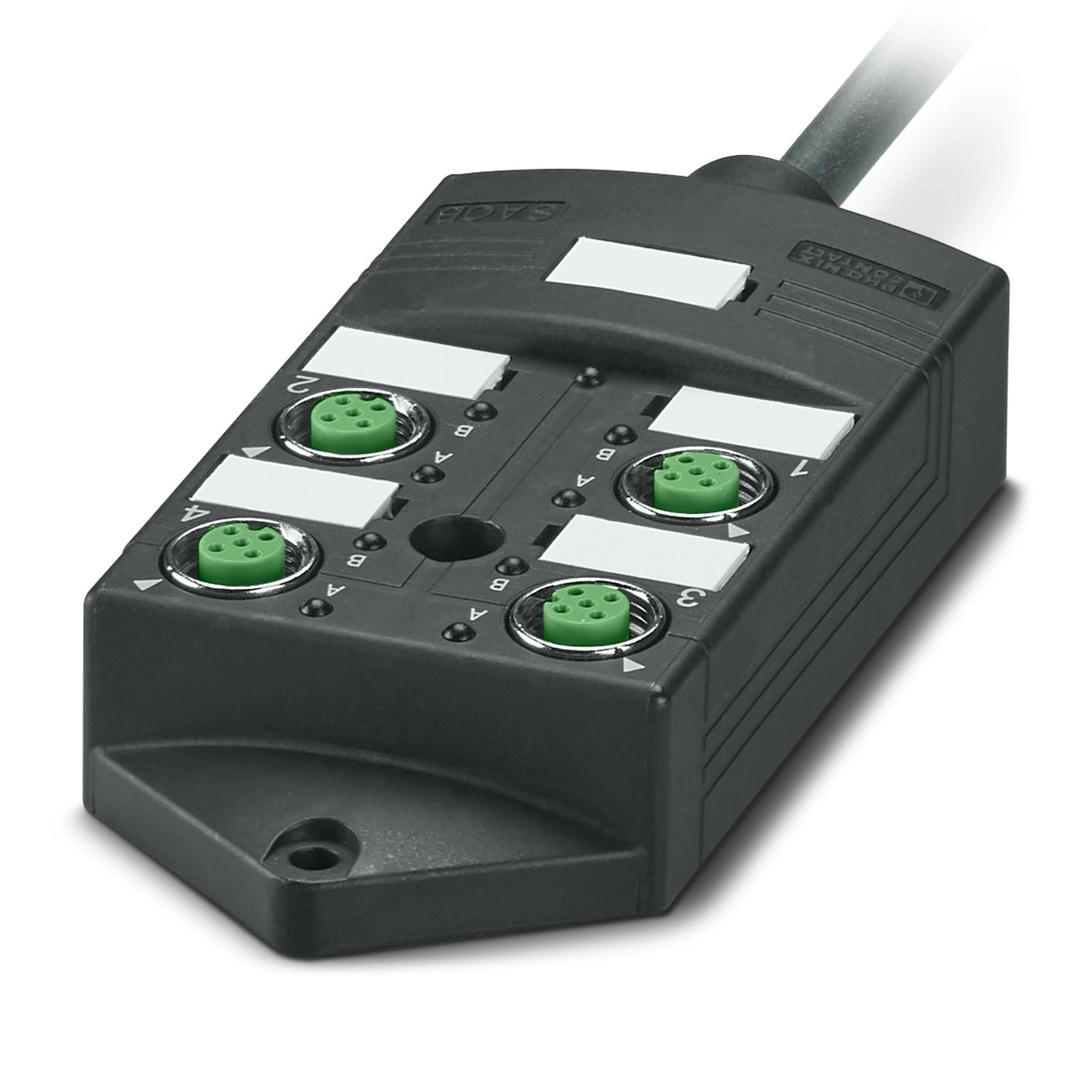

Phoenix SACB-4/ 4-L-10,0PUR SCO P-junction box 1452589, junction box, application: standard, connection mode: M12 hole plastic, number of slots: 4, number of digits: 4, code: A, slot type: single channel, status display: Yes, PNP; Main cable connection: fixed connection 180, PUR/PVC, cable length: 10 m, shield: none
| Product Type |
breakout box |
| Application |
standard |
| Bits |
4 |
| slots |
4 |
| coding |
A |
| LED |
is |
| Local Diagnostics |
| monitoring function |
supply voltage |
| optical display |
Green LED Light |
| Maximum operating voltage Umax |
30V DC |
| Local Diagnostics |
supply voltage green LED light |
| Status Display I/O Yellow LED |
| Rated voltage UN |
24V DC |
| Total constant current |
12 A |
| the maximum current carrying capacity of each path |
2 A |
| current load capacity per slot |
4 A |
| Wire Connection |
| Sensor/Actuator Attachment System |
M12 hole type |
| sensor/actuator cable tightening torque with slotted connection block |
0.4 Nm |
| tightening torque for securing housing mounting screws |
0.5 Nm |
| Pin Position Assignment |
| slot/core = wire color or connection |
1 / 4 (A) = WH |
| 2 / 4 (A) = GN |
| 3 / 4 (A) = YE |
| 4 / 4 (A) = GY |
| 1-4 / 1 ( 24 V) = BN |
| 1-4 / 3 (0 V) = BU |
| 1-4 / 5 (PE) = GNYE |
| Dimensional drawing |
|
| width |
54mm |
| height |
23mm |
| length |
117mm |
| identification material threaded sleeve |
PBT |
| Identification Material Shell |
PBT |
| Marking material Molding material |
PUR |
| flame retardant rating, according to UL 94 |
V0 |
| sealing material O-ring |
NBR |
| Contact Material |
CU alloy |
| Material Contact Surface |
gold-plated |
| Contact Carrier Material |
PA |
| Cable Length |
10 m |
| PUR/PVC Black [PUR] |
| Dimensional drawing |
|
| Cable Weight |
77.9 kg/km |
| UL AWM |
20549 |
| Bits |
7 |
| Shielding |
None |
| Cable Type |
PUR/PVC Black [PUR] |
| wire structure signal line |
19x 0.15mm |
| AWG, signal wire |
22 |
| wire structure, voltage power supply |
42x 0.15mm |
| AWG Power Supply |
18 |
| Wire Cross Section |
4x 0.34 mm² (signal line) |
| 3x 0.75 mm² (power cord) |
| wire diameter, including insulation |
1.3mm ± 0.1mm (signal line) |
| 1.8mm ± 0.1mm (power cord) |
| Cable outer diameter |
6.90mm ± 0.2mm |
| outer sheath, material |
PUR |
| outer sheath, color |
Black RAL 9005 |
| Wire Material |
copper stranded wire |
