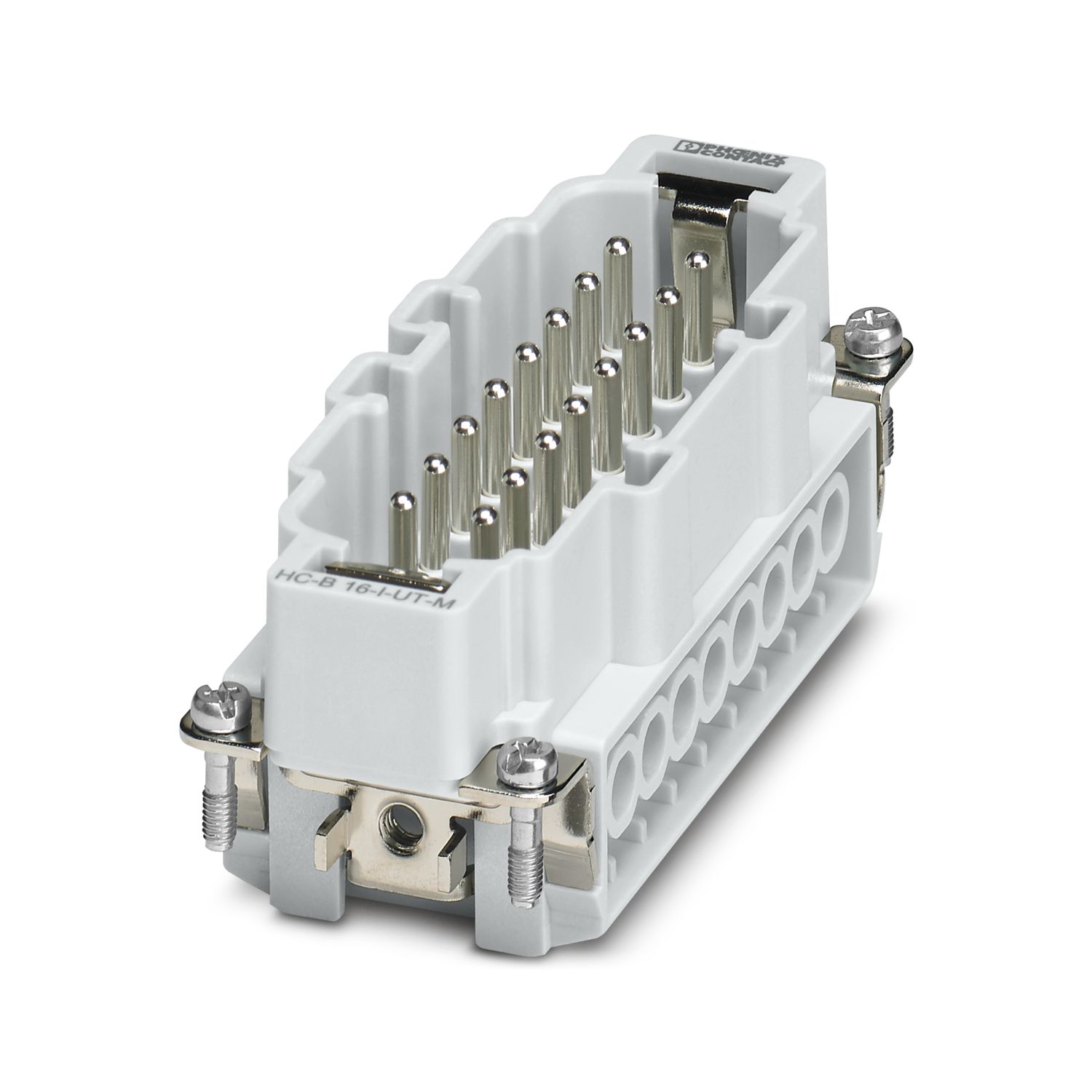

Phoenix HC-B 16-I-UT-M-ferrule 1648238, ferrule, number of bits: 16 PE, size: B16, number of connections per bit: 1, pin plug, screw connection, 500V,16 A, 0.5 mm2 ... 2.5 mm2, application: power supply
Overview
for flexible leads with or without cold press head
Overview
The connector can only be plugged and unplugged when there is no load/voltage.
Assembly Instructions
To ensure proper use, it must be installed in an enclosure with at least IP54 protection
Product Type
ferrule with fixed number of cores
Series
HC-B
Application
power supply
type
B16
B32
Bits
16
Connection Chart
16 PE
contact coding
1 - 16
Number of connections per bit
1
Contact Type
turning
screwdriver blade
0.5 x 3.5mm
insulation characteristics
Overvoltage Category
III
pollution level
3
Dimensional drawing
width
34mm
height
32mm
length
84mm
drilling distance, horizontal
77.5mm
drilling distance, vertical
27mm
mechanical characteristics
Contact diameter
2.5mm
connection technology
connection system
screw connection
Number of connections per bit
1
connection meets standards
IEC / EN
Wire Connection
Wire Cross Section
0.5 mm² ... 2.5 mm²
Connectable Wire Cross Section AWG
20 ... 14
Tightening torque
0.8 Nm ... 1.2 Nm (PE connection)
0.5 Nm ... 0.8 Nm (mounting screws for mounting in HEAVYCON housing)
