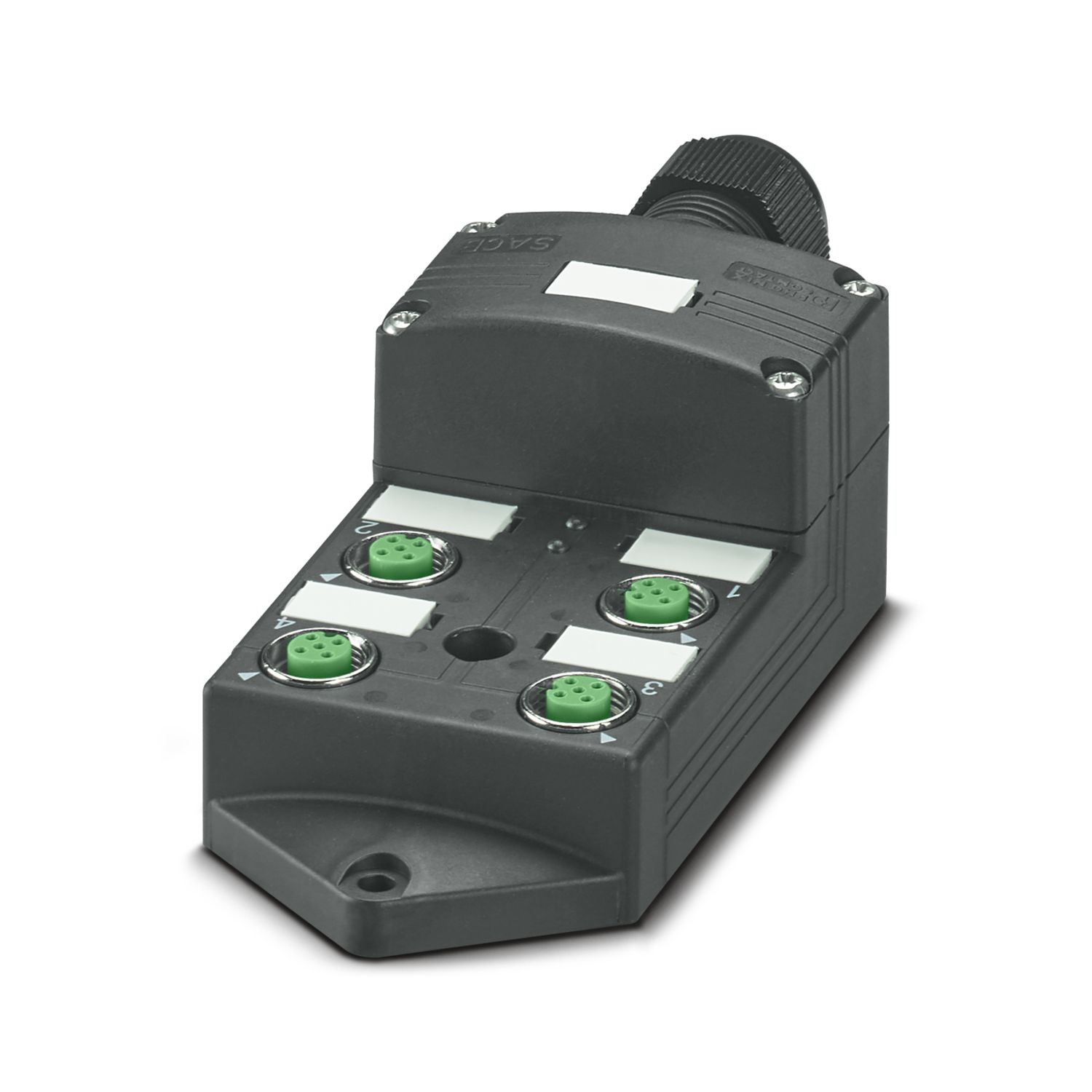

Phoenix SACB-4/ 8-C SCO SELECT-junction box 1437258, junction box, wiring method: M12 hole metal, number of slots: 4, number of digits: 5, code: A, slot type: parallel, status Display: No, universal; main cable connection: pluggable screw connection 180 °, shielding: none

Product Type junction box
Bits 5
slots 4
coding A
LED No

Rated voltage UN 48V AC
60V DC
Total constant current 10 A
the maximum current carrying capacity of each path 2 A
current load capacity per slot 4 A

Wire Connection
Sensor/Actuator Attachment System M12 hole type
wire cross-section flexible signal wire 0.14 mm² ... 1.5 mm²
conductor cross section 0.14 mm² ... 1.5 mm²
can be connected to the wire cross section AWG flexible signal wire 26 ... 16
can be connected to the wire cross section AWG flexible power supply 26 ... 16
stripping length signal wire 7mm
tightening torque, cover plate screw 0.35 Nm
sensor/actuator cable tightening torque with slotted connection block 0.4 Nm
tightening torque for securing housing mounting screws 0.5 Nm
joint nut tightening torque 2.5 Nm
Pin Position Assignment
slot/core = wire color or connection 1/1=1/1
1/2=1/2
1 / 3=1 / 3
1/4=1/4
1/5=1/5
2/1=2/1
2/2=2/2
2 / 3=2 / 3
2 / 4=2 / 4
2/5=2/5
3/1=3/1
3/2=3/2
3 / 3=3 / 3
3 / 4=3 / 4
3 / 5=3 / 5
4/1=4/1
4/2=4/2
4/3=4/3
4/4=4/4

Status Display No

Dimensional drawing
width 58mm
height 45mm
length 117mm

identification material threaded sleeve Zinc Die Casting
Identification Material Shell PBT
Marking material Molding material PUR
flame retardant rating, according to UL 94 V0
sealing material O-ring NBR
Contact Material CU alloy
Material Contact Surface gold-plated
Contact Carrier Material PA
contact material, main cable end copper alloy
Main cable side contact ferrule material PA 6.6 V0
contact surface material, main cable end gold-plated
