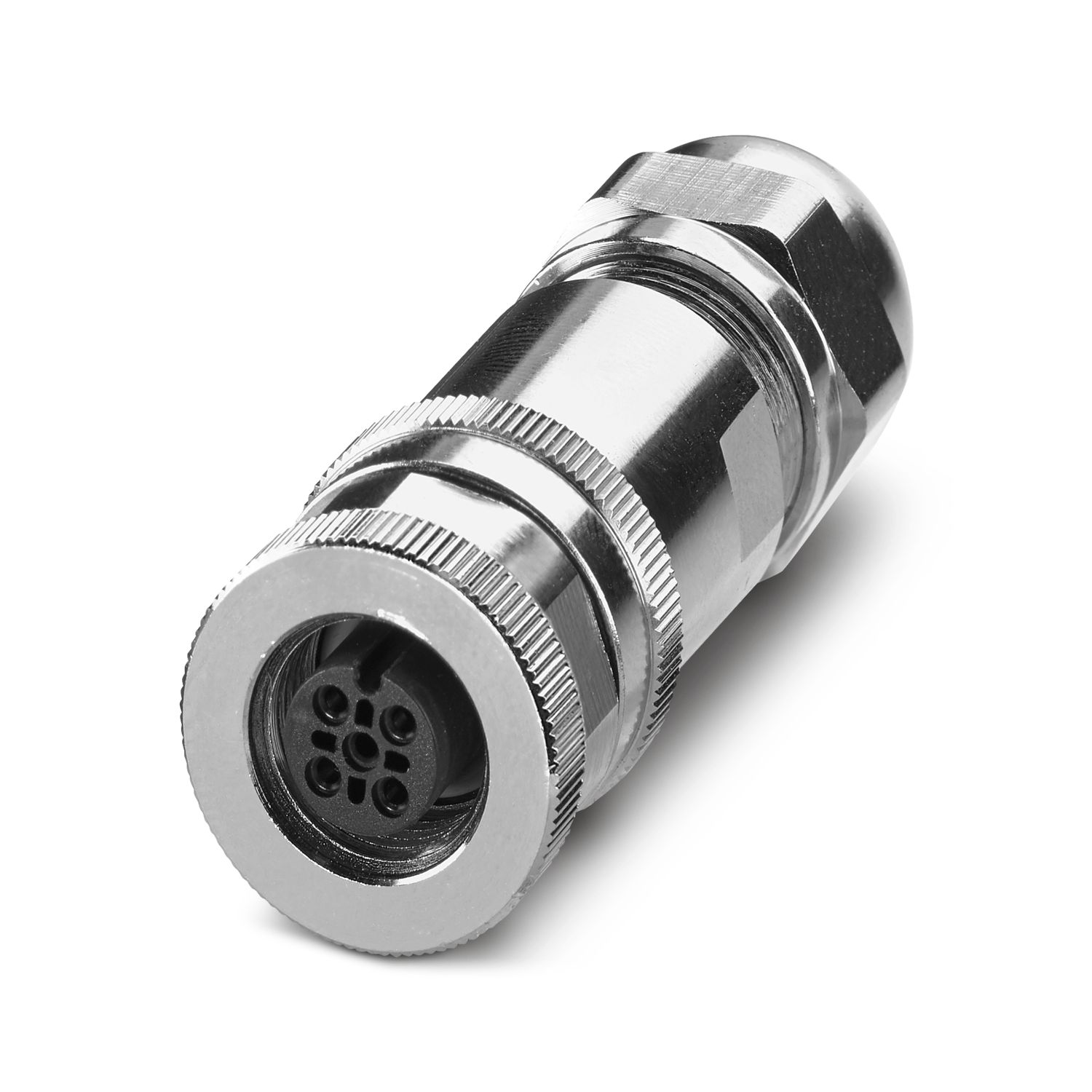

Phoenix SACC-M12FS-5CON-PG 9 SH AU-data connector 1508365, data connector, CAN Bus/DeviceNet,5-position, shielding, hole type straight head M12, code: A, screw connection, coil material: zinc casting, nickel plating, Cable seal Pg9, cable outer diameter 6.5mm ... 8.5mm
| Product Type |
Circular connector (cable side) |
| Application |
data |
| Sensor Type |
CAN Bus/DeviceNet™ |
| Bits |
5 |
| Outlet No. |
1 |
| Shielding |
have |
| coding |
A |
| cable outlet |
straight head |
| Pg screw connection |
Pg9 |
| insulation characteristics |
| Overvoltage Category |
II |
| pollution level |
3 |
| Dimensional drawing |
|
| length |
56mm |
| External dimensions |
| outside diameter |
6.5mm ... 8.5mm |
| shell |
| diameter shell |
20mm |
| flame retardant rating to UL 94 |
HB |
| sealing material |
NBR |
| Fixture body material |
zinc cast, nickel plated |
| Contact Material |
CuZn |
| Material Contact Surface |
Au |
| Contact Carrier Material |
PA 6.6 |
| screw connection material |
zinc cast, nickel plated |
| Wire Connection |
| Connection Mode |
screw connection |
| Wiring cross section |
0.25 mm² ... 0.75 mm² (without cold head) |
| 0.14 mm² ... 0.75 mm² (with cold press head) |
| 0.25 mm² ... 0.75 mm² (rigid) |
| Connectable Wire Cross Section AWG |
24 ... 18 (without cold head) |
| 26 ... 20 (with cold pressing head) |
| the stripping length of a single wire |
5mm |
| Tightening torque |
0.4 Nm (M12 coil) |
| 0.2 Nm (screw terminal block) |
| 0.8 Nm ... 1 Nm (compression nut, cable outer diameter 4mm ... 8mm) |
| 1 Nm ... 1.4 Nm (compression nut, cable outer diameter 8mm ... 12mm) |
| Rated overvoltage |
1.5 kV |
| contact resistance |
≤ 3 mΩ |
| insulation resistance |
≥ 100 MΩ |
| Rated voltage UN |
48V AC |
| 60V DC |
| Rated current IN |
4 A |
| Mechanical parameters |
| Insertion/unplugging cycle |
≥ 100 |
| connection 1 |
| Socket Design |
hole type |
| socket |
straight head |
| socket thread type |
M12 |
| coding |
A |
| Signal Type/Classification |
CAN Bus/DeviceNet |
| Stripping Length of a Single Wire |
5mm |
| environmental conditions |
| protection level |
IP67 |
| ambient temperature (operation) |
-40°C ... 85°C (pin/hole) |
