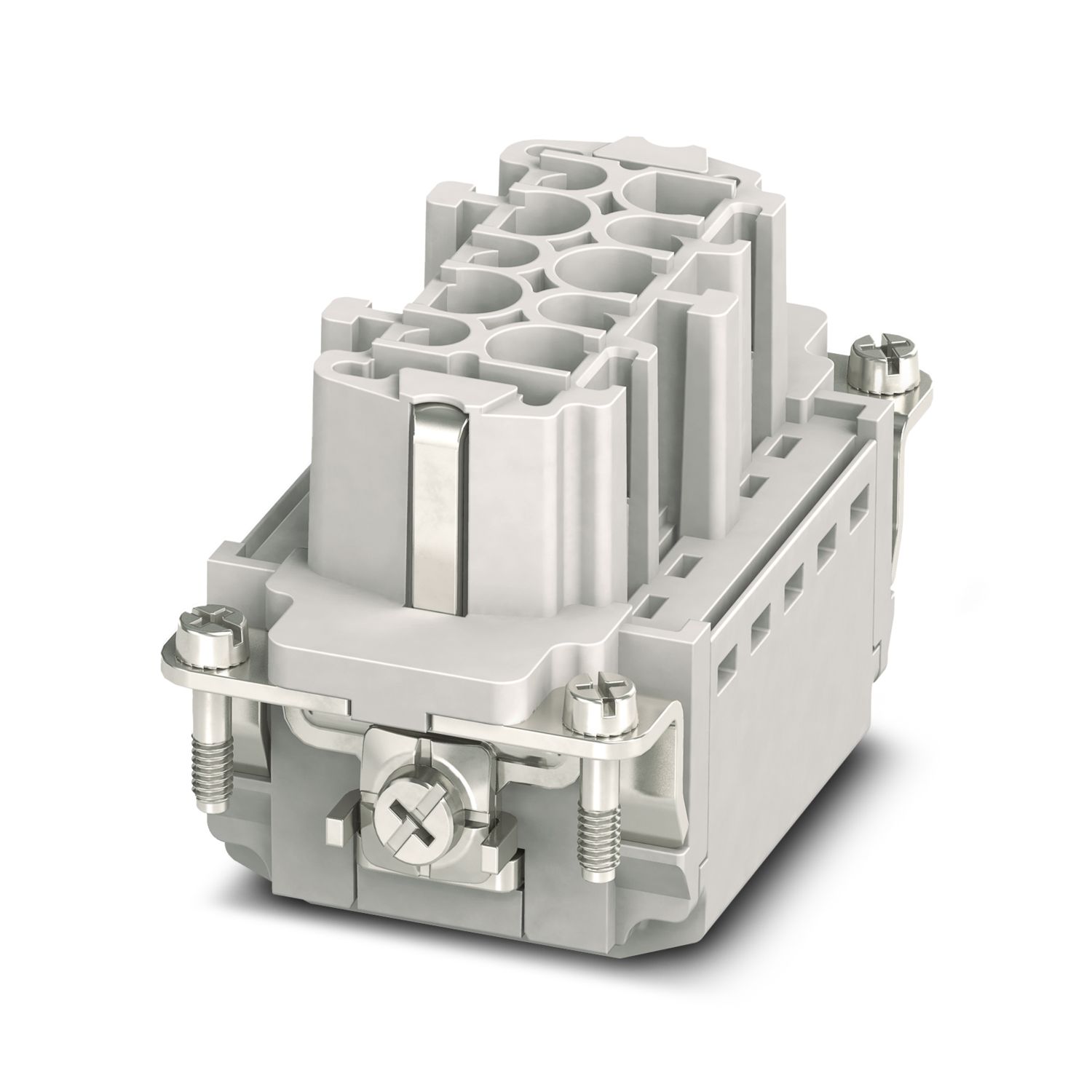

Phoenix HC-HS06-I-UT-F-ferrule 1406530, ferrule, number of bits: 6 PE, size: B16, number of connections per bit: 1, hole plug, screw connection, 400V/690V,41 A, 0.5 mm2... 6mm2, application: power supply
Assembly Instructions
To ensure proper use, it must be installed in an enclosure with at least IP54 protection
Product Type
ferrule with fixed number of cores
Series
HC-HS
Application
power supply
type
B16
B32
Bits
6
Connection Chart
6 PE
contact coding
1 - 6
Number of connections per bit
1
Contact Type
turning
insulation characteristics
Overvoltage Category
III
pollution level
3
Dimensional drawing
width
34mm
height
34mm
length
84.5mm
drilling distance, horizontal
77.5mm
drilling distance, vertical
27mm
mechanical characteristics
Contact diameter
3.5mm
connection technology
connection system
screw connection
Number of connections per bit
1
connection meets standards
IEC / EN
Wire Connection
Wire Cross Section
0.5 mm² ... 6 mm² (power supply pin position)
Connectable Wire Cross Section AWG
20 ... 10
Tightening torque
0.8 Nm ... 1.2 Nm (PE connection)
0.5 Nm ... 0.8 Nm (mounting screws for mounting in HEAVYCON housing)
1.2 Nm
the stripping length of a single wire
10mm
Rated voltage (III/3)
400V (Wire-PE)
690V (wire-wire)
power contact
400/690V
Rated overvoltage
6 kV (power supply pin position)
Rated current
41 A (power supply pin position)
SCCR
5 kA (UL 2237)
Mechanical parameters
Insertion/unplugging cycle
≥ 500
flame retardant rating, according to UL 94
V0
Contact Material
copper alloy
Material Contact Surface
Ag
Contact Carrier Material
PC
Standards/Regulations
PC: Railway vehicle fire protection-complete set of R22, R23 and R24 required according to DIN EN 45545-2 (risk layer HL1-HL3)
