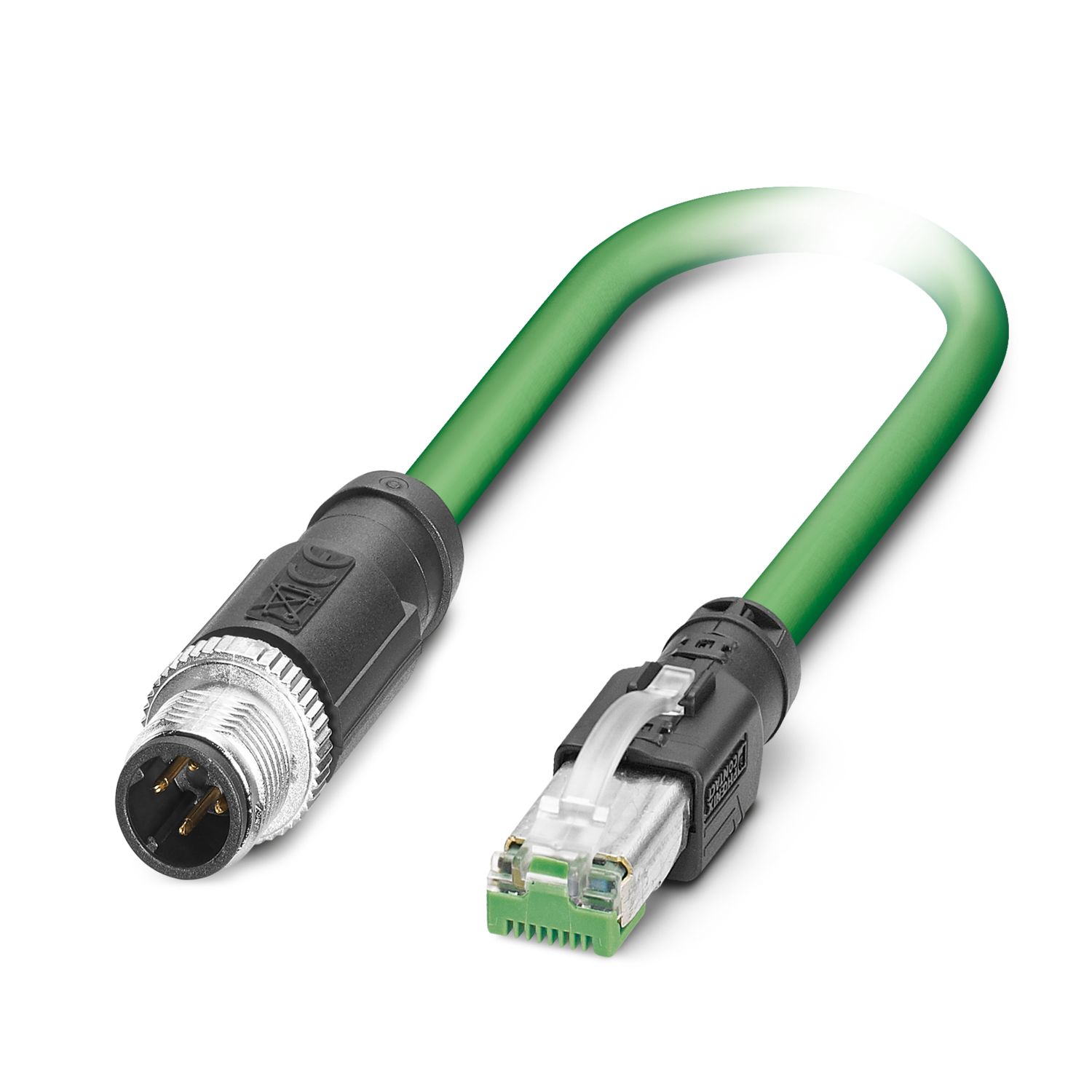

Phoenix NBC-M12MSD/3,0-93E/R4AC-Network Cable 1403499, Network Cable, Ethernet CAT5 (100 Mbps),4-Position, PUR Halogen-Free, Aqua RAL 5021, Shielded (Advanced Shielding Technology), Plug Straight M12, Code: D / IP67, Plug Straight RJ45 / IP20, Cable Length: 3 m
| Product Type |
Pre-installed data cable |
| Application |
standard |
| Sensor Type |
Ethernet |
| Bits |
4 |
| Shielding |
have |
| Signal Type/Classification |
Ethernet CAT5 (IEC 11801), 100 Mbps |
| Rated voltage UN |
48V AC |
| 60V DC |
| Rated current IN |
1 A |
| transmission medium |
copper cable |
| connection 1 |
| Dimensional drawing |
M12 pin connector pinout, 4-pin, D-coded, plug side
|
| Model |
M12 plug, straight, 4-position, shielded (Advanced Shielding Technology), anti-wrong code: D |
| Bits |
4 |
| Shielding |
have |
| Shielding |
Advanced Shielding Technology |
| Signal Type/Classification |
Ethernet CAT5 (IEC 11801), 100 Mbps |
| Insertion/unplugging cycle |
≥ 100 |
| insulation resistance |
≥ 100 MΩ |
| Overvoltage Level |
II |
| pollution level |
3 |
| Tightening torque |
0.4 Nm |
| Identification material contact |
CuSn |
| Identification Material Pin Surface |
Ni/Au |
| Identification material insert |
PA 6.6 |
| identification material screw connection |
Zinc die-cast, nickel-plated |
| Marking material grip |
TPU, high flame retardancy, self-extinguishing properties |
| Identification Material Seals |
FKM |
| flame retardant rating to UL 94 |
V0 |
| protection level |
IP65 |
| IP67 |
| ambient temperature (operation) |
-25°C ... 85°C |
| Standard Identification |
M12 Pin Plug Connector |
| Standards/Regulations |
IEC 61076-2-101 |
| Connection 2 |
| Dimensional drawing |
RJ45 Pin Connector Pin Assignment
|
| Model |
RJ45 plug, straight |
| Signal Type/Classification |
Ethernet CAT5 (IEC 11801), 100 Mbps |
| Insertion/unplugging cycle |
≥ 750 |
| insulation resistance |
≥ 100 MΩ |
| Overvoltage Level |
I |
| pollution level |
2 |
| Identification material contact |
CuSn |
| Identification Material Pin Surface |
Ni/Au |
| Identification material insert |
PC |
| Identification material shell |
PA |
| flame retardant rating to UL 94 |
V2 |
| protection level |
IP20 |
| ambient temperature (operation) |
-25°C ... 60°C |
| Cable Length |
3 m |
| Ethernet Flexible CAT5,2 Pair [93E] |
| Dimensional drawing |
|
| Cable Weight |
42 kg/km |
| UL AWM |
20963 (80°C/30 V) |
| Wiring Standards/Specifications |
Electrical Requirements EN 50288-2-2 |
| Bits |
4 |
| Shielding |
have |
| Cable Type |
Ethernet Flexible CAT5,2 Pair [93E] |
| Wire Structure |
2x2xAWG26/7,SF/UTP |
| signal running time |
5.3 ns/m |
| wire structure signal line |
7x 0.16mm |
| AWG, signal wire |
26 |
| Wire Cross Section |
2x 2x 0.14 mm² |
| wire diameter, including insulation |
0.98mm |
| Cable outer diameter |
6.40mm ± 0.2mm |
| outer sheath, material |
PUR |
| outer sheath, color |
Aqua Blue RAL 5021 |
| Wire Material |
copper stranded wire |
| wire insulation material |
Foamed Polyethylene |
| single line, color |
White/Orange-Orange, White/Green-Green |
