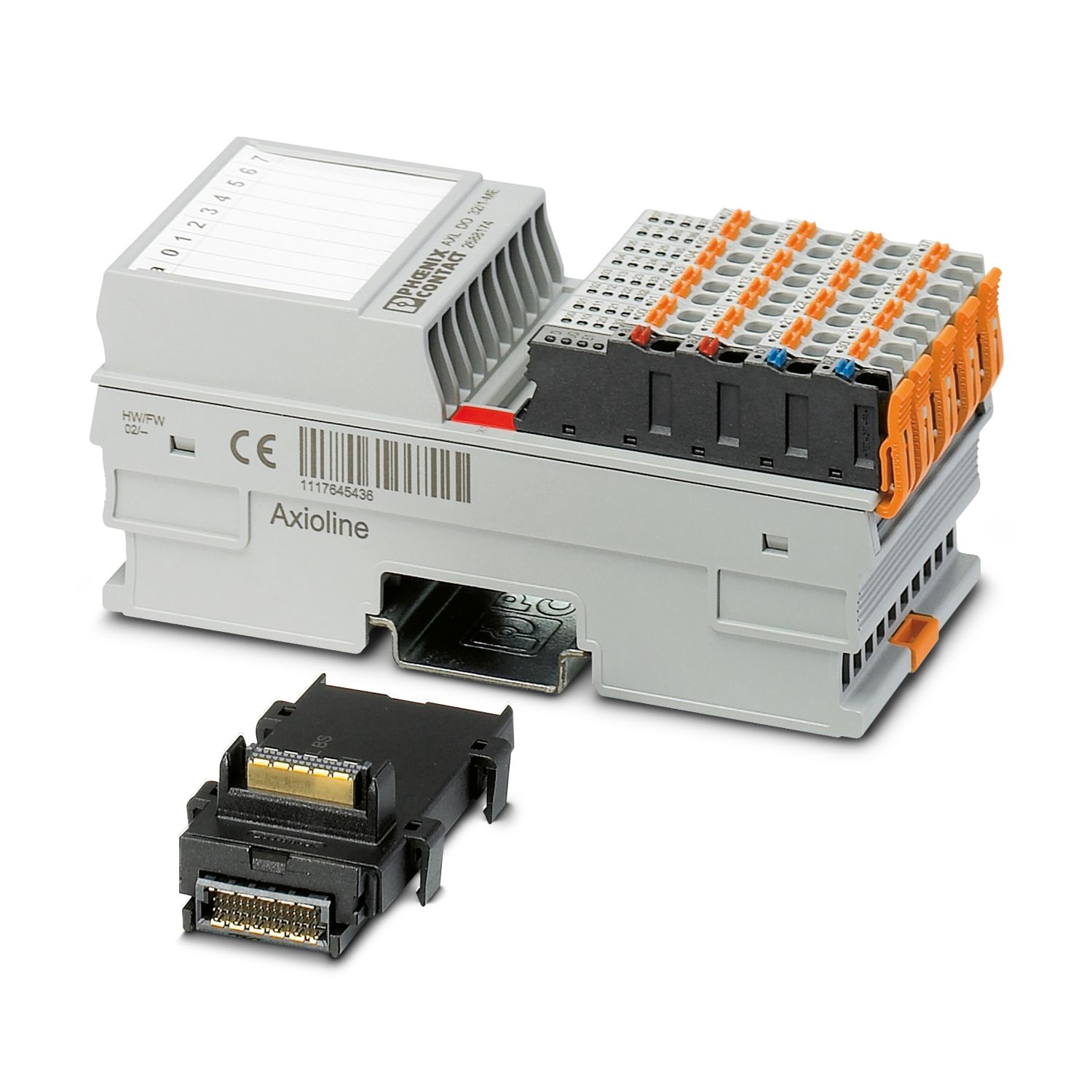

Phoenix AXL F DO32/1 1F-digital quantity module 2688051,Axioline F, digital quantity output module, digital output: 32,24V DC,500 mA, connection technology: 1-wire system, local bus transmission rate: 100 Mbps, protection level: IP20, including bus base module and Axioline F connector
width
53.6mm
height
126.1mm
depth
54mm
Notes on dimensional data
using TH 35-7.5 rails (as EN60715).
Application Description
Application Description
for industrial applications only
Axioline F Local Bus
interfaces
2
Connection Mode
Bus Base Module
transmission speed
100 Mbps
Module
Input Address Area
0 Byte
Output Address Area
4 Byte
the required parameter data
1 Byte
the required configuration data
6 Byte
digital quantity:
Output Name
Digital Output
Connection Mode
in-line connection
connection system
1 Wire
outputs
32
protection circuit
Short circuit protection for output, overload protection; electronic
output voltage
24V DC
Voltage limitation due to current interruption
-32.8V ... -15V
the maximum output current of each module
8 A (up to HW 04 with external protection)
16 A (from HW 05, provide external protection)
Rated output voltage
24V DC
Minimum load
10 kΩ
is disconnected
max. 1V
is disconnected
Maximum 300 & micro;A
load rating, inductive
12 VA max. (1.2 H,48 Ω, rated voltage)
rated load, indicator light
maximum 12W (rated voltage)
Rated load, resistive
12W max (48 Ω, rated voltage)
Switching frequency
5500 per second (resistive load)
max. 1 second (with inductive load)
Max. 16 per second (with nominal lamp load)
reverse voltage against short pulses
limited protection up to 0.5 A for 1 s
overload behavior
shutdown
Inductor overload action
output may be corrupted
signal delay
maximum 150 & micro;s (at power-up)
maximum 200 & micro;s (after rated resistive load de-energized)
overcurrent shutdown
as 0.7 A
is cut off
< 1 mA
Product Type
I/O components
product series
Axioline F
type
Modular structure
Installation position
any position (no temperature decay)
Scope of supply
includes bus base module and Axioline F connector
insulation characteristics
Overvoltage Category
II (IEC 60664-1,EN 60664-1)
pollution level
2 (IEC 60664-1,EN 60664-1)
rated conditions
3W
potential: Axioline F local bus (UBus) power supply
supply voltage
5V DC (via bus base module)
current consumption
Maximum 120 mA (up to HW04)
Maximum 60 mA (from HW 05)
potential: feeding the digital output module (UO)
supply voltage
24V DC
Supply Voltage Range
19.2V DC ... 30V DC (includes all tolerances, including ripple)
current consumption
max. 8 A (up to HW 04 with external protection)
16 A maximum (from HW 05, provide external protection; if the total current exceeds 8 A, connect the power on the power connector in parallel through two wiring points.)
protection circuit
surge protection; electronic (35V, 0.5 s)
polarity protection; shunt diode with external 5 A fuse (for commissioning only)
2688051
