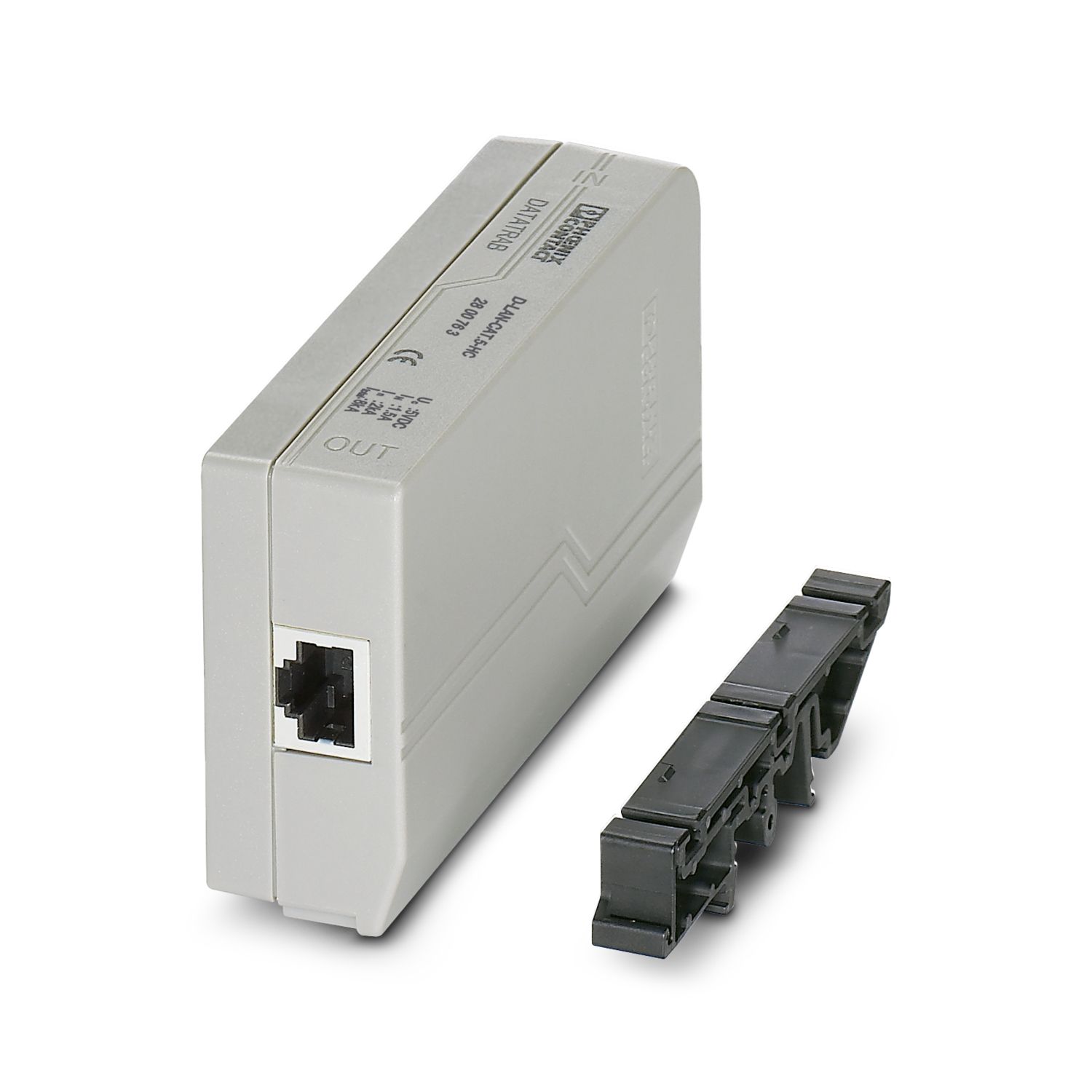

Phoenix D-LAN-CAT.5-FP-Surge Protector 2800723, fine surge protection for data networks up to 1 Gbps. Can be used in Ethernet, Power over Ethernet (PoE, Mode A and Mode B), Token Ring, ISDN, and DS1. RJ45 protection plug with separate ground cable and NS 35 DIN rail snap-on feet.
| Product Type | Information Technology |
| product series | DATATRAB |
| IEC Category | B2 |
| C1 | |
| VDE requirement level | B2 |
| C1 | |
| type | adapter for DIN rail mounting |
| Bits | 8 |
| line pairs per module | 4 |
| insulation characteristics | |
| Overvoltage Category | II |
| pollution level | 2 |
| Connection Mode | RJ45 |
| Dimensional drawing | |
| width | 28mm |
| height | 110mm |
| depth | 60 mm (includes NS 35 adapter) |
| color | gray (RAL 7042) |
| black (RAL 9005) | |
| flame retardant rating to UL 94 | V0 |
| Shell Material | ABS |
| Mechanical parameters | |
| Open Side Panel | No |
| movement direction | Line-Line & Line-Ground/Shield |
| Maximum continuous voltage Uc | ± 48V DC |
| Maximum continuous voltage UC(line-line) | ± 5V DC (±57V DC/PoE) |
| Rated current | ≤ 1.5 A (25 °C) |
| UC, the effective working current IC | ≤ 600 µA |
| Nominal discharge current In(8/20) & micro;s (core-core) | 350 A |
| Rated discharge current In(8/20)& micro;s (core-ground) | 350 A |
| rated power pulse current lan (700)& micro;s (core-core) | ≤ 25 A |
| rated power pulse current lan (700)& micro;s (core-ground) | ≤ 25 A |
| Output voltage limit 1 kV/& micro;s (core-to-core) peak | ≤ 25V |
| ≤ 90V (PoE) | |
| Output voltage limit 1 kV/& micro;s (core-ground) peak | ≤ 750V |
| Output voltage limit 1 kV/& micro;s (core-core) static | ≤ 25V |
| Output voltage limit 1 kV/& micro;s (core-ground) static | ≤ 750V |
| Residual voltage ln,(wire-wire) | ≤ 35V (C1 - 350 A) |
| ≤ 110V (C1 - 350 A) | |
| Residual voltage ln,(wire-ground) | ≤ 700V (C1 - 350 A) |
| voltage protection level Up(core-core) | ≤ 20V (B2 - 1 kV / 25 A) |
| ≤ 90V (B2 - 1 kV / 25 A - PoE) | |
| ≤ 35V (C1 - 700 V/350 A) | |
| ≤ 110V (C1 - 700 V/350 A - PoE) | |
| voltage protection level Up(Line-Ground) | ≤ 700V (B2 - 1 kV / 25 A) |
| ≤ 700V (C1 - 700 V/350 A) | |
| response time tA(core-core) | ≤ 1 ns |
| response time tA (core-ground) | ≤ 100 ns |
