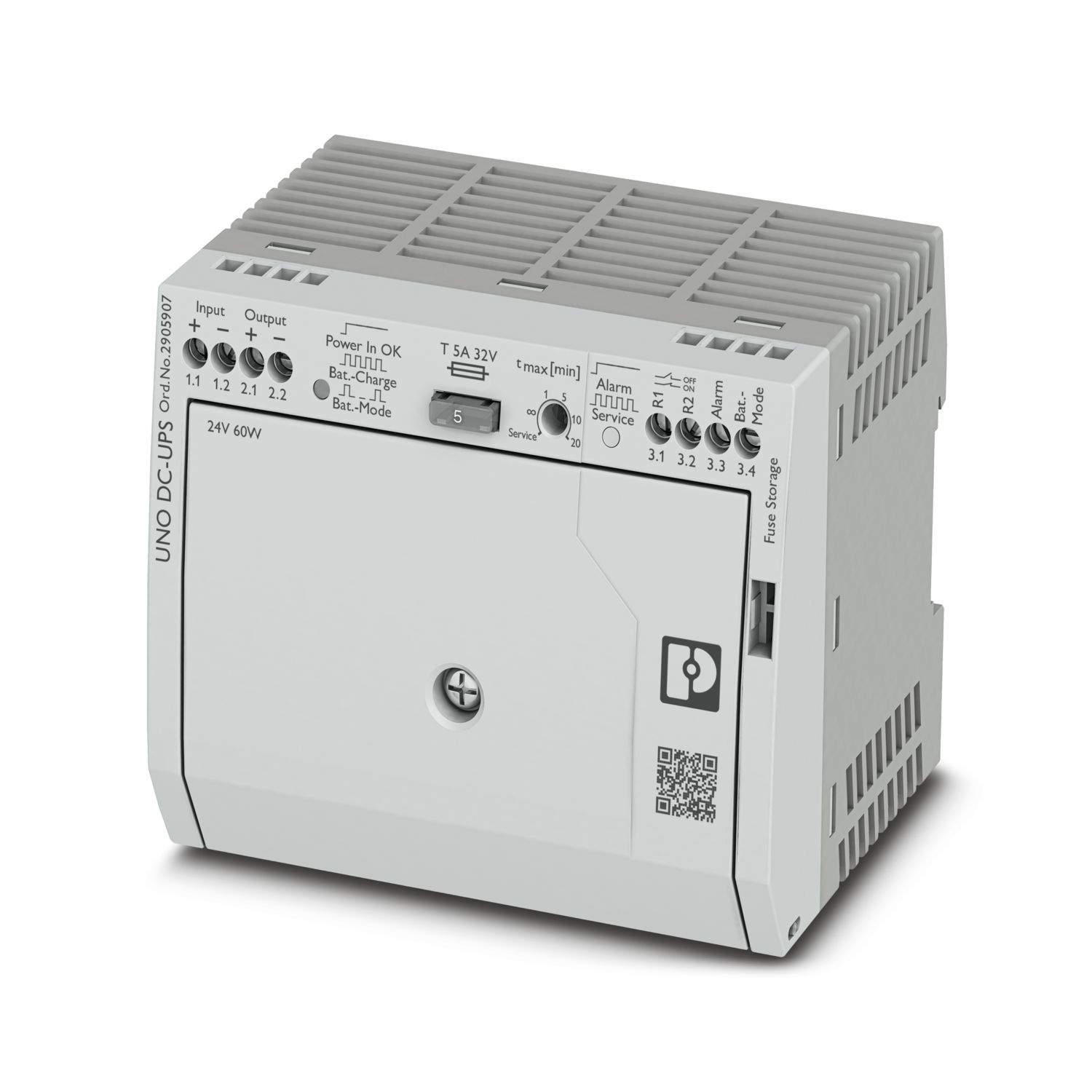

Phoenix UNO-UPS/24DC/24DC/60W-uninterruptible power supply 2905907, uninterruptible power supply with built-in battery, lead AGM,VRLA technology, 24V DC, 2x 0.8 Ah.
| DC operation | |
| input voltage | 24V DC |
| Input Voltage Range | 22.5V DC ... 29.5V DC |
| Supply Voltage | DC |
| buffer time | 45 min (0.5 A) |
| 20 min (1 A) | |
| 8 min (2 A) | |
| 5 min (2.5 A) | |
| power consumption | 2.8 A (max.) |
| < 60 mA | |
| < 300 mA | |
| input fuse | 5 A (electronic) |
| efficiency | > 95% (rechargeable battery) |
| > 92% (battery operated) | |
| Rated output voltage | 24V DC |
| Rated output current (IN) | 2.5 A |
| bridge time | 300 s |
| output power | 60W |
| power consumption | 3W (main line operation) |
| 6W (battery operated) | |
| Battery Operation | |
| Concatenation | No |
| mains power supply | |
| Rated output voltage | 24V DC |
| Output Voltage Range | UOut= UIn- 0.5V DC |
| Rated output current (IN) | 2.5 A (Permanent) |
| battery operation | |
| Rated output voltage | 24V DC |
| Output Voltage Range | 20V DC ... 27.3V DC |
| Rated output current (IN) | 2.5 A (Permanent) |
| signal: alarm | |
| Output Description | transistor (24V DC/15 mA) |
| signal: battery mode | |
| Output Description | transistor (24V DC/15 mA) |
| charging current | 200 mA |
| Rated capacity | 2x 0.8 Ah |
| charging time | about 5 h |
| battery module life | 3 years... 5 years (20°C) |
| Maximum commissioning interval (battery only) | (0°C ... 20°C) |
| (30°C ... 40°C) | |
| Last Debug (Battery Only)-Range | (20°C ... 30°C) |
| battery technology | lead battery charging module |
| Storage Type | YUASA NP0.8-12 |
| YUCEL Y0.8-12 | |
| YUVOLT 0.8-12 | |
| Battery presence detection (cycling) | 60 s |
| Battery fuse | T 5 A 32V |
| IQ Technology | No |
| Input | |
| Connection Mode | screw connection |
| Minimum cross section of rigid conductor | 0.2 mm² |
| Maximum cross section of rigid conductor | 2.5 mm² |
| Minimum cross section of flexible lead | 0.2 mm² |
| flexible conductor | 2.5 mm² |
| Minimum Wire Cross Section AWG | 24 |
| Maximum conductor cross section AWG | 14 |
| stripping length | 7mm |
| thread | M3 |
| Minimum tightening torque | 0.5 Nm |
| Maximum tightening torque | 0.6 Nm |
Phoenix UNO-UPS/24DC/24DC/60W-Uninterruptible Power Supply 2905907
