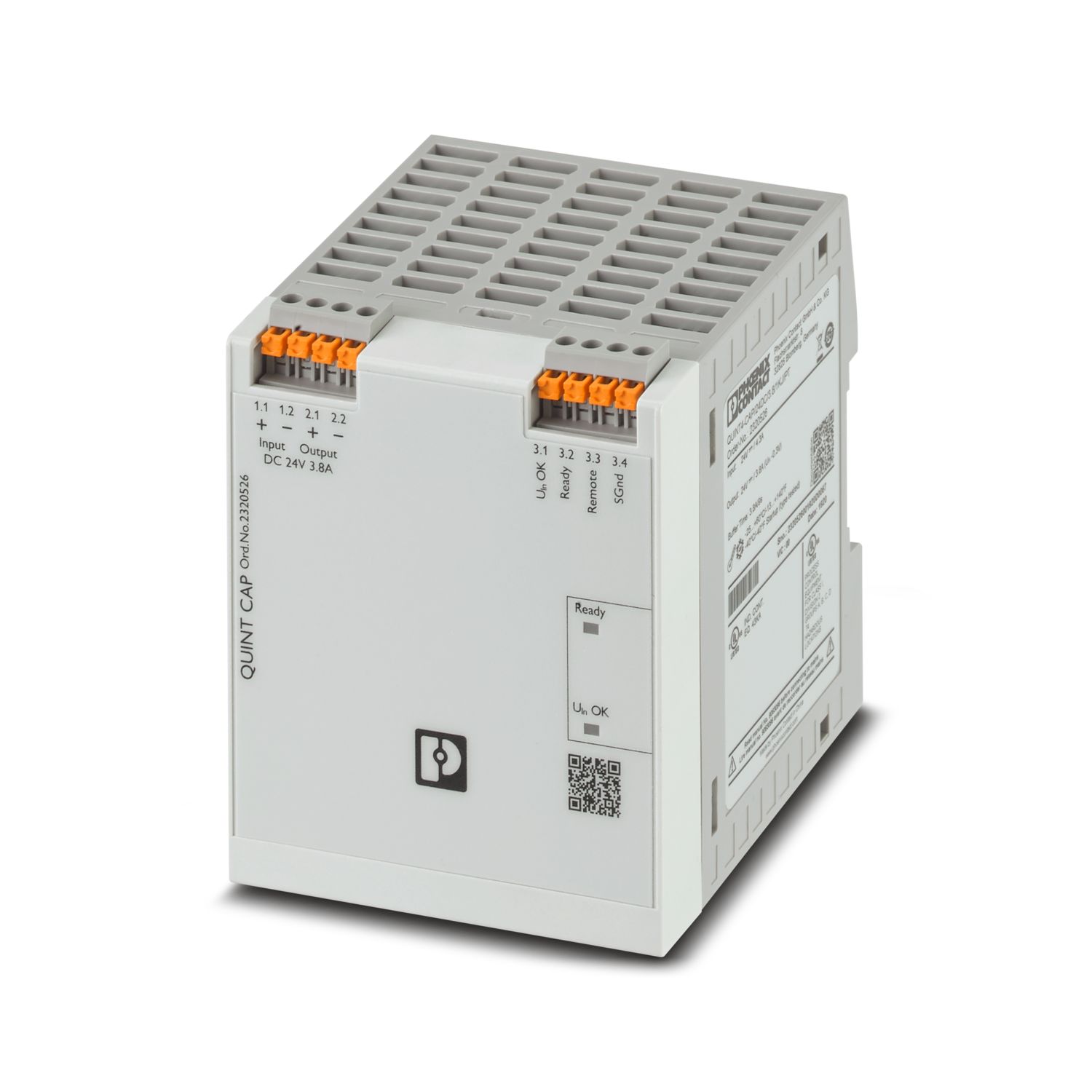

Phoenix QUINT4-CAP/24DC/3.8/1KJ/PT-Capacitor buffer module 2320526,QUINT capacitor module, with maintenance-free double-layer capacitive high-power storage device, for DIN rail installation, input: 24V DC, output: 24V DC/3.8 A / 1 kJ
| input voltage |
24V DC (SELV) |
| Input Voltage Range |
22.5V DC ... 30V DC |
| Fixed Backup Threshold |
< 22V DC |
| Current consumption Imax(UN,IOUT= IStat.Boost,ICharge= max) |
4.3 A |
| Current consumption INo-Load(UN,IOUT= 0, Icharge= 0) |
0.08 A |
| Current consumption Icharge(UN,IOUT= 0, Icharge= max) |
0.43 A |
| buffer time |
9 s (3.8 A) |
| 30 s (1 A) |
| charging time |
4 min (0.43 A) |
| recharge time |
3 min (0.43 A) |
| efficiency |
> 97% (with charging power storage device) |
| Concurrent |
yes. |
| max. 2 (with decoupling module) |
| Concatenation |
No |
| mains power supply |
| output voltage |
24V DC (depending on input voltage) |
| Output current IN |
3.8 A |
| Output power POUT(UN,IOUT= IN) |
91.2W |
| maximum no-load power consumption |
< 2W |
| battery operation |
| output voltage |
24V DC |
| Output current IN |
3.8 A |
| Overview |
| Capacity |
1 kJ |
| storage media |
double layer capacitor |
| buffer time |
9 s (3.8 A) |
| 30 s (1 A) |
| Wire Connection |
| Connection Mode |
in-line connection |
| Rigidity |
0.2 mm² ... 2.5 mm² |
| flexibility |
0.2 mm² ... 2.5 mm² |
| flexible strip cold press head without plastic sleeve |
0.25 mm² ... 2.5 mm² |
| flexible strip cold press head with plastic sleeve |
0.25 mm² ... 2.5 mm² |
| Rigid (AWG) |
24 ... 14 |
| stripping length |
10mm |
| Wire Connection |
| Connection Mode |
in-line connection |
| Rigidity |
0.2 mm² ... 2.5 mm² |
| flexibility |
0.2 mm² ... 2.5 mm² |
| flexible strip cold press head without plastic sleeve |
0.25 mm² ... 2.5 mm² |
| flexible strip cold press head with plastic sleeve |
0.25 mm² ... 2.5 mm² |
| Rigid (AWG) |
24 ... 14 |
| stripping length |
10mm |
| Wire Connection |
| Connection Mode |
in-line connection |
| Rigidity |
0.2 mm² ... 2.5 mm² |
| flexibility |
0.2 mm² ... 2.5 mm² |
| flexible strip cold press head without plastic sleeve |
0.25 mm² ... 2.5 mm² |
| flexible strip cold press head with plastic sleeve |
0.25 mm² ... 2.5 mm² |
| Rigid (AWG) |
24 ... 14 |
| stripping length |
10mm |
