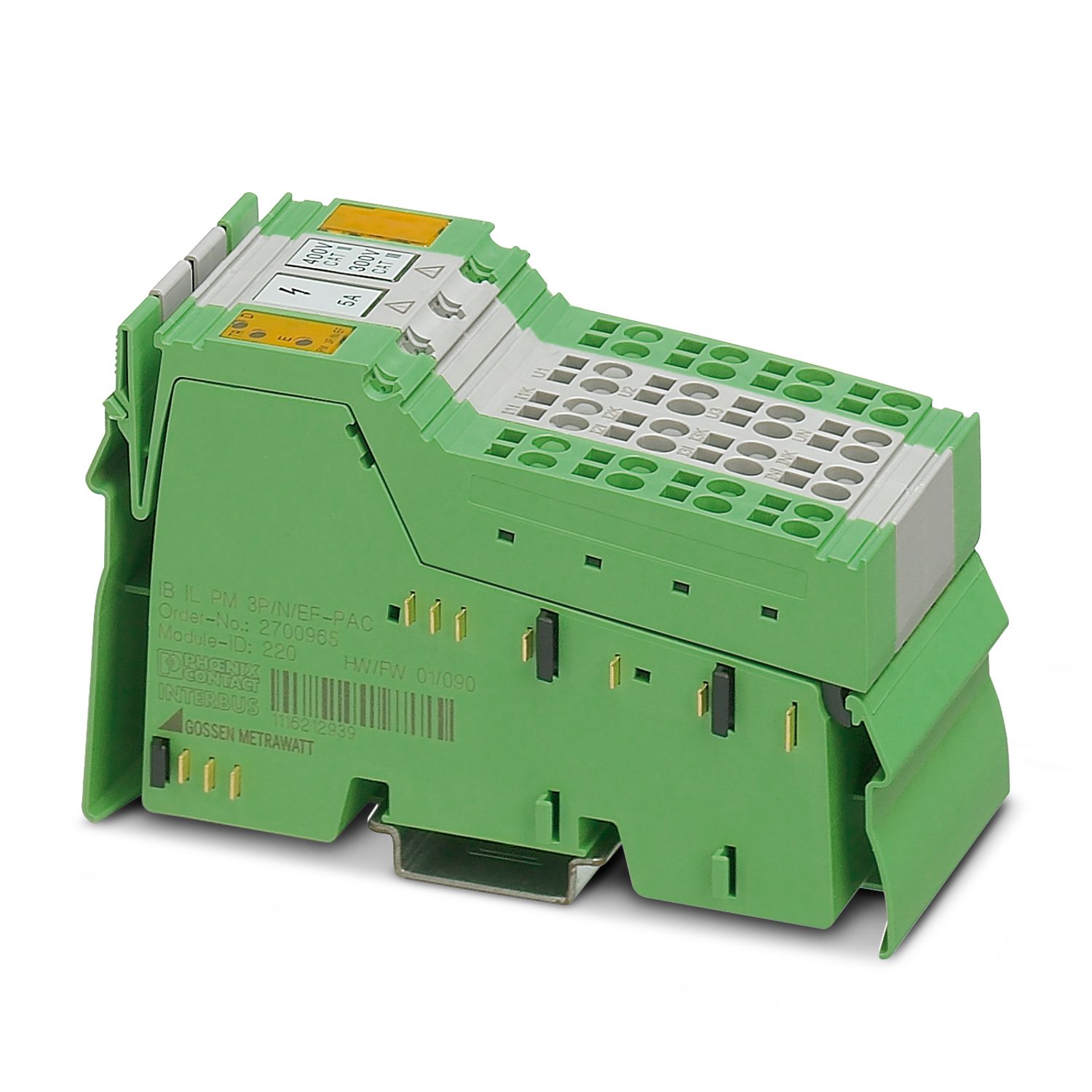

Phoenix IB IL PM 3P/N/EF-PAC-function module 2700965,Inline power measurement module, used to directly measure AC current up to 5 A, including neutral conductor current and phase conductor voltage up to 400V AC (phase/neutral conductor) or 690V AC (phase/phase), with full accessories (connector and identification area)
| width | 48.8mm |
| height | 119.8mm |
| depth | 71.5mm |
| Notes on dimensional data | Shell Size |
| Application Description | |
| Application Description | for industrial applications only |
| Inline Local Bus | |
| interfaces | 2 |
| Connection Mode | Inline data span block |
| transmission speed | 500 kBit/s |
| Module | |
| ID Code (dec.) | 220 |
| Hex ID Encoding | DC |
| Length Encoding (Hexadecimal) | 0C |
| length encoding (decimal) | 12 |
| Process Data Channel | 192 bit |
| Input Address Area | 24 Byte |
| Output Address Area | 24 Byte |
| Register Length | 28 Byte |
| the required parameter data | 29 Byte |
| 5 Byte | |
| Product Type | I/O components |
| Product Series | Inline |
| type | Module |
| Mode of operation | 12 words of process data pattern, 2 words of PCP |
| diagnostic information | confuses two phase I/O error messages |
| a phase line is not connected or the phase line is open I/O error message | |
| Measurement Circuit Failure I/O Error Message | |
| I/O error message out of range of transformer factor | |
| I/O error message out of range of other settings | |
| insulation characteristics | |
| Overvoltage Category | III (up to 300V),II (up to 400V) |
| pollution level | 2 (IEC 60664-1,EN 60664-1) |
| rated conditions | 2.7W |
| potential: communication power supply (UL) | |
| supply voltage | 7.5V DC (across the power supply) |
| current consumption | Typical 130 mA |
| connection technology | |
| Connection Name | Inline Connector |
| Wire Connection | |
| Connection Mode | pull-back spring connection |
| Rigid conductor cross section | 0.2 mm² ... 1.5 mm² |
| Flexible Wire Cross Section | 0.2 mm² ... 1.5 mm² |
| Attachable Guide Cross Section AWG | 24 ... 16 |
| stripping length | 8mm |
