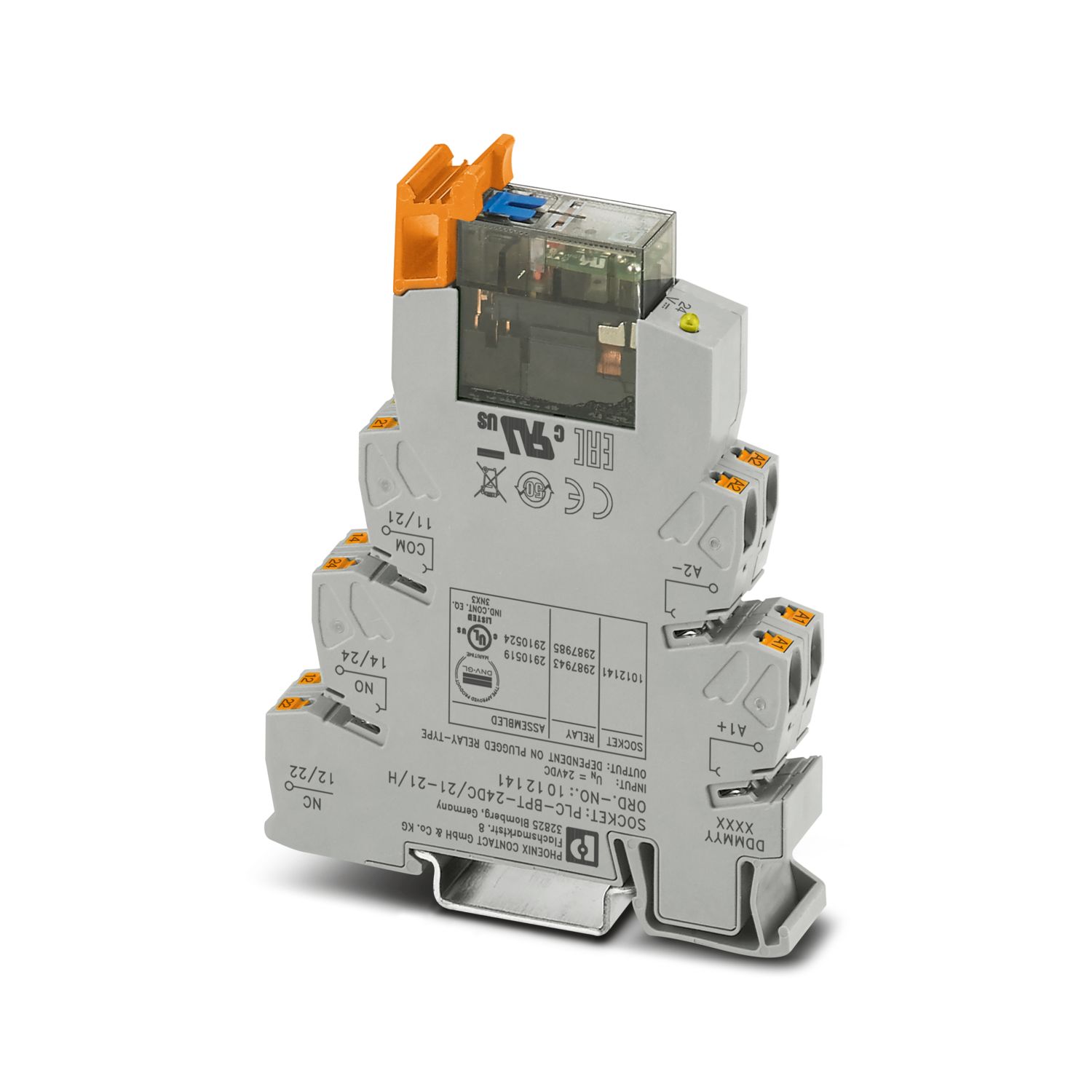

Phoenix PLC-RPT-230UC/21-21AU/MS-Relay module 2910529,PLC-INTERFACE, including relay base and pluggable multi-layer gold contact relay (with manual operation and integrated status LED), in-line connection, 2 conversion contacts, Bridge rectifier, input voltage: 230V AC / 220V DC

Product Type Relay Module
Product Series PLC-INTERFACE
Application Handheld Switch
Mode of operation 100% operating factor
mechanical life 5x106Switch Times
Insulation Characteristics: Standards/Regulations
insulation safety isolation, reinforced insulation
Overvoltage Category III
pollution level 2
Data Management Status
Last data maintenance date 28.03.2025

rated conditions 1.15W
test voltage (coil/contact) 4 kVrms(50Hz,1 min, coil/contact)
test voltage (changeover contact/changeover contact) 2.5 kVrms(50Hz,1 minute, changeover contact/changeover contact)
Standards/Regulations
Rated insulation voltage 250V AC
Rated overvoltage 6 kV

coil side
Rated input voltage UN 230V AC
220V DC
Input Voltage Range 207V AC ... 264.5V AC (20 °C)
209V DC ... 264V DC (20 °C)
rated voltage ("hot" plug electromagnetic relay) 110V DC
drives and functions monostable
drive (polarity) polarization
UN 5 mA
Typical Response Time 6 ms (220V DC)
3 ms ... 15 ms (230V AC)
Typical release time 10 ms (220V DC)
Typical Release Time Range 3 ms ... 15 ms (230V AC)
protection circuit bridge rectifier
Operating voltage display yellow LED

switching
Contact Type 2 changeover contacts
Switch Contact Type Single contact
Contact Material AgNi, hard gold plating
maximum switching voltage 30V AC
36V DC
Minimum Switching Voltage 12V (1 mA)
limit continuous current 50 mA
Maximum impact current 50 mA
minimum switching current 1 mA (12 V)
switching: when the gold plating layer is destroyed
Considerations If the gold plating is damaged, the following values are applicable.
maximum switching voltage 250V AC/DC
Minimum Switching Voltage 12V (10 mA)
limit continuous current 6 A
2910519
