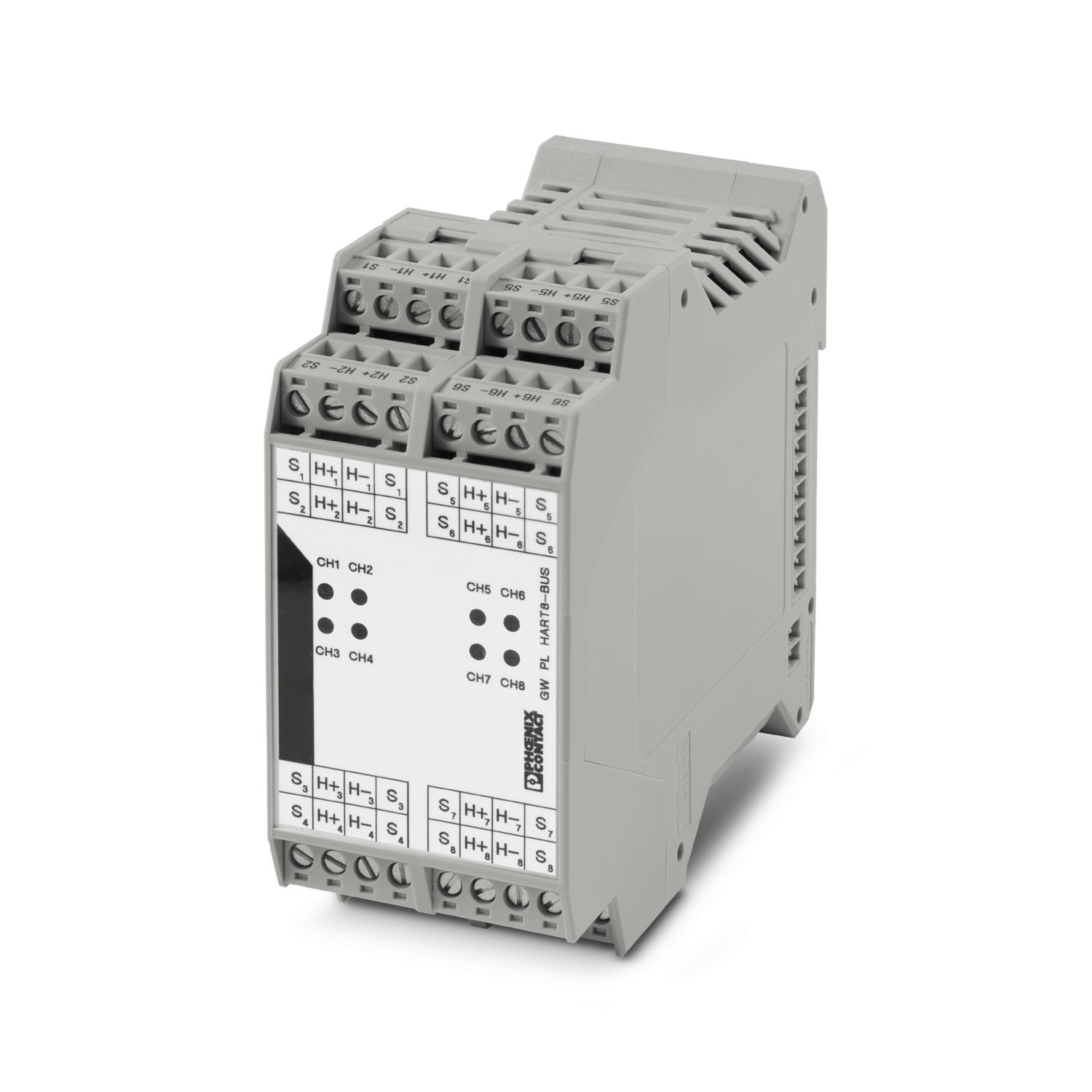

Phoenix GW PL HART8-R-BUS-transmission protocol converter 2702880, eight-channel HART® expansion module, screw connection, with 250 Ω internal input resistance
| width | 45mm |
| height | 99mm |
| depth | 114.5mm |
| Application Description | |
| Application Description | for industrial applications only |
| color | Grey |
| data: HART FSK | |
| transmission speed | 1200 bps |
| Connection Mode | screw connection |
| Channels | 8 |
| Product Type | I/O components |
| MTBF | 272 years (Siemens SN29500 type, temperature 40°C, energy factor 1.5, stress factor 50%) |
| test voltage data interface/power supply | 500V AC |
| Test Voltage Data Interface | 500V AC |
| Power | |
| Typical current consumption | 46 mA (24V DC) |
| environmental conditions | |
| protection level | IP20 |
| ambient temperature (operation) | -40°C ... 70°C |
| -40 °F ... 158 °F | |
| ambient temperature (storage/transport) | -40°C ... 85°C |
| Conformance/Certification | |
| compliance | CE compliant |
| Toxic gas detection | ISA-S71.04-1985 G3 Harsh Group A |
| Installation Type | DIN rail mounting |
| Assembly Instructions | mounting on standard DIN rail NS 35 (in accordance with EN 60715) |
| Installation position | arbitrary |
