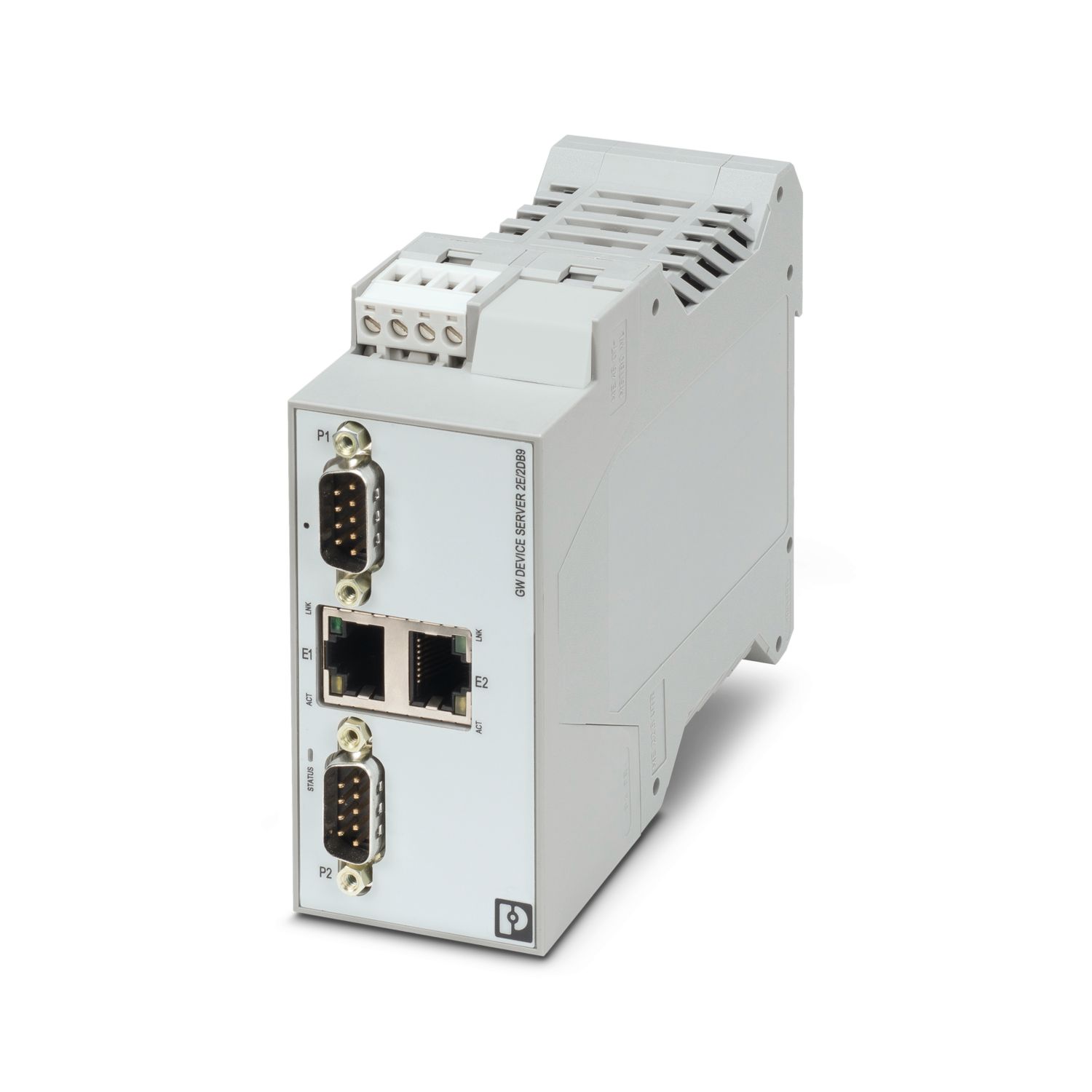

Phoenix GW PN/ASCII 2E/4DB9-Interface Converter 1020882,GW PN/ASCII... Convert RAW/ASCII strings to PROFINET. Includes two RJ45 ports and four D-SUB 9 ports.

Product Type Interface Interface Converter
MTBF 63.5 years (Telcordia standard, temperature 25°C,50% stress, environmental factor = 1.0)
42.3 years (Telcordia standard, temperature 40°C,50% stress, environmental factor = 1.5)

electrical isolation IEC UL 61010-1 (VCC // Ethernet)
test voltage data interface/data interface 1.5 kVrms(50 Hz,1 min)
test voltage data interface/power supply 1.5 kVrms(50 Hz,1 min)
1.5 kVrms
Power
Supply Voltage Range 10.8V DC ... 30V DC (via plug-in COMBICON screw terminal block)
Typical current consumption 110 mA (24V DC)
Maximum current consumption 120 mA (24V DC)
Function
Management Web-based management
Diagnostics and Status Indicators LEDs: Status, ACT/LNK (Ethernet Data Traffic)

Power
Flexible Wire Cross Section 0.20 mm² ... 2.50 mm²
Attachable Guide Cross Section AWG 24 ... 12
Tightening torque 0.5 Nm ... 0.6 Nm

signal Ethernet
PROFINET
Web Server is
data: PROFINET
serial transmission rate 10/100 Mbps, adaptive
Connection Mode RJ45 Hole Connector, Shielded
Channels 2
Transmission Length ≤ 100 m (shielded twisted pair)
Supported Protocols PROFINET,ASCII
Auxiliary Agreement ARP, DHCP (client), PING
data: RS-232
serial transmission rate 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
connection quantity 4
Connection Mode D-SUB-9 male connector
Pin Distribution DTE
Transmission Length 15 m
file format/encoding 5/6/7/8 data bits, 1/2 stop bits, parity bits (None/even/odd/mark/space)
Data Flow Control/Protocol software handshake, Xon/Xoff or hardware handshake RTS/CTS
data: RS-422
serial transmission rate 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbp
2702766
