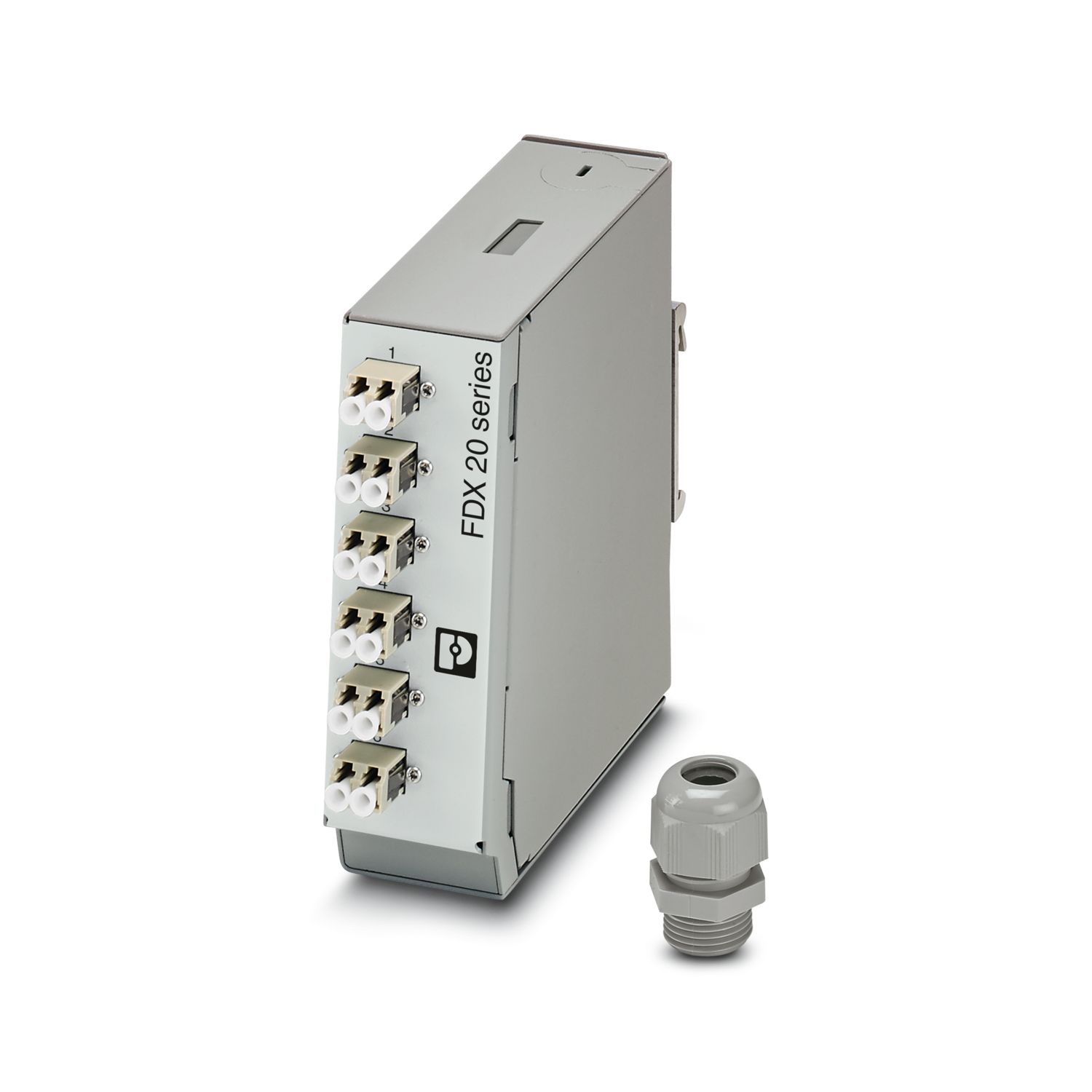

Phoenix FOC-FDX20-PP-STD6-OSP-PT9-junction box 1019682, junction box, type: rail-mounted module, protection level: IP20, identification material: metal, wiring method: bonding, cable outlet: upper and lower, housing size: 1, color: Gray, Ethernet
| Product Type |
network junction box |
| Enclosure Type |
DIN Rail Adapter |
| Series |
FDX 20 series |
| type |
rail-mounted module |
| Sensor Type |
Ethernet |
| Connection Chart |
ST-Duplex |
| Outlet No. |
2 |
| wires |
12 |
| module slots |
6 |
| slots |
12 |
| screw connection type |
M20 x 1.5 |
| protective cover |
is |
| cable outlet |
upper and lower |
| Attenuation |
≤ 0.3 dB |
| transmission medium |
FO |
| connection technology |
| Connection Mode |
Engagement |
| width |
40mm |
| height |
130mm |
| depth |
115mm |
| shell |
| Shell thickness |
40mm |
| mechanical characteristics |
| cold head diameter |
2.50mm |
| color |
Grey |
| flame retardant rating, according to UL 94 |
V0 |
| cold head material |
zirconia ceramics |
| Shell Material |
metal |
| Shell surface material |
powder coating, gray |
| Cable Type |
single-mode glass fiber |
| Cable Type |
900 µm |
| cable structure |
Semi-Loose Compact Cable (STB) |
| Cable outer diameter |
6mm ... 12mm |
| Cable outer diameter |
6mm ... 12mm |
| wire diameter, including insulation |
900 µm |
| Single wire diameter |
900 µm (250/900 µm) |
| single line, color |
color coding for error-proof according to IEC 60794-2 |
| Halogen-free |
is |
| flame retardant |
is |
| optical fiber |
| fibers |
12 |
| optical fiber |
GOF |
| fiber type |
single-mode glass fiber, bending resistance G.657 A2 |
| Attenuation |
≤ 0.3 dB (1310 nm/1550 nm) |
| return loss |
≥ 50 dB (1310 nm/1550 nm) |
| transmission medium |
FO |
| Mechanical parameters |
| screw connection type |
M20 x 1.5 |
| Insertion/unplugging cycle |
≥ 500 |
