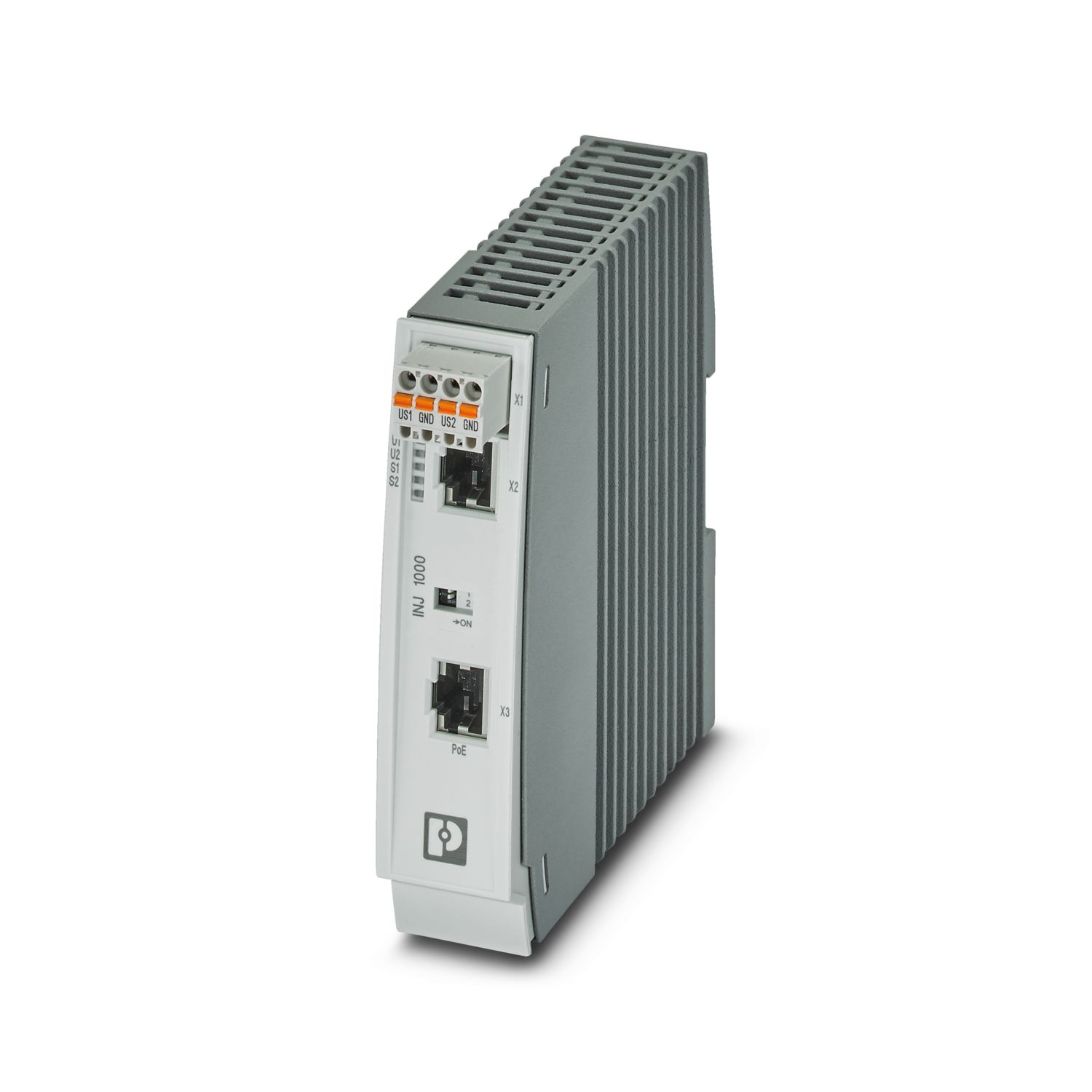

Phoenix INJ 1110-T-power supply 2703010,PoE injector, 60W, two RJ45 hole connectors, 10/100/1000 Mbps,DIN rail mounting, IP20, extended temperature range -40°C ... 75°C, potential isolation
| width |
30.2mm |
| height |
130mm |
| depth |
120mm |
| Application Description |
| Application Description |
for industrial applications only |
| Use Restrictions |
| CCCex Description |
is not permitted in China for use in potentially explosive areas. |
| color (shell) |
light gray (RAL 7035) |
| Identification Material (Shell) |
plastic |
| flame retardant rating, according to UL 94 |
V0 |
| Installation Type |
DIN rail mounting |
| Installation position |
Vertical installation |
| basic functions |
PSE/midspan, IEEE 802.3af, |
| Data: Power over Ethernet |
| serial transmission rate |
10/100/1000 Mbps |
| Frequency Range |
125 MHz |
| Connection Mode |
RJ45 female connector |
| Connection Method Considerations |
CAT5e |
| Channels |
1 |
| Pin Distribution |
1:1 |
| Transmission Length |
100 m (including tail cable) |
| Rated output voltage |
54V DC (PoE) |
| output power |
60W |
| Maximum output power |
75W (UL) |
| data: Ethernet |
| Connection Mode |
RJ45 female connector |
| Connection Method Considerations |
CAT5e |
| Product Type |
power supply |
| MTTF |
3062 years (SN 29500 standard, temperature 25°C, duty cycle 21%) |
| 1397 number (SN 29500 standard, temperature 40°C, duty cycle 34.25%) |
| 558 years (SN 29500 standard, temperature 40°C, duty cycle 100%) |
| electrical isolation |
VCC // FE // PoE |
| rated conditions |
12W (18V DC) |
| 9W (24V DC ... 48V DC) |
| test voltage data interface/power supply |
500V (50 Hz,1 min) |
| Power |
| Supply Voltage Range |
18V DC ... 57V DC |
| Rated supply voltage |
24V DC (SELV/PELV,ATEX application limits) |
| 48V DC |
| Maximum current consumption |
4.2 A |
| 2.73 A (24V DC, explosive area according to UL-HazLoc standard) |
| 1.34 A (48V DC, explosive area according to UL-HazLoc standard) |
| power consumption |
≤ 75W |
| protection circuit |
polarity protection |
| Function |
| current |
≤ 2 A |
