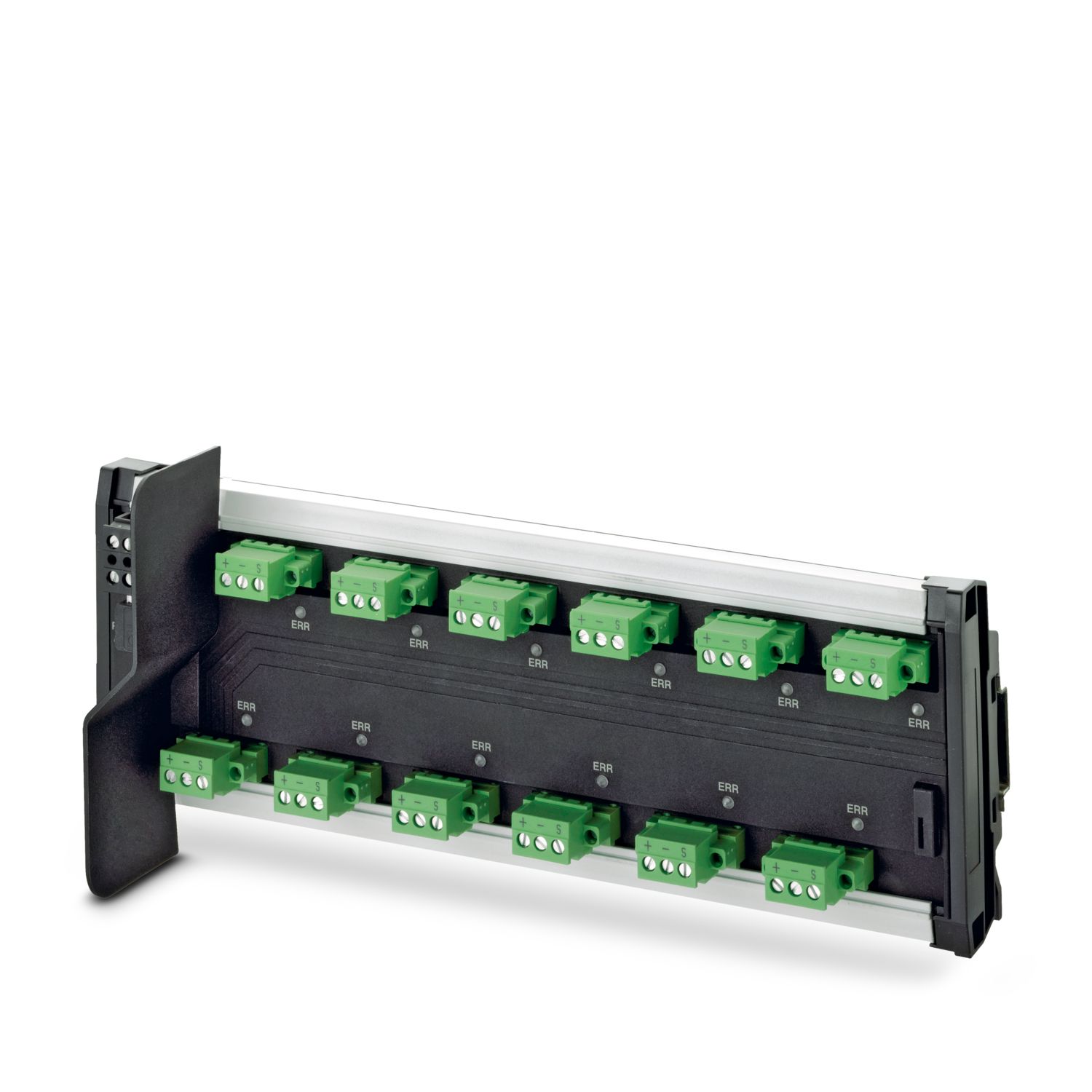

Phoenix FB-12SP-Device Coupler 2316310, a device coupler for Foundation Fieldbus and PROFIBUS PAs, with 12 terminal branches, connected to fieldbus terminal devices.
| Product Type | equipment coupler |
| MTTF | 723 years (25 degrees) |
| power supply | |
| Supply Voltage Range | 10.5V DC ... 32V DC (mains input) |
| Typical current consumption | 6.5 mA |
| power supply | |
| Flexible Wire Cross Section | 2.50 mm² ... 0.20 mm² |
| Hard Wire Cross Section | 2.50 mm² ... 0.20 mm² |
| WIRE CROSS SECTION, FLEXIBLE [AWG] | 24 ... 12 |
| Attachable Guide Cross Section AWG | 24 ... 12 |
| security data | |
| Input voltage UI | 32V (IIB (C/D)) |
| 24V (IIC (A/ B )) | |
| 17.5V (FISCO) | |
| lithium induction | 4 µH |
| capacitance Ci | 0 µF |
| Maximum output voltage Uo | Uin(branch line) |
| Maximum output current Io | 56 mA (branch line) |
| Maximum output power Po | 1.792W |
| power consumption | 6.5 mA (max, no load) |
| 0.68 A (maximum mains current) | |
| IIC/IIB (branch line): Maximum external inductance Lo/maximum external capacitance Co | / 80 nF |
| 0.26 mH | |
| signal | FOUNDATION Fieldbus |
| PROFIBUS | |
| data: Foundation Fieldbus and PROFIBUS PA segments | |
| Connection Mode | Each branch is equipped with a pluggable COMBICON screw connector |
| Channels | 12 |
| terminal resistance | 100 Ω, including external removable plug connection |
| 100 Ω (external removable plug) | |
| Flexible lead maximum cross section | 2.5 mm² |
| flexible lead | 0.2 mm² |
| Maximum cross section of rigid conductor | 2.5 mm² |
| Minimum cross section of rigid conductor | 0.2 mm² |
| Maximum conductor cross section AWG | 12 |
| Minimum Wire Cross Section AWG | 24 |
| Rated output voltage | ≤ 32V (each branch) |
| output current | 38 mA |
| Dimensional drawing | |
| width | 254.1mm |
| height | 112.5mm |
| depth | 83.5mm |
| flame retardant rating, according to UL 94 | V0 |
| corrosion resistance to ANSI-ISA 71.04-1985 - Severity level G3 | : |
| environmental conditions | |
| protection level | IP20 |
| ambient temperature (operation) | -50°C ... 90°C |
| ambient temperature (storage/transport) | -50°C ... 90°C |
| elevation | 2000 m |
| maximum allowable relative humidity (operating) | <95% (no condensation) |
| Allowable humidity (operating) | 5%... 95% (non-condensing) |
| Allowable humidity (storage/transportation) | No condensation |
| Impact | 30g, 11 ms |
| vibration (operation) | 10Hz ... 150 Hz,5g |
Phoenix FB-12SP-Equipment Coupler 2316310
