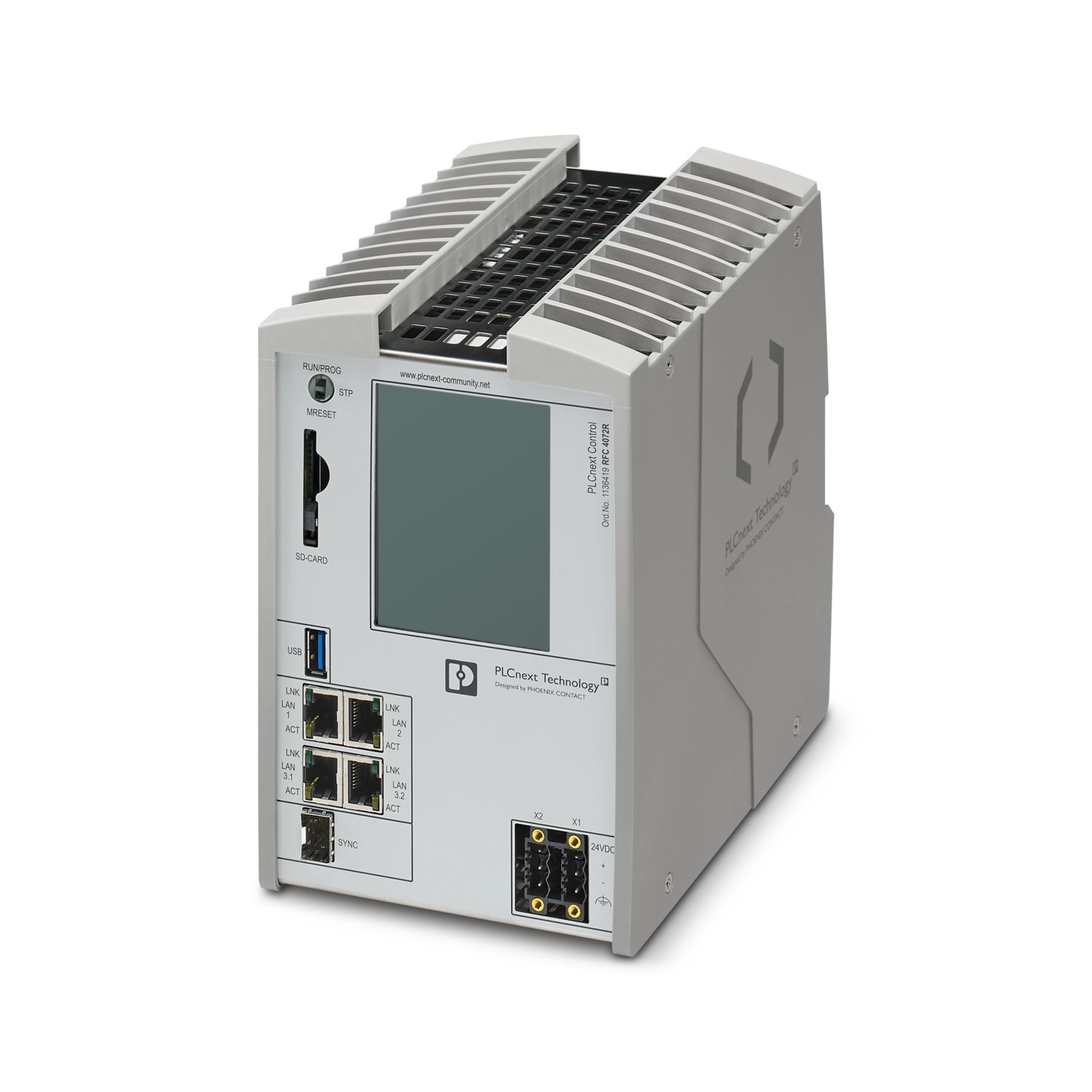

Phoenix RFC 4072S-Safety Controller 1051328, Safety Controller (SPS), PLCnext Control; Programming: high-level language and IEC 61131-3; Operating system: Yocto/Linux®(real-time); Programming tools: PLCnext Engineer, Eclipse®, Visual Studio®, MATLAB®/ Simulink®; Processor: Intel® Core™ i5-6300U, 2x 2.4 GHz (standard product).
| Product Type |
controller |
| Product Series |
PLCnext Control |
| type |
Stand-alone |
| insulation characteristics |
| protection level |
III (IEC 61140,EN 61140,VDE 0140-1) |
| pollution level |
2 (when installed in a control cabinet or enclosure with a degree of protection of IP54 or higher) |
| Display |
| Diagnostic Display |
is |
| Trusted Platform Module |
TPM 1.2 |
| Processor |
Arm® Cortex®-A9 800 MHz (CPU1) |
| Arm® Cortex®-A8 600 MHz (CPU2) |
| Intel®Core™ i5-6300U, 2x 2.4 GHz (Standard Product) |
| reserved data storage |
2 Mbyte |
| IEC 61131 runtime system |
| Program Memory |
16 Mbyte |
| data storage system |
32 Mbyte |
| PROFINET |
| Device Features |
PROFINET controller, PROFINET equipment |
| Update Rate |
minimum 1 ms |
| Conformance Class |
B |
|
maximum 256 |
| Supported Features |
topology detection |
| Automatic equipment replacement |
| parameterizable alarm and start characteristics |
| Vendor ID |
00B0hex/ 176dez |
| Function |
| Diagnostic Display |
is |
| redundancy function |
No |
| safety function |
is |
| Function |
| Supported Programming Languages |
Symbolic Flowchart (SFC) |
| Ladder Diagram (LD) |
| Function Block Diagram (FBD) |
| Structure Text (ST) |
| C |
| C# |
| Java |
| Python® |
| Simulink® |
| System Requirements |
| Engineering Design Tools |
PLCnext Engineer |
| Eclipse® |
| Visual Studio® |
| MATLAB®/ Simulink® |
| Application Interface |
OPC UA® |
| power consumption |
25W typical (without fan module) |
| maximum 35W (with fan module) |
| rated conditions |
Typical 24W (without fan module) |
| Typical 24W (without fan module) |
| power supply |
| supply voltage |
24V DC |
| Supply Voltage Range |
19.2V DC ... 30V DC (with ripple (3.6VPP)) |
| Connect power supply |
screw terminal block, pluggable |
| Typical current consumption |
1 A |
| Real Time Clock |
| Real Time Clock |
integrated (capacitive buffer) |
| Real Time Clock Description |
1.73 s/day = 20 ppm at 25°C |
| Tightening torque |
0.5 ... 0.6 Nm |
| COMBICON connector |
| Hard Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| Flexible Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| Attachable Guide Cross Section AWG |
24 ... 12 |
| Web Server |
is |
| USB |
| interfaces |
1 |
| Connection Mode |
Type A USB, pin connector |
| Ethernet |
| bus system |
RJ45 |
| interfaces |
4 |
| Connection Mode |
RJ45 female connector |
| Connection Method Considerations |
auto-negotiation and auto-crossover, auto-polarity switching |
| transmission speed |
10/100/1000 Mbps (LAN 1/LAN 2, half-duplex or full-duplex) |
| 10/100 MBit/s (LAN3.1/LAN3.2 (internal switching), half-duplex or full-duplex) |
