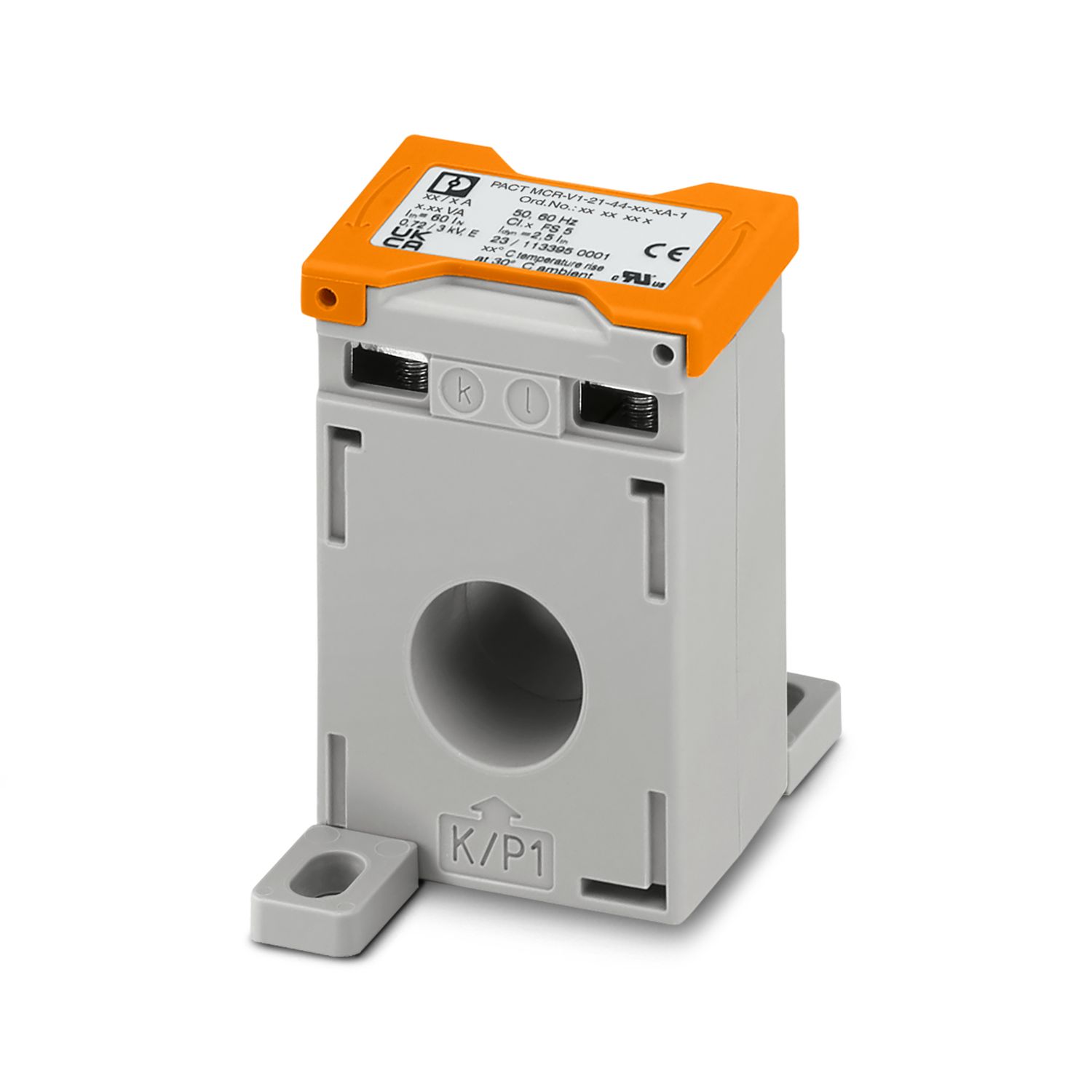

Phoenix PACT MCR-V1-21-44-300-5A-1-current transformer 2277789, bus current transformer, 300 A AC main current; 5 A AC secondary current; Accuracy 1; Rated power 10 VA
| Product Type | current transformer |
| Rated insulation voltage | 1 kV (phase/neutral conductor) |
| Overview | |
| can be calibrated | No |
| Converter Type | bus current transformer |
| current transformer | |
| Rated power | 10 VA |
| Rated hot melt short-time current | Ith= 60 * In |
| Thermal rated continuous current | Id= 1.2 * In |
| Rated surge current | Idyn= 2.5 * Ith |
| Rated frequency fn | 50Hz |
| 60Hz | |
| Rated primary current Isn | 0 A AC ... 300 A AC |
| can be calibrated | No |
| Converter Type | bus current transformer |
| signal | |
| Name | current output |
| Rated current of secondary side Isn | 5 A AC |
| Surge current limiting factor | FS 5 |
| Accuracy | 1 |
| Connection Mode | screw connection |
| Flexible Wire Cross Section | 2x 10 mm² (secondary terminal block) |
| Tightening torque | 2 Nm |
| Product Size | |
| width | 31mm |
| height | 68mm |
| depth | 44mm |
| alternative installation product size | |
| width | 44mm |
| height | 68mm |
| depth | 31mm |
| Round wire | |
| diameter | 20mm |
| color | gray (RAL 7042) |
| flame retardant rating to UL 94 | V0 (housing) |
| Shell Material | PA 6.6 |
| environmental conditions | |
| ambient temperature (operation) | -25°C ... 40°C |
| ambient temperature (storage/transport) | -25°C ... 40°C |
| elevation | ≤ 1000 m |
| Allowable humidity (operating) | Indoor applications only, no condensation |
| Insulation Grade | H |
