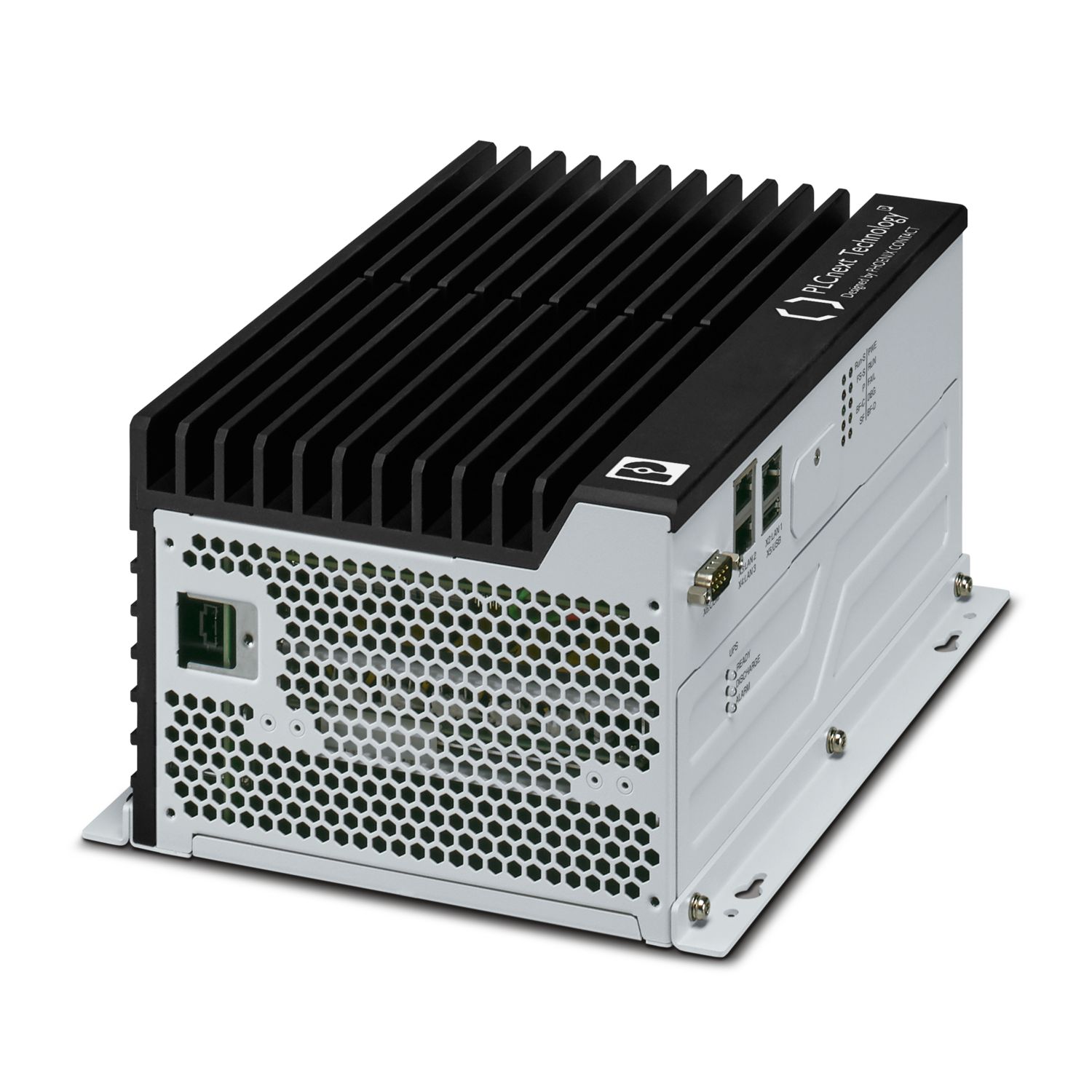

Phoenix BPC 9102S-Safety Controller 1246285, Safety Controller (SPS), PLCnext Control; Programming: high-level language and IEC 61131-3; Operating system: Yocto/Linux®(real-time); Programming tools: PLCnext Engineer, Eclipse®, Visual Studio®, MATLAB®/ Simulink®; Processor: Intel® Core™ i7-10700TE, 8x 2 GHz (standard product).
| Product Type |
controller |
| product series |
PLCnext Control |
| type |
Stand-alone |
| insulation characteristics |
| protection level |
III (IEC 61140,EN 61140,VDE 0140-1) |
| Trusted Platform Module |
fTPM 1.2 (Encryption Technology Non-Chinese) |
| Processor |
Arm® Cortex®-A9 800 MHz (CPU1) |
| Arm® Cortex®-A8 600 MHz (CPU2) |
| Intel®Core™ i7-10700TE, 8x 2 GHz (Standard Product) |
| reserved data storage |
4 Mbyte |
| RAM |
16384 Mbyte DDR4-2400 |
| IEC 61131 runtime system |
| Program Memory |
32 Mbyte |
| data storage system |
64 Mbyte |
| PROFINET |
| Device Features |
PROFINET controller, PROFINET equipment |
| Update Rate |
minimum 1 ms |
| Conformance Class |
B |
|
maximum 256 |
| Function |
| safety function |
is |
| Function |
| Supported Programming Languages |
Instruction List (IL) |
| Symbolic Flowchart (SFC) |
| Ladder Diagram (LD) |
| Function Block Chart (FBD) |
| Structure Text (ST) |
| C |
| C# |
| Java |
| Python® |
| Simulink® |
| System Requirements |
| Engineering Design Tools |
PLCnext Engineer |
| Eclipse® |
| Visual Studio® |
| MATLAB®/ Simulink® |
| Application Interface |
OPC UA® |
| power consumption |
Typical 50W |
| Max. 55W |
| rated conditions |
Max. 55W |
| power supply |
| supply voltage (DC) |
24V DC |
| Supply Voltage Range |
19.2V DC ... 30V DC (with ripple (3.6VPP)) |
| Connect power supply |
screw terminal block, pluggable |
| Maximum current consumption |
2.3 A |
| Typical current consumption |
2.1 A |
| Real Time Clock |
| Real Time Clock |
integrated (with battery) |
| COMBICON connector |
| Hard Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| Flexible Wire Cross Section |
0.2 mm² ... 2.5 mm² |
| Attachable Guide Cross Section AWG |
24 ... 12 |
| Web Server |
is |
| USB |
| interfaces |
1 |
| Connection Mode |
Type A USB, pin connector |
