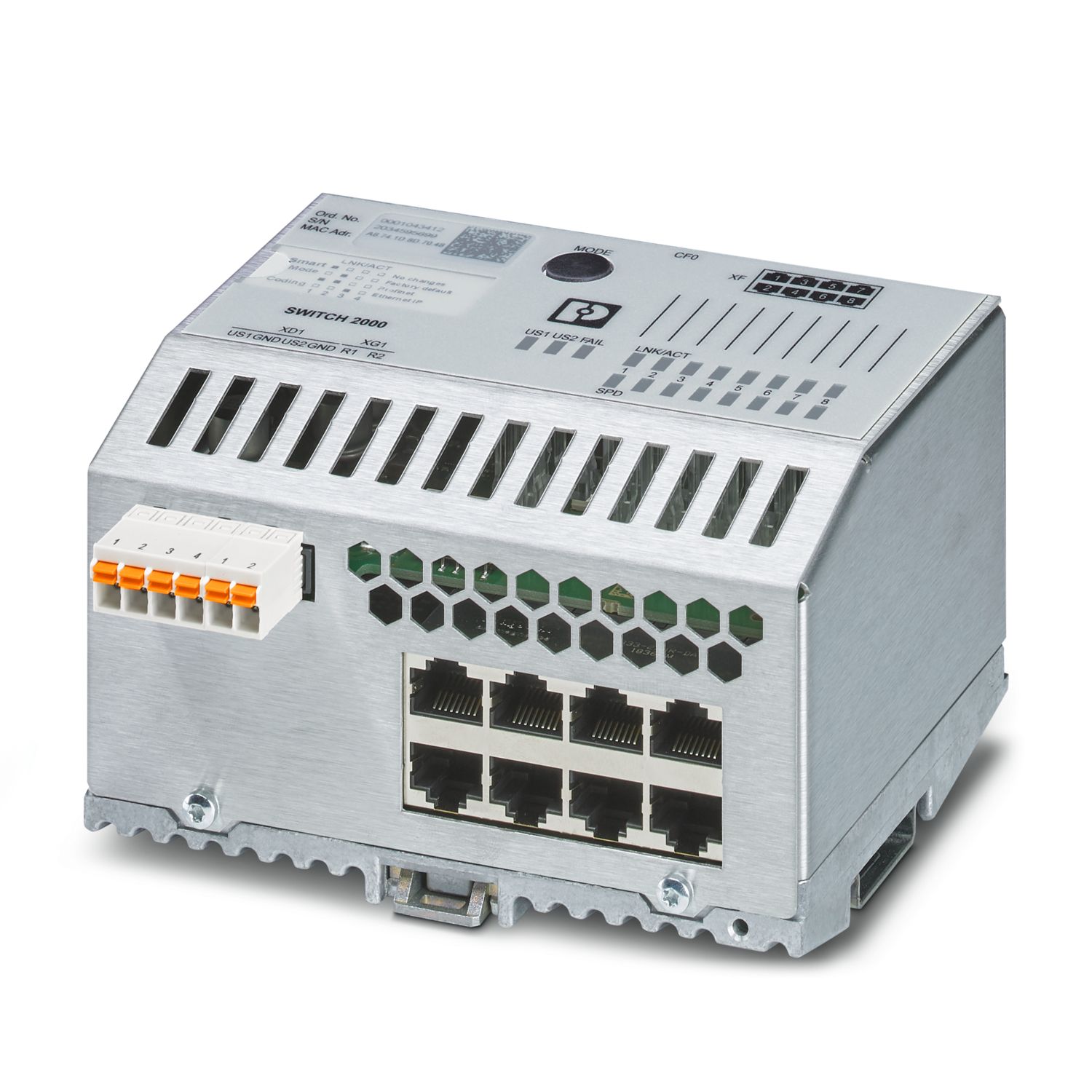

Phoenix FL SWITCH 2508-Industrial Ethernet Switch 1043484,Managed Switch 2000 Series, 8 RJ45 Port 10/100/1000 Mbps, Protection Level: IP20, Ambient Temperature (Operating): -40°C ... 70°C, Power Supply Voltage Range: 19V DC ... 32V DC,PROFINET Conformance-Class B, Extended Temperature Range, Development Process Has Passed IEC 62443-4-1 Certification, Compatible with IEC 62443-4-2
width
128mm
height
113mm
depth
67mm
Overview
phone or on-site support (charges apply)
Application Description
Application Description
for industrial applications only
material base plate
die-cast aluminum, corrosion resistant
Shell Material
Advanced Steel 1.4305
Installation Type
DIN rail mounting
Ethernet (RJ45)
Connection Mode
RJ45
Connection Method Considerations
adaptive and self-crossover
transmission speed
10/100/1000 Mbps
transmission principle
copper cable
Transmission Length
100 m (per segment)
signal LED
data reception, link status
Channels
8 (RJ45 port)
Product Type
Switch
Product Series
Managed Switch 2000
type
Terminal Design
MTTF
357.82 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
191.24 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
25.65 years (SN 29500 standard, temperature 70°C, duty cycle 100%)
special nature
extended temperature range
development process is IEC 62443-4-1 certified
Compatible with IEC 62443-4-2
signal delay
≥ 1.9 & micro;s (store and forward mode, 10/100/1000 Mbps, depending on frame size)
basic functions
store-and-forward switch, conforming to IEEE 802.3
insulation characteristics
protection level
III (VDE 0106)
pollution level
2
Switch Features
diagnostic function
RMON History
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
N:1-Portmirroring
ACD (Address Conflict Detection)
SysLog
CRC-Surveillance
basic functions
store-and-forward switch, conforming to IEEE 802.3
