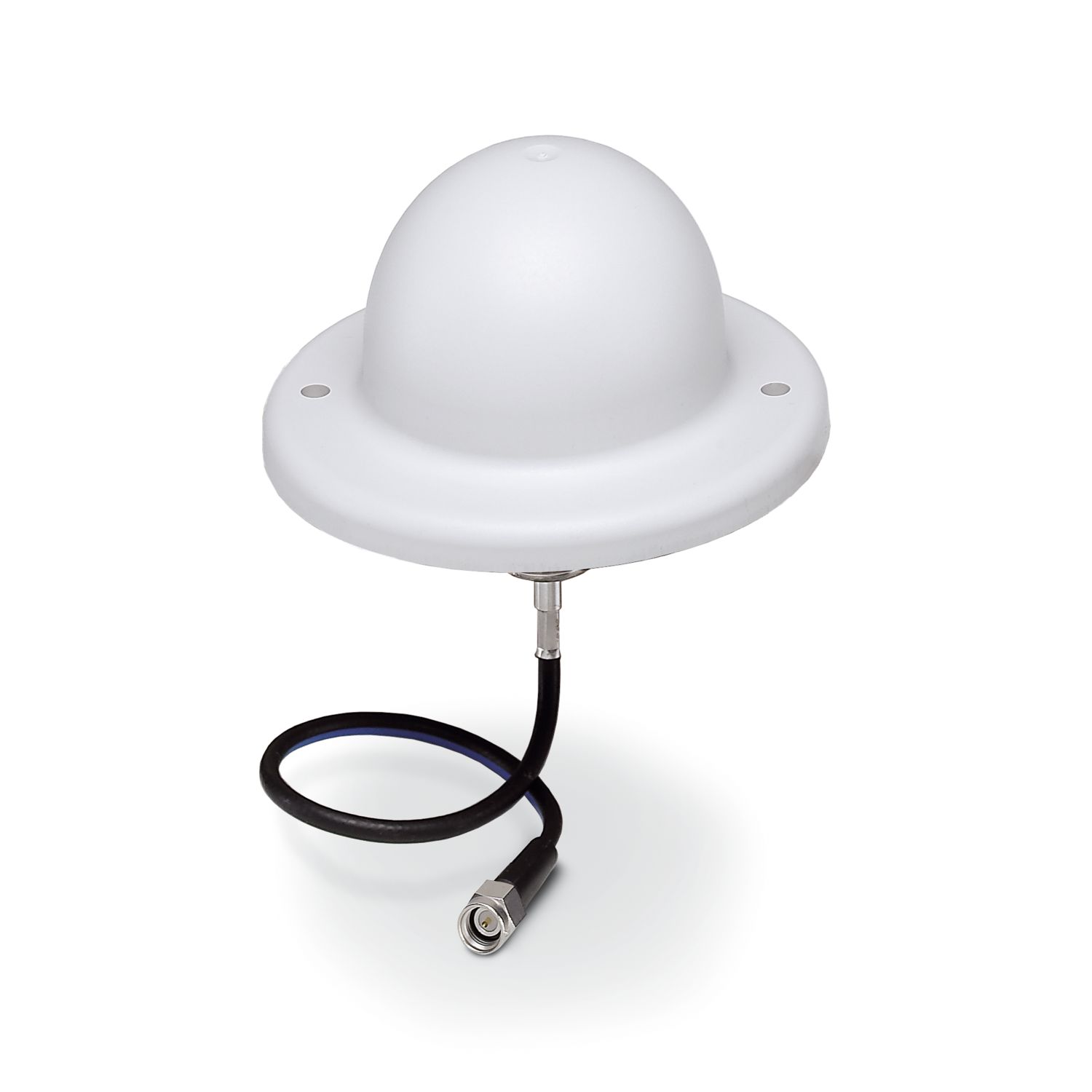

Phoenix RAD-ISM-2400-ANT-VAN-3-0-RSMA-antenna 2701358, omnidirectional antenna, with anti-damage protection, suitable for control cabinet installation, frequency band: 2.4 GHz, gain: 3 dBi, protection class: IP55, impact resistance: IK08, interface: RSMA (pin type), 1.5 m connection cable included
| Product Type |
antenna |
| radiation characteristics |
omnidirectional |
| gain |
3 dBi |
| vertical beam width |
85 ° |
| horizontal beam width |
360 ° |
| polarity protection |
Linear Vertical |
| frequency band |
2.4 GHz |
| Frequency Range |
2.4 GHz ... 2.5 GHz |
| impedance |
50 Ω |
| Maximum capacitance |
75.00W |
| 50 Ω system |
≤ 1.50 |
| connection technology |
| Connection Mode |
RSMA (M) |
| Dimensional drawing |
|
| height |
43mm |
| diameter |
86mm |
| Identification Materials |
ASA |
| Aluminum |
| flame retardant rating, according to UL 94 |
V0 |
| outer sheath, material |
RADOX®(LSFH) |
| Cable Length |
1.50 m |
| connection cable |
is |
| Cable outer diameter |
3.20mm |
| outer sheath, material |
RADOX®(LSFH) |
| minimum bending radius, fixed mounting |
5mm |
| environmental conditions |
| protection level |
IP55 |
| ambient temperature (operation) |
-40°C ... 80°C |
| ambient temperature (storage/transport) |
-40°C ... 80°C |
| wind speed |
12.34568 km/h (force 10 N) |
| Installation Type |
control cabinet |
| Wall Mount |
| Assembly Instructions |
Optional Wall Mount |
| Outdoor and Indoor |
