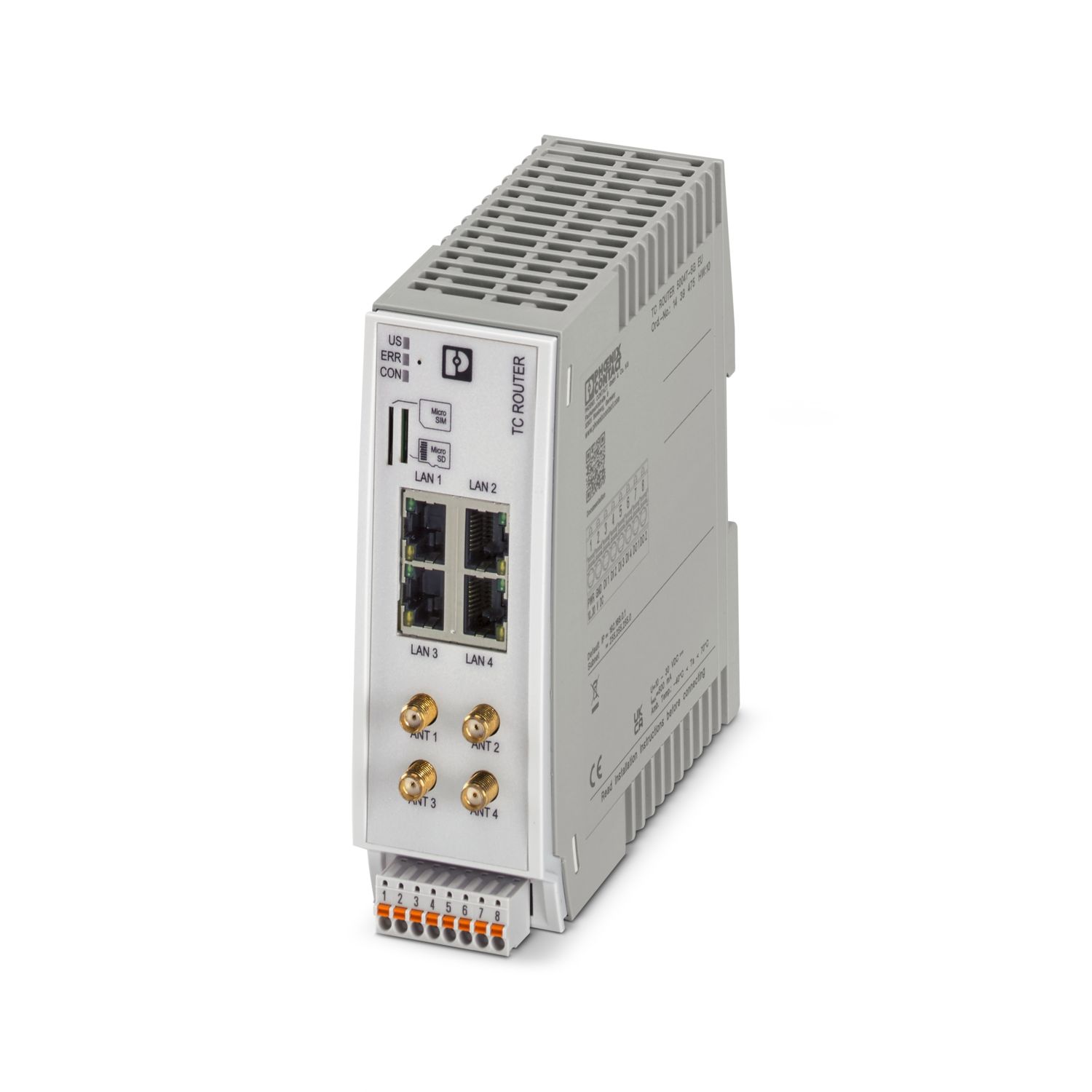

Phoenix TC ROUTER 5004T-5G EU-Router 1439475, Industrial 5G Router (5G NR,SA/NSA),EU Equipment, Fallback to 4G (LTE Advanced Pro) and 3G (HSPA +),4 Port Switch, Firewall, NAT,IPsec and OpenVPN,4 SMA-F Antenna Sockets, SMS and Email Transmission, 4 Digital Input, 2 Digital Output
| Product Type |
Cellular Router |
| Application |
Ethernet |
| MTTF |
378 years (SN 29500 standard, temperature 25°C, duty cycle 21%) |
| 164 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%) |
| 65 years (SN 29500 standard, temperature 40°C, duty cycle 100%) |
| electrical isolation |
Ethernet // PE |
| rated conditions |
7.2W |
| Main Power Type |
Cellular Communications |
| Power |
| Supply Voltage Range |
10V DC ... 30V DC (via pluggable in-line terminals) |
| Typical current consumption |
300 mA (24V DC) |
| 90 mA (24V DC with energy saving mode activated) |
| Function |
| Management |
Web-based management |
| SNMPv1/v2/v3 |
| SSHv2 |
| digital quantity |
| Input Description |
Digital Input |
| Input Number |
4 |
| voltage input signal |
10V DC ... 30V DC |
| toggle level "0" signal |
< 8V DC |
| Toggle Level "1" Signal |
10V DC ... 30V DC |
| signal |
| Output Name |
digital output |
| outputs |
2 |
| voltage output signal |
10V DC ... 30V DC (depending on operating voltage) |
| current output signal |
≤ 50 mA (non-short circuit protection) |
| Power |
| Connection Mode |
In-line spring connection |
| flexible conductor cross-section with cold press head without insulation sleeve |
0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section, with sleeve, with plastic insulation sleeve |
0.25 mm² ... 0.75 mm² |
| single wire/wiring point, rigid |
0.14 mm² ... 1.5 mm² |
| single wire/wiring point, flexible |
0.14 mm² ... 1.5 mm² |
| WIRE CROSS SECTION, FLEXIBLE [AWG] |
26 ... 16 |
| stripping length |
9.00mm |
| Web Server |
is |
| data: Ethernet interface, 10/100/1000Base-T(X), compliant with IEEE 802.3 |
| serial transmission rate |
10/100/1000 Mbps, Adaptive |
| Connection Mode |
RJ45 Hole Connector, Shielded |
| Channels |
4 |
| Transmission Length |
100 m (shielded twisted pair) |
| Supported Protocols |
TCP/IP,UDP/IP,HTTP(S),(S)FTP |
| VPN: IPsec,OpenVPN,GRE |
| Auxiliary Agreement |
ARP,DHCP,DNS,DynDNS,PING (ICMP),SMTP(S),NTP,SSL/TLS,STARTTLS,SMS |
| Wireless |
| Interface Description |
5G (NR) / 4G (LTE Advanced Pro) / 3G (HSPA+) |
| Mode of operation |
LTE (CAT16) |
| 5G NR (3GPP R15) |
| Frequency Range |
2100 MHz (5G NR NSA,n1) |
| 1800 MHz (5G NR NSA,n3) |
| 850 MHz (5G NR NSA,n5) |
| 2600 MHz (5G NR NSA,n7) |
| 900 MHz (5G NR NSA,n8) |
| 800 MHz (5G NR NSA,n20) |
| 700 MHz (5G NR NSA,n28) |
| 2600 MHz (5G NR NSA,n38) |
| 2300 MHz (5G NR NSA,n40) |
| 2600 MHz (5G NR NSA,n41) |
| 3700 MHz (5G NR NSA,n77) |
| 2100 MHz (5G NR SA,n1) |
| 1800 MHz (5G NR SA,n3) |
| 850 MHz (5G NR SA,n5) |
| 2600 MHz (5G NR SA,n7) |
| 900 MHz (5G NR SA,n8) |
| 800 MHz (5G NR SA,n20) |
| 700 MHz (5G NR SA,n28) |
| 2600 MHz (5G NR SA,n38) |
| 2300 MHz (5G NR SA,n40) |
| 2600 MHz (5G NR SA,n41) |
| 3700 MHz (5G NR SA,n77) |
| 3500 MHz (5G NR SA,n78) |
| 2100 MHz (LTE (FDD), B1) |
| 1800 MHz (LTE (FDD),B3) |
| 850 MHz (LTE (FDD), B5) |
| 2600 MHz (LTE (FDD), B7) |
| 900 MHz (LTE (FDD), B8) |
| 800 MHz (LTE (FDD),B20) |
| 700 MHz (LTE (FDD),B28) |
| 1500 MHz (LTE (FDD),B32) |
| 2600 MHz (LTE (TDD),B38) |
| 2300 MHz (LTE (TDD),B40) |
| 2500 MHz (LTE (TDD),B41) |
| 3500 MHz (LTE (TDD),B42) |
| 3700 MHz (LTE (TDD),B43) |
| 2100 MHz (WCDMA,B1) |
| 850 MHz (WCDMA,B5) |
| 900 MHz (WCDMA,B8) |
| Data Rate |
2.1 Gbps (5G NR SA,DL) |
| 900 Mbps (5G NR SA,UL) |
| 2.5 Gbps (5G NR NSA,DL) |
| 650 Mbps (5G NR NSA,UL) |
| 1 Gbps (LTE,DL) |
| 200 Mbps (LTE,UL) |
| number. |
4 |
| Connection Mode |
SMA (female) |
| impedance |
50 Ω |
| SIM interface |
1.8 V,3 V |
| Micro SIM (3FF) |
| State support |
Europe |
