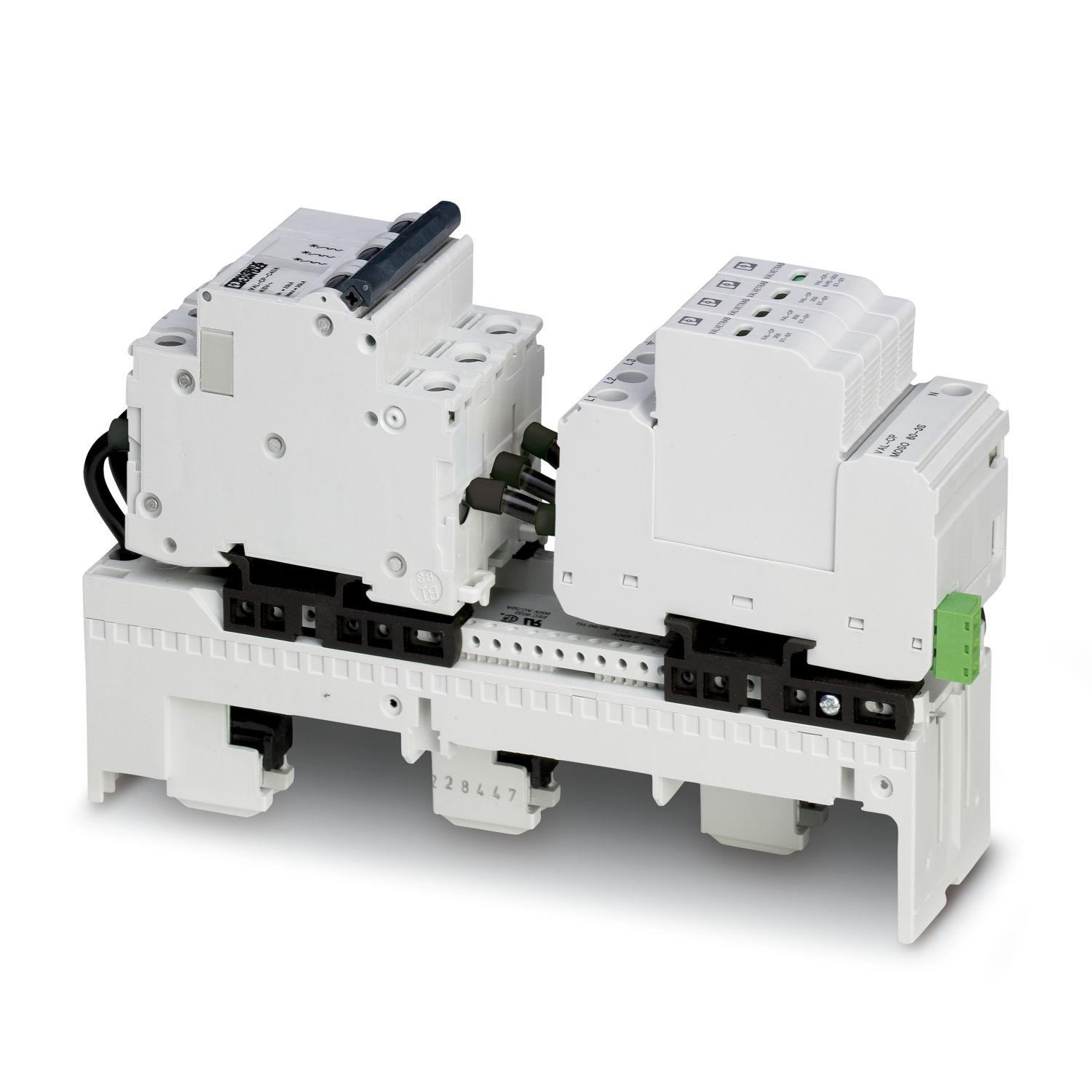

Phoenix VAL-CP-MOSO 60-3C-FM-2 type surge protector 2804416, type 2 surge protector and miniature circuit breaker are used in combination, with protector monitoring, diagnosis and status display and remote indication contacts. Design form: 4-wire system (L1,L2,L3,PEN), using 60mm system installation technology (power rail system)
Product Type
surge protector
IEC Category
II
T2
EN Type
T2
IEC power supply system
TN-C
TT
type
Modules with 60mm system mounting technology
Bits
3
Surge protection fault alarm
visual status indication window and remote alarm contact
insulation characteristics
Overvoltage Category
III
pollution level
2
Rated frequency fN
50Hz (60 Hz)
Rated voltage UN
240V AC (230/400V AC ... 240/415V AC)
indicator/remote signaling
Connection Name
Remote alarm contact
switching function
changeover contact
Nominal operating voltage
5V AC ... 250V AC
125V DC (200 mA DC)
Operating current
5 mA AC ... 1 A AC
1 A DC (30V DC)
PEN wire connection
Connection Mode
screw connection
thread
M5
Tightening torque
4.5 Nm
stripping length
16mm
Flexible Wire Cross Section
2.5 mm² ... 16 mm²
Rigid conductor cross section
2.5 mm² ... 25 mm²
Attachable Guide Cross Section AWG
12 ... 4
phase line connection
Connection Mode
60mm power rail system
Remote alarm contact
Connection Mode
pluggable screw connection
thread
M2
Tightening torque
0.25 Nm
stripping length
7mm
Flexible Wire Cross Section
0.14 mm² ... 1.5 mm²
Rigid conductor cross section
0.14 mm² ... 1.5 mm²
Attachable Guide Cross Section AWG
28 ... 16
Dimensional drawing
width
54mm
height
220mm
depth
134mm
color
light gray (RAL 7035)
flame retardant rating, according to UL 94
V-0
material
600
insulation material
PBT, PA6, PA66
Material Group
I
Shell Material
PBT
PA 6
PA 6.6
2804403
