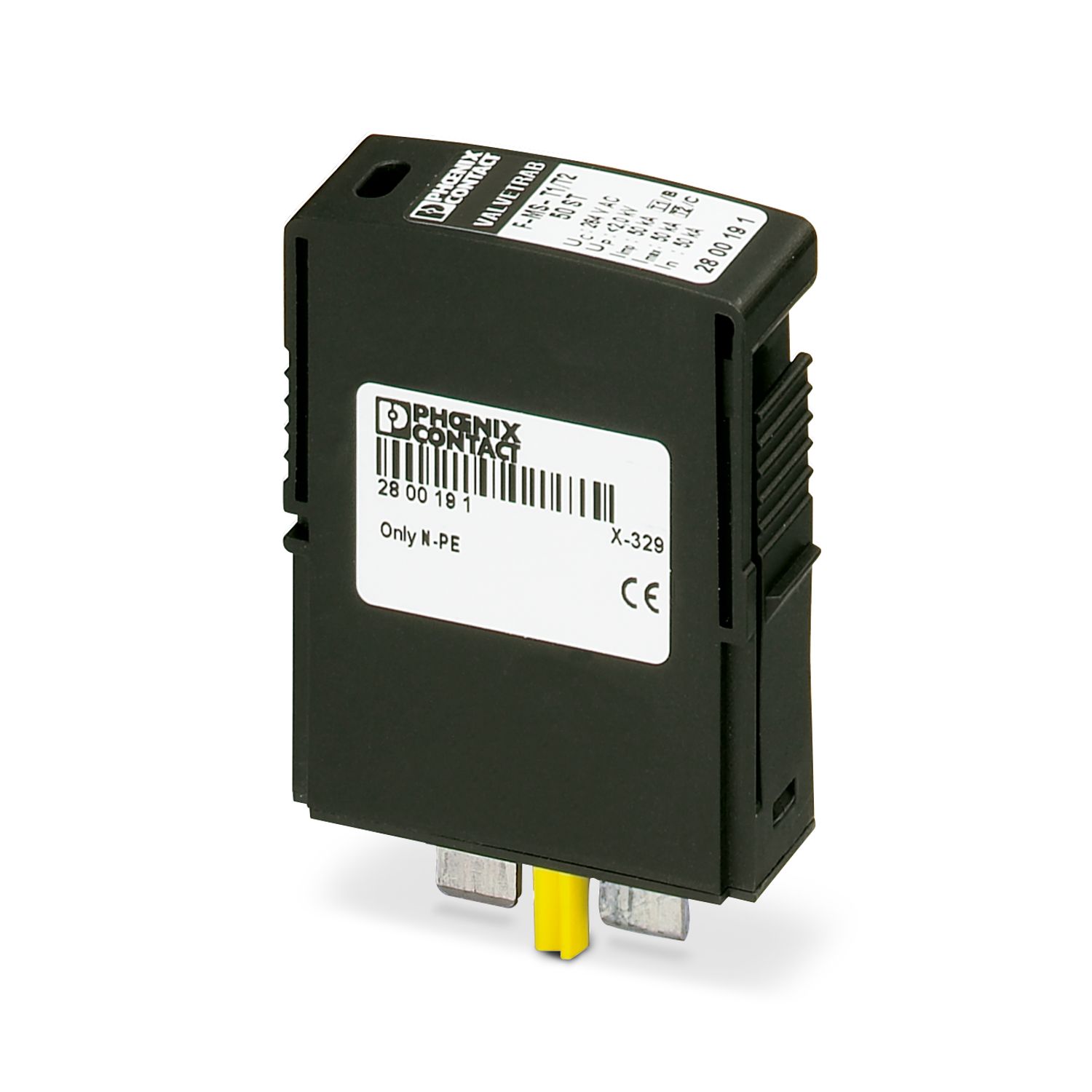

Phoenix F-MS-T1/T2 50 ST-1/2 type surge protective connector 2800191,N-PE spare plug, used for VAL-MS-T1/T 2 335/12.5 plug-in lightning arrester/surge protector.
| Product Type |
Spare Plug |
| product series |
VALVETRAB MS |
| IEC Category |
I / II |
| T1 / T2 |
| T1 |
| EN Type |
T1 / T2 |
| T1 |
| IEC power supply system |
TN-S |
| TT |
| type |
DIN rail module, split, detachable |
| Bits |
1 |
| Surge protection fault alarm |
with visual status indication window |
| insulation characteristics |
| Overvoltage Category |
III |
| pollution level |
2 |
| Rated frequency fN |
50Hz (60 Hz) |
| Connection Mode |
pluggable |
| Dimensional drawing |
|
| width |
17.7mm |
| height |
47mm |
| depth |
67.3mm |
| Horizontal stitch pitch |
1 Partition |
| color |
black (RAL 9005) |
| flame retardant rating to UL 94 |
V-0 |
| material |
600 |
| insulation material |
PA 6.6/PBT |
| Material Group |
I |
| Shell Material |
PA 6.6 |
| PBT |
| protection channel |
N-PE |
| movement direction |
N-PE |
| Rated voltage UN |
240/415V AC (TN-S) |
| 240/415V AC (TT) |
| Rated frequency fN |
50Hz (60 Hz) |
| Maximum continuous operating voltage UC |
264V AC |
| Residual Flow IPE |
≤ 5 µA |
| Standby power consumption PC |
≤ 1.3 mVA |
| Nominal discharge current In(8/20)µs |
50 kA |
| Maximum discharge current Imax(8/20) µs |
50 kA |
| impulse discharge current (10/350)& micro;s, charging |
25 |
| impulse discharge current (10/350)& micro;s, specific energy |
625 kJ/Ω |
| impulse discharge current (10/350)& micro;s, peak limp |
50 kA |
| Disconnect freewheeling capacity Ifi |
100 A (264V AC) |
| voltage protection level Up |
≤ 1.7 kV |
| Residual pressure Ures |
≤ 0.6 kV (In) |
| ≤ 0.5 kV (10 kA) |
| ≤ 0.5 kV (at 5 kA) |
| ≤ 0.4 kV (at 3 kA) |
| 6 kV (1.2/50) & micro;s |
≤ 1.7 kV |
| UT |
1200V AC (200 ms/withstand mode) |
| response time tA |
≤ 100 ns |
| environmental conditions |
| protection level |
IP20 |
| ambient temperature (operation) |
-40°C ... 80°C |
| ambient temperature (storage/transport) |
-40°C ... 80°C |
| elevation |
≤ 2000 m (amsl) |
| Allowable humidity (operating) |
5%... 95% |
| Impact Force (Operation) |
30g (half sine/11 ms/ 3x ± X,± Y, ± Z) |
| vibration (operation) |
7.5g (10 ... 500Hz / 2.5 h / X,Y,Z) |
