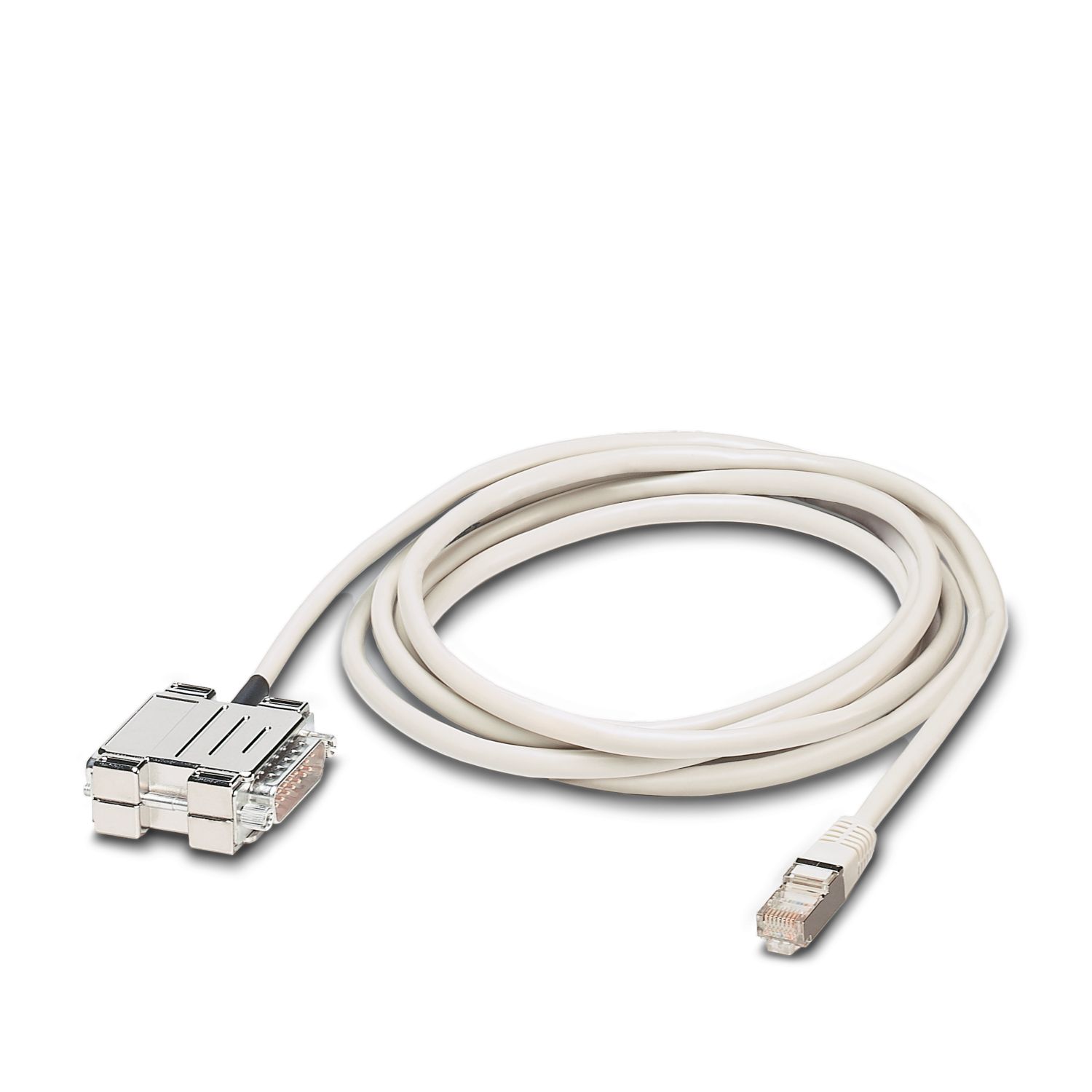

Phoenix CABLE-25/8/250/RSM/SIMO611D-adapter cable 2981583, cable adapter for PSR overspeed safety relay (PSR-RSM4 and PSR-MM30), 25/8 core, cable length: 2.5 m, applicable controller: Siemens,Heidenhain
| Product Type | Adapter Cable |
| to equipment | |
| Connection Mode | RJ45 |
| Encoder / PLC | |
| Connection Mode | D-SUB-25 pin type/D-SUB-25 hole type |
| Bits | 25 |
| outer sheath, material | LSHF (FRNC) |
| Wire Material | copper stranded wire |
| Cable Length | 2.5 m |
| outer sheath, material | LSHF (FRNC) |
| Cable cross-sectional area | 0.48 mm² (AWG 26) |
| Wire Material | copper stranded wire |
| Shielding | aluminum foil with plastic coating, tinned copper screen |
| welded to the D-SUB housing | |
| cable resistance | ≤ 260 Ω/km |
| environmental conditions | |
| ambient temperature (operation) | -20°C ... 60°C (for fixed installation) |
| 0°C ... 50°C (for removable mounting) | |
| ambient temperature (storage/transport) | -20°C ... 70°C |
Phoenix CABLE-25/8/250/RSM/SIMO611D-Adapter Cable 2981583
