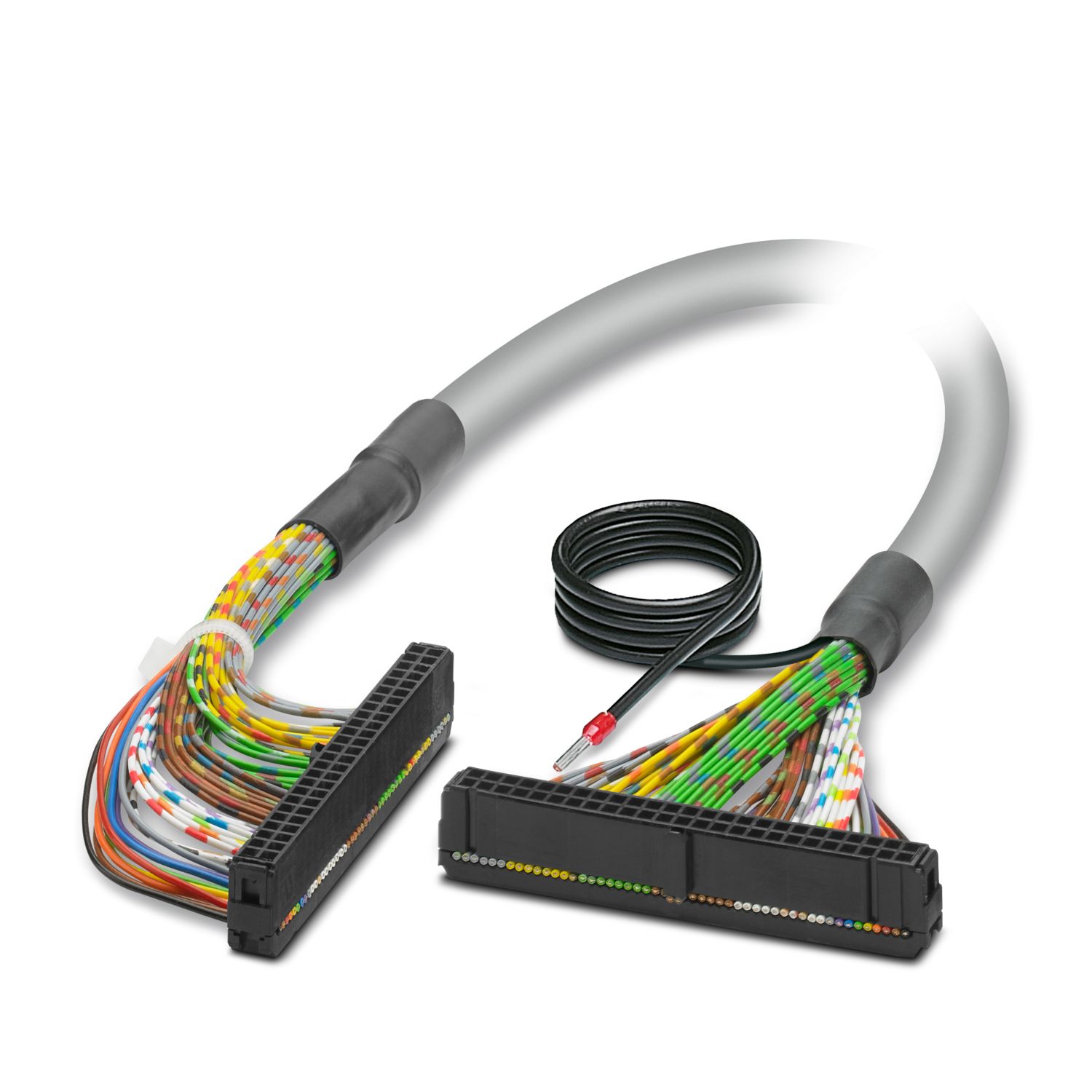

Phoenix FLK 50/EZ-DR/ 500/KONFEK-cable 2289586, round system cable; connection 1: IDC/FLK hole connector (1x 50-position); connection 2: IDC/FLK hole connector (1x 50-position); cable length: 5 m
| Product Type |
System Cable |
| environmental conditions |
| protection level |
IP00 |
| protection level (installation position) |
≥ IP54 (installation position) |
| Ambient temperature (operating) (fixed installation) |
-40°C ... 70°C (fixed installation) |
| ambient temperature (operating) (movable installation) |
-10°C ... 70°C (movable installation) |
| ambient temperature (storage/transport) |
-40°C ... 80°C |
| elevation |
≤ 2000 m |
| Nominal operating voltage (AC) |
≤ 30V AC |
| Nominal operating voltage (DC) |
≤ 60V DC |
| Rated operating mode |
100% Eligible |
| current (per path, 50°C) |
≤ 1 A (expanded, see attenuation) |
| current (per path, 70°C) |
≤ 0.6 A (expanded, see attenuation) |
|
| Applicable I/O Card |
6ES7521-1BL00-0AB0 |
| 6ES7521-1BL10-0AA0 |
| 6ES7522-1BL00-0AB0 |
| 6ES7522-1BL01-0AB0 |
| 6ES7522-1BL10-0AA0 |
| 6ES7523-1BL00-0AA0 |
| 6ES7531-7KF00-0AB0 |
| 6ES7531-7LH00-0AB0 |
| 6ES7531-7MH00-0AB0 |
| 6ES7531-7NF00-0AB0 |
| 6ES7531-7NF10-0AB0 |
| 6ES7531-7PF00-0AB0 |
| 6ES7532-5HF00-0AB0 |
| Supported Controller SIEMENS S7-300 / ET 200 M |
| Applicable I/O Card |
CPU 313C |
| CPU 313C-2DP |
| CPU 313C-2PtP |
| CPU 314C-2DP |
| CPU 314C-2PtP |
| 6ES7321-1BL00-0AA0 |
| 6ES7322-1BL00-0AA0 |
| 6ES7322-8BH01-0AB0 |
| 6ES7323-1BL00-0AA0 |
| 6ES7331-1KF01-0AB0 |
| 6ES7331-7NF00-0AB0 |
| 6ES7331-7NF10-0AB0 |
| 6ES7331-7PF01-0AB0 |
| 6ES7331-7PF11-0AB0 |
| 6ES7332-5HF00-0AB0 |
| 6ES7350-2AH01-0AE0 |
| 6ES7357-4AH01-0AE0 |
|
| Applicable I/O Card |
6ES7421-1BL01-0AA0 |
| 6ES7421-7BH01-0AB0 |
| 6ES7421-7DH00-0AA0 |
| 6ES7422-1BL00-0AA0 |
| 6ES7422-7BL00-0AB0 |
| 6ES7431-0HH0-0AB0 |
| 6ES7431-1KF00-0AB0 |
| 6ES7431-1KF10-0AB0 |
| 6ES7431-1KF20-0AB0 |
| 6ES7431-7KF00-0AB0 |
| 6ES7431-7KF10-0AB0 |
| 6ES7431-7QH00-0AB0 |
| 6ES7432-1HF00-0AB0 |
| Supported Controller SCHNEIDER ELECTRIC Modicon TSX QUANTUM |
| Applicable I/O Card |
DDI 353 |
| DDI 841 |
| DDI 853 |
| DAI 340 |
| DAI 440 |
| DAI 453 |
| DDO 353 |
| DDM 390 |
| ACI 030 |
| ACI 040 |
| ATI 030 |
| ARI 030 |
| AVI 030 |
| ACO 020 |
| ACO 130 |
| AVO 020 |
| EHC 105 |
| EHC 202 |
|
| Applicable I/O Card |
1756-IA16I |
| 1756-IB16D |
| 1756-IB16I |
| 1756-IB32 |
| 1756-IH16I |
| 1756-OB32 |
| 1756-IF8 |
| 1756-IF16 |
| 1756-HSC |
| 1756-M02AE |
| Supported Controller HONEYWELL Experion PKS C200 |
| Applicable I/O Card |
TC-IDK 161 |
| TC-IDX 161 |
| TC-IDJ 161 |
| TC-IDD 321 |
| TC-ODD 321 |
| TC-IAH 161 |
| Cable Length |
5 m |
| 50X0.14 [PVC] |
| UL AWM |
2464/1061 |
| Bits |
50 |
| Shielding |
None |
| Cable Type |
50X0.14 [PVC] |
| Wire Model |
Circular System Cable |
| wire structure signal line |
7x 0.16mm |
| AWG, signal wire |
26 |
| Wire Cross Section |
50x 0.14 mm² |
| wire diameter, including insulation |
1 mm ± 0.03mm |
| Cable outer diameter |
10.30mm ± 0.4mm |
| outer sheath, material |
semi-rigid PVC |
| outer sheath, color |
Grey |
| Wire Material |
tinned copper stranded wire |
| Cable resistance |
≤ 145 Ω/km (20 °C) |
| insulation resistance |
≥ 20 MΩ*km (20 °C) |
| minimum bending radius, fixed mounting |
86mm |
| minimum bending radius, mobile installation |
161mm |
| Dynamic Load Capacity (Bending) |
: 5000 (radius ≥ 15x outer diameter) |
| Halogen-free |
No |
| flame retardant |
IEC 60332-1-2 (bare cable) |
| VDE 0842, Part 332-1-2 (Bare cables) |
| IEC 60332-3-22 (bare cable) |
| UL VW-1 |
| CSA FT-1 |
